DJI RONINMXM600
DJI Ronin-MX + Matrice 600 Combo

OUR PART #:  RONINMXM600

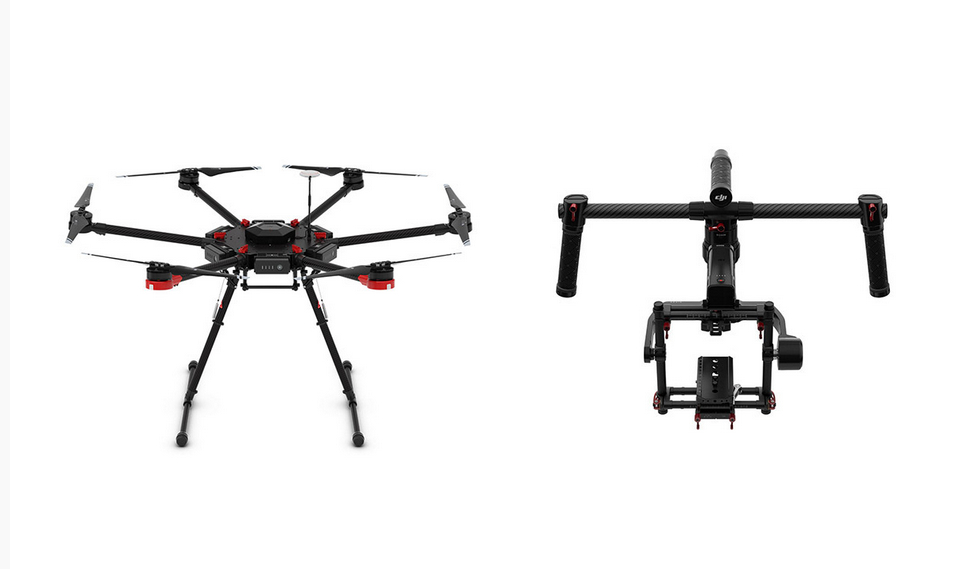

The DJI RONINMXM600 is a combo package that includes the Ronin-MX handheld gimbal and the Matrice 600 flying platform.
Learn More

Call for price! Not available online.
List Price: $5,999.00

Similar Products

The DJI RONINMXM600 is a combo package that includes the Ronin-MX handheld gimbal and the Matrice 600 flying platform.

DJI Ronin-MX Features:

  • Engineered for professionals
  • Powerful and accurate
  • Freedom to move
  • Wireless control and transmission
  • Comprehensive app control

DJI Matrices 600 Features:

  • Total integration
  • Smart flight safety
  • Extended flight time and transmission range
  • Professional HD transmission
  • Powerful app control
  • Open to development

DJI Ronin-MX Specifcations:

  • General:
    • Operation Modes:
      • Underslung Mode
      • Upright Mode
      • Briefcase Mode
      • Aerial Mode
      • Jib or Wirecam Mode
    • Built-in, independent IMU module
    • DJI Specialized Gimbal Drive Motors with Encoders
    • Bluetooth Module
    • USB Connection
    • 2.4GHz Receiver
    • Temperature Sensor
    • DJI Advanced 32-Bit DSP Processor
    • D-Bus Receiver Supported
  • Mechanical & Electrical Characteristics:
    • Working Current:
      • Static current: 300mA (@16V)
      • Dynamic current: 600mA (@16V)
      • Locked motor current: Max 10A (@16V)
    • Operating Temperature: 5° F ~ 120° F (-15° C ~ 50° C)
    • Weight:
      • Including handle bar: 6.11 lb (2.77 kg)
      • Including vibration absorber: 4.74 lb (2.15 kg)
    • Gimbal Dimensions:
      • Excluding handle bar (WxDxH): 280 x 370 x 340 mm
      • Including handle bar (WxDxH): 560 x 370 x 440 mm
  • Peripheral:
    • Camera Tray Dimensions:
      • Maximum depth from the center of gravity on camera base plate: 120mm
      • Maximum height measured from top of camera base plate: 130mm
      • Maximum width: 160mm
    • Accessory Power Connections: 12V Regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1
    • GCU Input Power: 4S Ronin-M Battery
    • Connections: 2.4GHz Remote Controller, Bluetooth 4.0, USB 2.0
    • PC Assistant Software Requirements: Windows XP or above; Mac OS X 10.9 or above
    • Mobile Assistant Software Requirements: iOS 7.1 or above; Android 4.3 or above
  • Working Performance:
    • Load Weight (Reference Value): 10 lb (4.5 kg)
    • Angular Vibration Range: ± 0.02°
    • Maximum Controlled Rotation Speed:
      • Pan axis: 200°/s
      • Tilt axis: 100°/s
      • Roll axis: 30°/s
    • Mechanical Endpoint Range:
      • Pan axis control: 360°
      • Tilt axis control: +270° to -150°
      • Roll axis control: ± 110°
    • Controlled Rotation Range:
      • Pan axis control: 360°
      • Tilt axis control: +45° to -135°
      • Roll axis control: ± 25°

DJI Matrices 600 Specifications:

  • Structure:
    • Diagonal Wheelbase: 1133 mm
    • Aircraft Dimensions:
      • 1668 mm x 1518 mm x 759 mm (Propellers, frame arms and GPS mount unfolded)
      • 640 mm x 582 mm x 623 mm (Frame arms and GPS mount folded)
    • Package Dimensions: 620 mm x 320 mm x 505 mm
    • Intelligent Flight Battery Quantity: 6
    • Weight (with six TB47S batteries): 9.1 kg
    • Weight (with six TB48S batteries): 9.6 kg
    • Max Takeoff Weight: 15.1 kg
  • Propulsion System:
    • Motor Model: DJI 6010
    • Propeller Model: DJI 2170
  • Other:
    • Supported DJI Gimbals: Zenmuse X3; Zenmuse X5 series; Zenmuse XT; Ronin-MX; Zenmuse Z15 series HD gimbals: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4
    • Retractable Landing Gear: Standard
    • Operating Temperature: 14° to 104° F (-10° to 40° C)
  • Charger:
    • Model: A14-100P1A
    • Voltage Output: 26.3 V
    • Power Rating: 100 W
  • Battery (Optional):
    • Model: TB48S
    • Capacity: 5700 mAh
    • Voltage: 22.8 V
    • Type: LiPo 6S
    • Energy: 129.96 Wh
    • Net Weight: 680 g
    • Operating Temperature: 14° to 104° F (-10° to 40° C)
    • Storage Temperature:
      • Less than 3 months: -4° to 113° F (-20° to 45° C)
      • More than 3 months: 72° to 82° F (22° to 28° C)
    • Charge Temperature: 41° to 104° F (5° to 40° C)
    • Max Charging Power: 180 W
  • Performance:
    • Hovering Accuracy (P-Mode, with GPS): Vertical: ±0.5 m, Horizontal: ±1.5 m
    • Max Angular Velocity: Pitch: 300°/s, Yaw: 150°/s
    • Max Pitch Angle: 25°
    • Max Speed of Ascent: 5 m/s
    • Max Speed of Descent: 3 m/s
    • Max Wind Resistance: 8 m/s
    • Max Flight Altitude above Sea Level: 2500 m
    • Max Speed: 18 m/s (No wind)
    • Hovering Time (with six TB47S batteries)*: No payload: 35 min, 6 kg payload: 16 min
    • Hovering Time (with six TB48S batteries)*: No payload: 40 min, 5.5 kg payload: 18 min
    • * The hovering time is based on flying at 10 m above sea level in a no-wind environment and landing with 10% battery level
  • Flight Control System: Model A3
  • Remote Controller:
    • Operating Frequency:
      • 920.6 MHz to 928 MHz (Japan)
      • 5.725 GHz to 5.825 GHz
      • 2.400 GHz to 2.483 GHz
    • Max Transmission Distance (unobstructed, free of interference):
      • FCC Compliant: 3.1 miles (5 km)
      • CE Compliant: 2.1 miles (3.5 km)
    • EIRP:
      • 10 dBm @ 900 M/li>
      • 13 dBm @ 5.8 G
      • 20 dBm @ 2.4 G
    • Video Output Port: HDMI, SDI, USB
    • Dual Users Capability: Master-and-Slave control
    • Mobile Device Holder: Supports smartphones and tablets
    • Output Power: 9 W
    • Operating Temperature: 14° to 104° F (-10° to 40° C)
    • Storage Temperature:
      • Less than 3 months: -4° to 113° F (-20° to 45° C)
      • More than 3 months: 72° to 82° F (22° to 28° C)
    • Charge Temperature: 32° to 104° F (0° to 40° C)
    • Built-in Battery: 6000 mAh, 2S LiPo
    • Max Tablet Width: 170 mm
  • Battery (Standard):
    • Model: TB47S
    • Capacity: 4500 mAh
    • Voltage: 22.2 V
    • Type: LiPo 6S
    • Energy: 99.9 Wh
    • Net Weight: 595 g
    • Operating Temperature: 14° to 104° F (-10° to 40° C)
    • Storage Temperature:
      • Less than 3 months: -4° to 113° F (-20° to 45° C)
      • More than 3 months: 72° to 82° F (22° to 28° C)
    • Charge Temperature: 41° to 104° F (5° to 40° C)
    • Max Charging Power: 180 W
