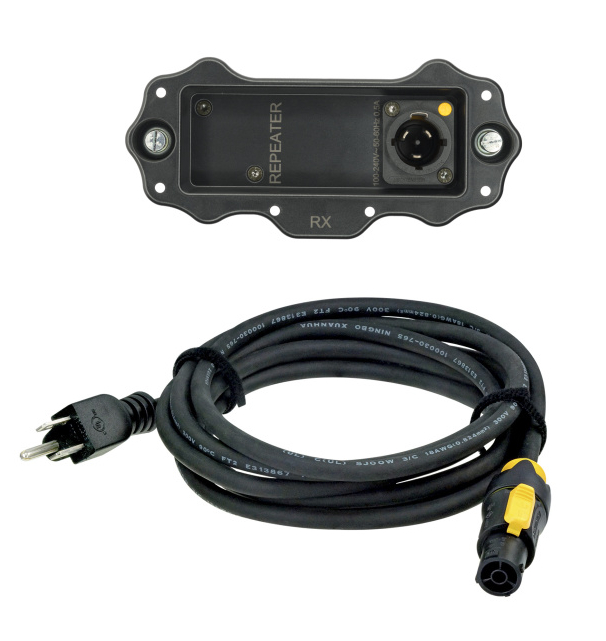

Neutrik NXP-RM-RP
XIRIUM PRO US Receiver RX Repeater Module with NKXPF-5-15-3

OUR PART #:  NXPRMRP

The repeater can be used to double the system range and overcome walls, corners, or other obstacles.
Learn More
Our Price: $390.00
List Price: $394.00
Write the first review.
Neutrik NXP-RM-RP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The repeater can be used to double the system range and overcome walls, corners, or other obstacles.

Neutrik NXP-RM-RP Specifications:

  • GENERAL SPECIFICATIONS
    • Radio frequency carrier range: IEEE 802.11a, UNII-1 band from 5200 MHz to 5250 MHz (channels 40-48) and UNII-3 band from 5725 MHz to 5825 MHz (channels 149-165), license-free
    • Data protocol: Proprietary (DiWA technology)
    • Transmit power Conducted 26 dBm / 32 dBm (with 6 dBi antenna) / 35 dBm (with 9 dBi antenna), FCC compliant
    • Range: Up to 1000 m point to point (LOS), longer range depending on obstacles, reflexions, interferences, XROC mode
  • AUDIO PERFORMANCE (ANALOG TO ANALOG PER WIRELESS LINK)
    • THD + Noise (TX Gain = min.): < 0.01 % @ 1 kHz, 4 dBu / < 0.05 % @ 20 Hz – 10 kHz, 4 dBu
    • Frequency response: +0.5 dB / -1.5 dB @ 20 Hz – 20 kHz ref. 1 kHz
    • Dynamic range: > 105 dB @ 1 kHz, A-weighted
    • Crosstalk: < -80 dB @ 20 kHz
    • Number of audio channels @ 24 mbps: 2
    • Number of audio channels @ 6 mbps: 1 (XROC mode)
    • Number of receivers: Unlimited number of RX clients
    • Converter resolution (ADC & DAC): 24 bit
    • Sampling rate: 48 kHz
    • Latency (Delay): 3.6 msec (analog to analog)
    • Transmission method: Compression-free, no reduction of converted data
    • Operating temperature: 32°F to +122°F / 0°C to +50°C
    • Storage temperature: -4° F to +176° F / -20 °C to +80 °C
  • ADDITIONAL DIGITAL AUDIO INTERFACES
    • AES/EBU: 24-bit / 48 kHz according to AES3-2003
    • Dante AoE (Audio over Ethernet): Proprietary protocol by Audinate®
  • RX Specific Characteristics
    • Antenna 5-6GHz - Audio Transmission: Omni-directional, 9dBi, 25° Elevation and 360° Azimuth, N-connector male (direct mount)
    • Antenna 2.4GHz - Control Data Transm.: 1/2 wave dipole with SMA female connectors
    • Number of audio channels: 2
  • ANALOG OUTPUT SPECS
    • Output Type - Line Output (balanced)
    • Indicators: LEDs: Power ON / Start Up / Low Battery Status / Audio Delay / Linking Process / Audio Reception
    • Controls: Power ON / Linking Process / Audio Delay
    • Power Supply: Mains input over powerCON TRUE1 (100-240 VAC 50/60 Hz) or internal battery (typical battery runtime 10 hours, depending on type of module, transmission power settings, XROC mode, number of charging cycles and operating temperature)
