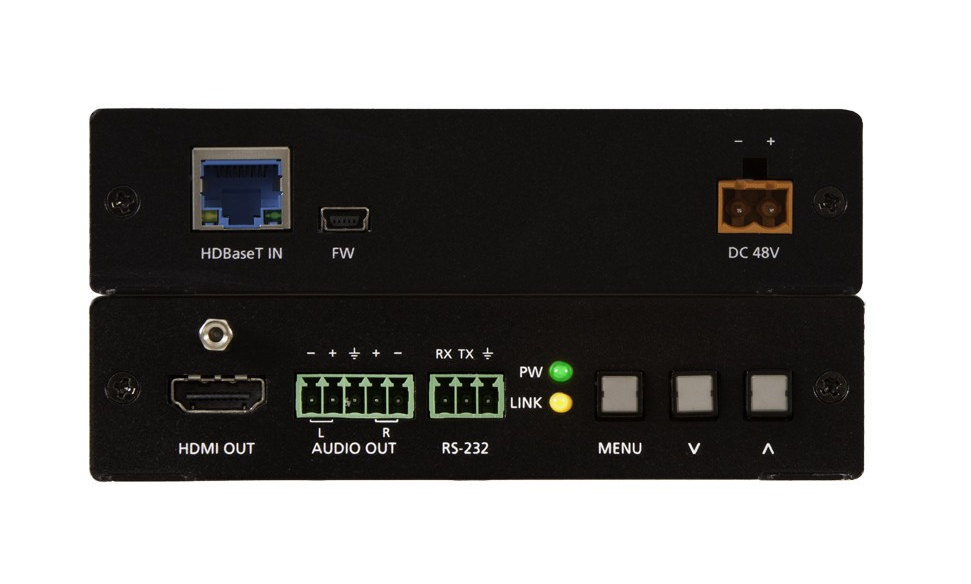

Atlona Technologies AT-HDVS-150-RX
HDBaseT Scaler with HDMI and Analog Audio Outputs


The Atlona AT-HDVS-150-RX is an HDBaseT™ scaler receiver for HDMI transmission over category cable.
Learn More

Call for price! Not available online.

Related Products

The Atlona AT-HDVS-150-RX is an HDBaseT™ scaler receiver for HDMI transmission over category cable. It receives AV signals up to 1080p/60Hz or 1920×1200 video with embedded multi-channel audio and control signals at distances up to 230 feet (70 meters). Features include balanced analog audio de-embedding, RS-232 control, and Power over Ethernet for compatible transmitting devices. The receiver offers advanced scaling capabilities including image adjustment capability and an Auto-set feature for matching incoming signals to the display’s native resolution. Designed for use with the AT-HDVS-150-TX transmitter, the transmitter/receiver pair enables auto display on/off, auto-switching, third-party control, and other features. The built-in scaler works with matrix switchers to optimize source signals with different resolutions to a display’s native resolution. The AT-HDVS-RX is ideal for long distance transmission and display control in corporate or educational settings using analog and digital sources.
The HDVS-150 maintains all capabilities the HDVS series is known for and adds industry-standard Power over Ethernet for full HDBaseT certification. The HDVS-150 Series is a simple audio visual system with auto-switching for HDMI and VGA inputs, projector on/off control, analog audio de-embedding, volume control, and a scaler. Much more than an extender system, it provides a complete system for small spaces like huddle rooms and teaching spaces with two or three sources.

Atlona AT-HDVS-150-RX Features:

  • Long distance HDMI extension
  • Scaled HDMI output and input resolution control
  • Power over Ethernet for AT-HDVS-150-TX
  • Audio de-embedding
  • RS-232 scaler control
  • RS-232 display control
  • Field updatable firmware

Atlona AT-HDVS-150-RX Specifications:

  • Resolution:
    • In: 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@25/29/30/50/59.94/60Hz, 576p, 576i, 480p, 480i, 1920×1200RB, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1280×1024, 1280×960, 1280×800, 1280×768, 1152×854, 1024×768, 800×600, 720×400, 640×480
    • Out: 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@25/29/30/50/59.94/60Hz
      1920×1200, 1680×1050, 1680×1200, 1400×1050, 1366×768, 1280×1024, 1280×800, 1024×768
    • Color Space: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2
    • Color Depth: 8-bit, 10-bit, 12-bit
  • Audio:
    • Analog: PCM 2Ch (De-embedded)
    • HDMI OUT & HDBaseT IN: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Bit Rate: up to 24-bit
  • Distance:
    • CAT5e/6: up to 197 feet (60 meters)
    • CAT6a/7: up to 230 feet (70 meters)
    • HDMI IN/OUT: up to 30 feet (10 meters)
  • Signal:
    • Bandwidth: 6.75 Gbps
    • CEC: No
    • HDCP: Compliant – 1.4
  • Temperature:
    • Operating: 32°F to 104°F (0°C to 40°C)
    • Storage: -4°F to 140°F (-20°C to 60°C)
    • Humidity: 20 to 90% non-condensing
  • Power:
    • Consumption: 15W (varies per paried transmitter)
    • Supply:
      • Input: AC100-240V ~ 50/60Hz
      • Output: DC 24V/2.7A
  • Dimension (HxWxD): 1.18" x 4.8" x 4.92" (30 x 122 x 125 mm)
  • Weight: 0.67 lbs (0.31 kg)
  • Certification:
    • Unit: CE, FCC
    • Power Supply: CE, FCC, Level VI, RoHS, cULus, RCM, CCC
