Product Overview

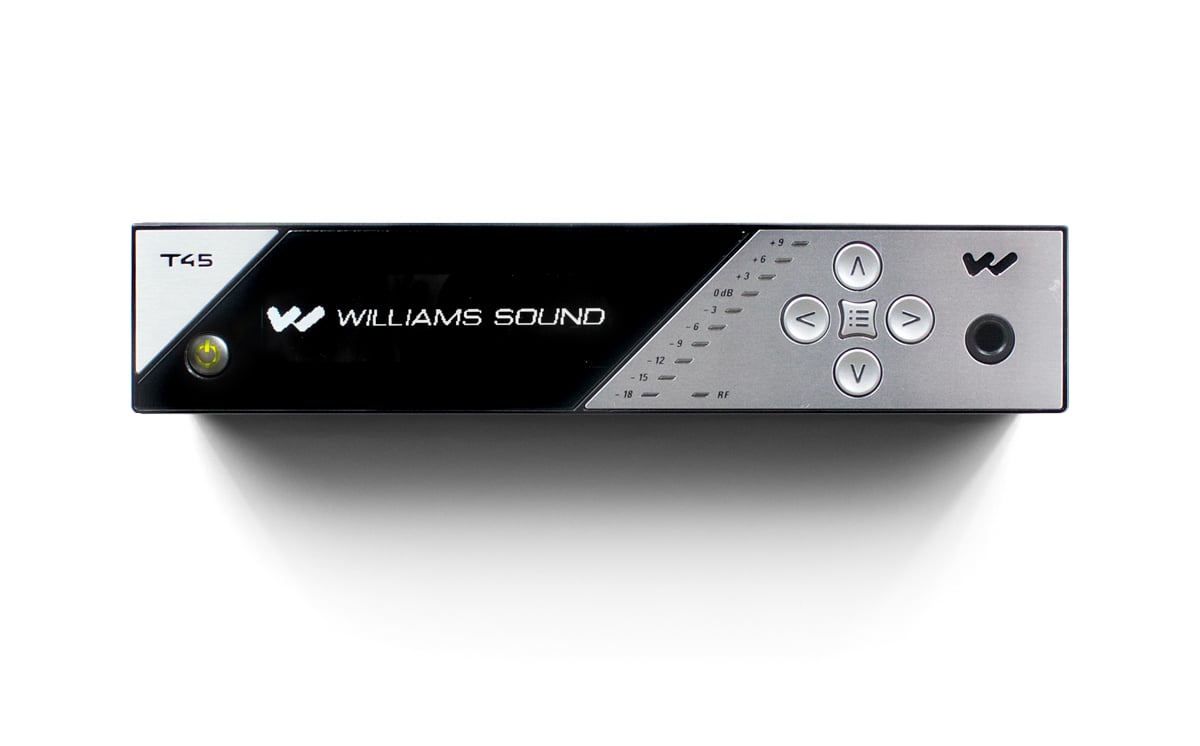

Similar to the PPA T45 NET (sold separately), the Personal PA® PPA T45 NET D from Williams Sound is a cutting-edge assistive listening transmitter that provides multiple digital audio input options, plus an OLED high-resolution screen with easy-to-manage menu navigation, then adds another level of functionality, offering Dante™ compatibility. It features 3 powerful microprocessors and the same high-quality audio and RF performance you can expect from Williams Sound. Its technology takes the guesswork out of complex audio installations. Just simply select among the choices from voice, music, or hearing assistance in the application preset menu, and this transmitter will quickly configure itself. With a coverage range of up to 1000ft, it's ideal for use in large venues where superior coverage is of vital importance.
PPA T45 NET D Includes
- (1) PPA T45 transmitter
- (1) ANT 025 antenna
- (1) TFP 048 power supply
- (1) WLC 004 Main Power Cord (U.S.)
- (1) WCA 013 RCA Audio Cable, 3ft.
Features
- Dante™ input
- Network Control Capability via ethernet (10-base-T) using any web browser
- Multiple Digital Audio Inputs (AES, SPDIF) provide direct connection to digital signal sources
- OLED high-resolution screen with simplified menu navigation, offers comprehensive and convenient access to full system functions
- DSP Audio Processing
- Sleek and stylish design
- Simple set-up and operation
- 1000’ operating range
- OLED display, push-button menus
- Microprocessor controlled
- Adjustable RF power output
- Combo XLR, ¼" TRS inputs
- Lifetime PLUS Limited Warranty (90 days on accessories)
Specifications
- Dimensions: 8.45” W x 8.25” D x 1.72”H (21.5 cm x 21 cm x 4.4 cm)
- Weight:
- Transmitter: 3.0 lbs. (1.36 kg)
- Shipping Weight: 4.50 lbs. (2.04 kg) (Transmitter, Power Supply, Antenna and packaging)
- Color: Black/Silver with black legends on the front, white legends on the back
- Rack Mount
- Standard 19” Rack, 1U high, 1/2U wide
- 1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
- Power Supply:
- Desktop Style Transformer (TFP 048)
- Input: 100-240 VAC, 50/60 Hz. IEC Line Cord
- Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
- Approvals: UL, CUL, Energy Star V, CSA listed
- Power ON Indicator: Push On/Push Off latching power button, backlit green indicates power ON, backlight off indicates power OFF, fading from bright to dark indicates Sleep Mode
- Temperature Range:
- Operating: +32 °F to +104 °F (0 °C to 40 °C)
- Storage: -4 °F to +158 °F (-20 °C to 70 °C)
- Menu Settings:
- Audio Presets (Music, Voice, Hearing Assist, Custom), Frequency/Channel selection, Frequency/Channel mode, Audio Input Source (Microphone, Line, Phantom, Digital AES/EB, Digital S/PDIF), High Pass Filter, Low Pass Filter, Compression, RF Output Power, Screen Saver Delay, Test Tone (400 Hz), Headphone Volume, Headphone Source, Ethernet/Network Settings (PPA T45 NET and PPA T45 NET D).
- Note: further information can be found within the items located under the "Documentation" tab above.
