Whirlwind THS5 Dual Input Talkback Headphone Box

OUR PART #: THS5 MFR #: THS5

Copied to clipboard

Whrilwind's THS5 has both main and talkback microphone outputs. A latching mic on/off switch connects signal to the mic output. ...Read more

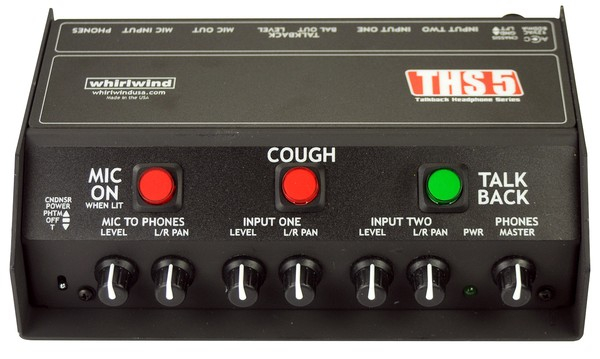

Whirlwind THS5 Dual Input Talkback Headphone Box Image 1
Whirlwind THS5 Dual Input Talkback Headphone Box
Our Price: $611.00
List Price: $962.06
You save 36%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Whrilwind's THS5 has both main and talkback microphone outputs. A latching mic on/off switch connects signal to the mic output. The red light is illuminated when the mic out is live and is turned off by the cough and talkback switches. 36-Volt phantom power is available if condenser mics are used. Onboard phantom power allows seamless switching when talkback is activated. The switch to turn phantom power on and off is recessed to avoid accidental turn off. A momentary "Cough" switch silences both the mic out and the talkbabk out when depressed. There is also a momentary Talkback switch that connects the mic to the talkback output and mutes the mic out, and illuminates green when pressed. The announcer's microphone is sent through a preamp and line driver that deliver signal to the talkback output at line level. There is a level control for fine adjustment of the audio sent down the talkback line.

There are two balanced line-level headphone inputs on individual female XLR connectors. Separate front panel volume controls and pan pots adjust the level to the left and right ears. The THS 5 also has a third set of volume and pan pots that add the announcer's microphone to the headphone mix. A master headphone volume pot varies the overall mix in both ears simultaneously.

Power is supplied by a 12 VAC power adapter, model # PS12AC1A (included).

Features

  • Two balanced line level inputs with individual volume and pan controls
  • Announcer mic mix to headphones with volume and pan controls
  • Master headphone volume adjusts overall mix
  • Passive Mic Out for on-air reliability with dynamic mics
  • Active line level Talkback Out with level adjust
  • Mic On, Cough and Talkback switches for control
  • ¼” TRS or 3.5mm headphone jacks
  • PS12AC1A power adapter included

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download
