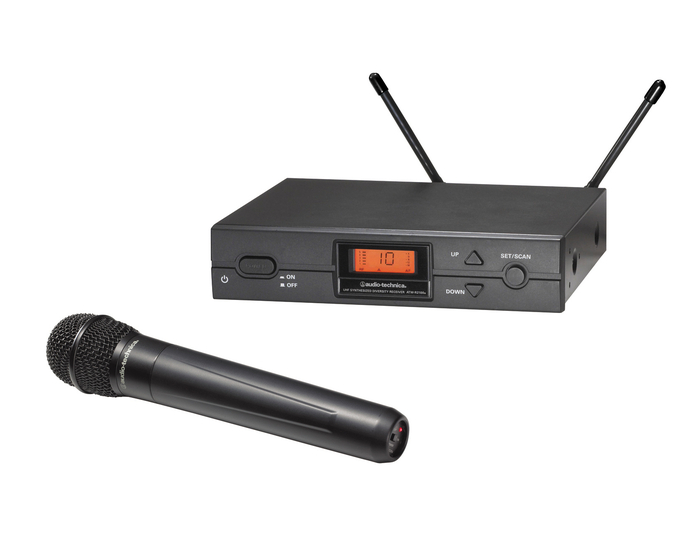

Audio-Technica ATW-2120BI 2000 Series Wireless Handheld System, I Band Image 1
Audio-Technica ATW-2120BI 2000 Series Wireless Handheld System, I Band Image 2
Audio-Technica ATW-2120BI 2000 Series Wireless Handheld System, I Band Image 3
Audio-Technica ATW-2120BI 2000 Series Wireless Handheld System, I Band
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Audio-Technica ATW-2120b is a wireless handheld microphone system that is part of their 2000 Series of True Diversity UHF Wireless Systems. It operates in the "I" frequency band, 487.125 - 506.500mHz, and consists of the ATW-R2100b diversity receiver matched with the ATW-T220a cardioid handheld microphone/transmitter.

The 2000 Series UHF Wireless Systems are designed to suit a variety of applications. This series offers all the advantages of a high-quality, professional wireless system at an extremely affordable price. It features switchable antenna power with 10 selectable channels and True Diversity UHF wireless technology with automatic frequency scanning. At the touch of a button, the automatic frequency scanning function automatically determines and sets the best available operation frequency. Any of the 10 channels may be used together without any frequency coordination or group selection issues. The series also incorporates Audio-Technica's Tone Lock™ squelch, along with an easy-to-read LCD information display. The optional ATW-CHG2 two-bay recharging station provides power to recharge NiMH batteries in two ATW-T220a handheld transmitters and/or ATW-T210a body-pack transmitters in any combination (all sold separately).

Applications

  • Live performance
  • Fixed installation
  • Public address
  • A/V Rental houses
  • Houses of worship

Includes

  • ATW-R2100b Diversity Receiver, supplied with:
    • (2) Flexible UHF Antennas
    • (1) AC Adapter for Receiver
    • (1) Set of Rack-Mount Brackets
  • ATW-T220a Cardioid Handheld Mic/Transmitter
  • AT8456a Quiet-Flex™ Stand Clamp

Features

  • Operates in the "I" frequency band, 487.125 - 506.500MHz
  • Serious advances in affordable professional wireless
  • Clear sound quality and rock-solid, dependable performance
  • 10 compatible user-switchable channels with Automatic Frequency Scanning
  • Antenna power available for powered antennas and other in-line RF devices
  • True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
  • Tone Lock™ tone squelch system fights interference
  • Rugged metal half-rack receiver with soft-touch controls and LCD display
  • Balanced XLR and unbalanced ¼" output jacks enable use with a wide variety of audio gear
  • Switchable transmitter power output with high and low settings offered
  • Includes rack-mount kit and detachable UHF antennas
  • Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
  • ATW-T220a Handheld Microphone/Transmitter features PRO 41 Capsule for maximum feedback rejection and consistent sound
  • ATW-CHG2 charger available for ATW-T220a transmitter (sold separately)

Specifications

  • Overall System:
    • Operating Frequencies: Band I: 487.125 - 506.500MHz
    • Number of Channels: 10 total
    • Modulation Mode: FM
    • Maximum Deviation: +/-40kHz
    • Dynamic Range: > 110dB (A-weighted), typical
    • Total Harmonic Distortion: < 1% (@ 1kHz, +/-20kHz deviation)
    • Operating Range: 300' (100m), typical
    • Operating Temperature Range: 41°F - 113°F (5°C to 45°C)
    • Frequency Response: 100Hz - 15kHz (+1dB, -3dB)
  • ATW-R2100b Receiver:
    • Receiving System: True diversity
    • Image Rejection: 60dB nominal, 55dB minimum
    • RF Sensitivity: 20dBuV @ 60 dB S/N ratio (50Ω termination)
    • Antenna Input: BNC-type, 50Ω
    • Bias voltage: 12VDC, 60mA, each
    • Power Requirements: 12 - 18VDC, 500mA
    • Dimensions (W x D x H, not including BNC connectors or feet): 8.27" x 6.39" x 1.73" (210 x 162.2 x 44mm)
    • Net Weight, without accessories: 35.3oz. (1.0kg)
    • Maximum Output Level:
      • XLR, balanced: +9dBV
      • ¼" (6.3mm), unbalanced: +4dBV
    • Balanced Audio Output Attenuator: 2-position switch: 0 / -12dB
  • ATW-T220a Mic/Transmitter:
    • Operating Frequency: UHF Band I: 487.125 - 506.500MHz
    • Number of Channels: 10 total
    • Modulation Mode: FM
    • Maximum Deviation: +/-40kHz
    • Dynamic Range: > 110dB (A-weighted), typical
    • Total Harmonic Distortion: < 1% (@ 1kHz, +/-20kHz deviation)
    • Operating Range: 300ft typical (open-range environment with no interfering signals)
    • Operating Temperature Range: 41ºF to 113ºF (battery and LCD performance may be reduced at very low temperatures)
    • Frequency Response: 100Hz - 15kHz (+1dB, -3dB)
    • RF Power Output: High: 30mW, Low: 10mW (switchable), at 50Ω
    • Spurious Emissions: following federal and national guidelines
    • Microphone Element: Dynamic cardioid
    • Batteries: Two 1.5V AA (sold separately)
    • Battery Life: Depending on battery type and use pattern:
      • High: 7 hours (alkaline)
      • Low: 9 hours (alkaline)
    • Dimensions (L x Dia): 9.13" x 1.89"
    • Net Weight: 8.9oz., without batteries
  • Note: further information can be found within the items located under the "Documentation" tab above.
