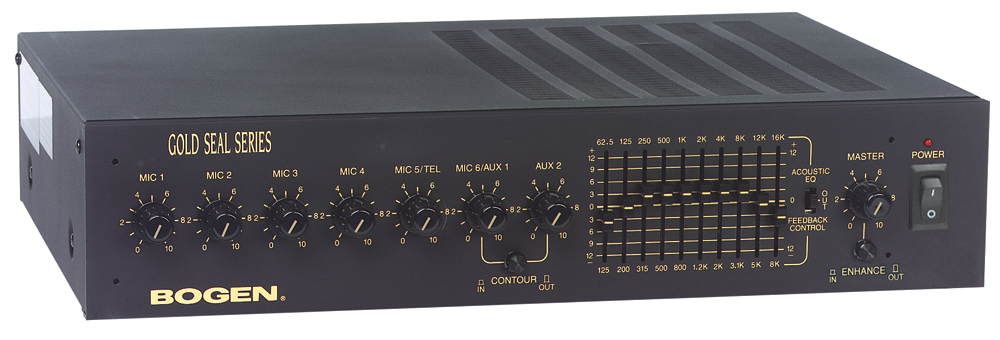

Bogen Communications GS35D
35 Watt Mixer/Amplifier

OUR PART #:  GS35D

The Bogen Communications GS35D is a 35 Watt mixer/amplifier.
Learn More
Our Price: $351.95
List Price: $413.63
You save 15%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Bogen Communications GS35D
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Bogen Communications GS35D is a 35 Watt mixer/amplifier.

The Gold Seal Series amplifiers are designed to meet the rigorous requirements of today’s sophisticated sound systems. They combine unique and useable features with ultra high reliability and professional performance.

The Bogen Gold Seal Series amplifiers are an extraordinary addition to Bogen's line of quality audio amplifiers. Designed with the sound contractor in mind, they provide unparalleled flexibility and versatility, without the need for add-on modules.

In addition to their extensive flexibility, the Gold Seal Series amplifiers provide a combination of features not found in other commercial amplifiers. The Gold Seal Series amplifiers also offer Class D Amplification for increased operating efficiency.

Bogen Communications GS35D Features:

  • 4 dedicated MIC inputs
  • 1 selectable MIC/TEL input
  • 1 selectable MIC/AUX input
  • 1 dedicated AUX input
  • 4-ohm, 8-ohm, 25V, 25VCT and 70V transformer-coupledoutputs
  • Rack mountable – 2RU package
  • Dual-function, 10-band graphic equalizer (Acoustic EQor Feedback Control modes)
  • True loudness contour function
  • Audio Enhancement circuit for improved intelligibility
  • Switchable phantom power supply (13V DC)
  • Variable AUX input muting
  • Remote master volume control capability
  • Automatic level control
  • Input muting via contact on inputs
  • Voice activated AUX muting on TEL input
  • AUX fade back after TEL pagePre-amp Out/Power Amp In“insert” connections
  • Booster amp output connection
  • Tape output connection
  • Low-cut filter for MIC channels
  • Listed to UL Standard 60065 for U.S. and Canada

Bogen Communications GS35D Specifications:

  • Power Rating: 35 watts
  • Frequency Response: Transformer Output: 65 Hz to 20kHz, +0/-2 dB @ -2 dB
  • Distortion: Transformer Output: 0.5% (max.), 0.3%(typ.), 65 Hz to 20 kHz
  • Signal-to-Noise Ratio: Fundamental: -70 dB or better;AUX 1 & 2: -70 dB; Tel: -70 dB or better @ 600 ohms
    • MIC 1 through MIC 6: -60 dB or better @ 200 ohms
  • Inputs/Outputs:
    • MIC: 6 Lo-Z balanced via 4 XLR connectors and 2 screw terminals
    • Sensitivity: 11mV (200 ohms)
    • AUX: 2 Hi-Z RCA jacks. Sensitivity: 0.085V (10k ohms)
    • Telephone: Screw terminals. Sensitivity: 0.07V (600 ohms)
    • Output to Power Amp: 5V @ Rated Output via RCA jack
    • Power In/Pre Out: Input 1V/Output 1V via RCA jacks
    • WMT1A Output: 25V @ Rated Output via RCA jack
    • Tape Output: 700 mV @ Rated Output via RCA jack
  • Output Impedance: All models: balanced or unbalanced4-ohm, 8-ohm, 25V, 25VCT, 70V
  • Output Regulation: Better than 2 dB from no load tofull load
  • AC Input Voltage: 120V~ 60 Hz
  • AC Current: GS35D: 0.8A; GS60D: 1.3A; GS100D: 2.1A;GS150D: 2.5A; GS250D: 4.0A; GS500D: 6.5A
  • Thermal Emissions (Full Power): GS35D: 78.5 BTU/HR.;GS60D: 119.5 BTU/HR.; GS100D: 191.3 BTU/HR.; GS150D: 136.6 BTU/HR.; GS250D:239.1 BTU/HR.; GS500D: 467.9 BTU/HR.
  • Variable Mute Range: -60, -21, -10, 0 dB (AUX1 &2)
  • ALC: Distortion: less than 0.5%; Compression: 25 dB(TEL)
  • VOX Threshold: TEL Input 20 mV (VOX control max.,clock-wise position)
  • MIC Precedence: Via terminal strip. -60 dB: MIC 1, 2,3, 5/TEL, 6/AUX, AUX 2
  • Power Input/Pre Output: Input 1V/Output 1V via RCA jacks
  • Phantom Power: 13V DC
  • Lo-Cut: 3 dB @ 100 Hz
  • Loudness Contour: +8 dB @ 100 Hz, +4 dB @ 10 kHz (AUX1 & 2 control at 1/4 clock-wise position)
  • Overload Protection: Electronic with automatic reset
  • Thermal Protection: Thermistor attached to heat sink
  • Dimensions: (WxHxD) 16.5" x 3.5" x 13.5"
  • Shipping Weight: 13.5 lbs
