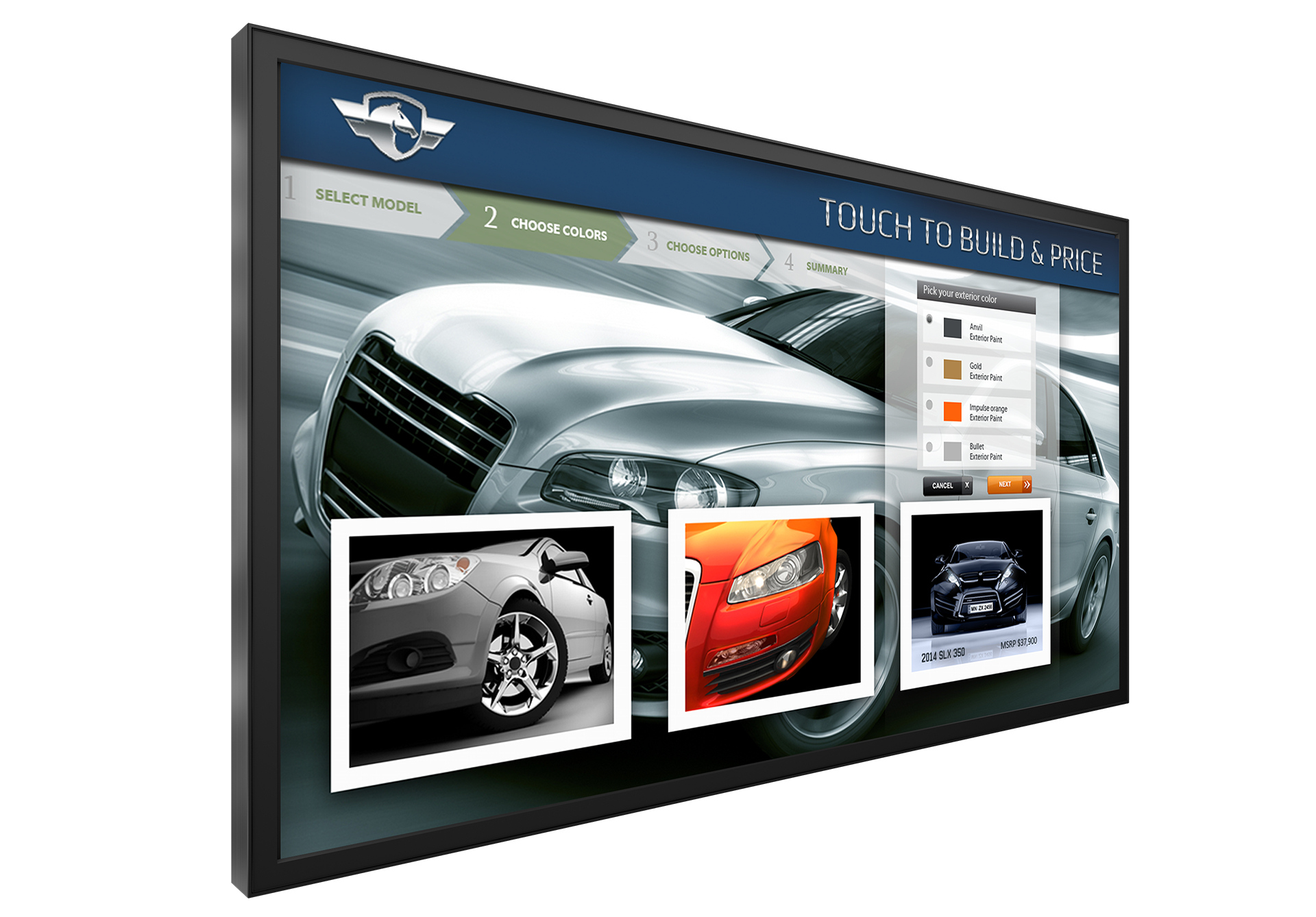

Planar UR8451-LX
84" 4k LED Touch Panel

OUR PART #  UR8451-LX

Call for price! Not available online.
List Price: $13,900.00


The Planar® UltraRes™ UR8451-LX Touch combines a multi-touch experience with stunning 4K image clarity. With 32 simultaneous touch points, the Planar UltraRes UR8451-LX Touch makes it easy for multiple users to collaborate and interact at the same time. The Planar UltraRes Touch is a fully integrated solution, delivering an elegant design and more accurate multi-touch experience. Planar UltraRes UR8451-LX Touch combines Planar® ERO™ (Extended Ruggedness and Optics™) technology with Corning® Gorilla® Glass, creating a highly durable 4K display.

Planar UR8451-LX Features:

  • 84" Ultra HD resolution (3840 x 2160) interactive LCD display
  • Features 32 points of multi-touch, multi-user technology
  • Integrated design – no bulky overlay
  • Features Planar ERO technology for increased ruggedness and optics
  • Optional Planar Profile Mounting System enables the industry’s thinnest mounted depth

Planar UR8451-LX Specifications:

  • Planar Part Number: 997-8013-00
  • UPC: 8 10689 00257 4
  • Product Name: UR8451-LX-ERO-T
  • Display Resolution: Ultra HD (3840 x 2160)
  • Screen Size: 84" (diagonal)
  • Aspect Ratio: 16:9
  • Display Active Area: 73.2” (1860mm) x 41.2” (1046mm)
  • Cabinet Dimensions (WxHxD): 76.4" x 44.6" x 4.1" (1941mm x 1133mm x 104mm)
  • Dimensions, including wall mount: 76.4" x 44.6" x 4.1" (1941mm x 1133mm x 104mm)
  • Bezel Width: 1.58" (40.1mm) left/right; 1.70" (43.1mm) top/bottom
  • Protective Glass: ERO optically-bonded glass technology featuring Corning Gorilla Glass, 2mm AG
  • Brightness (typ): 350 nits
  • Response Time (typ): 5 ms
  • Frame Rate: 120Hz
  • Contrast Ratio (typ): 1600:1
  • Viewing Angle (typ): 178°
  • Color Gamut: 72% NTSC
  • Display Color: >1 billion colors. Full 10 bit data path
  • Modes:
    • 3840x2160 @ 24/25/30/60Hz
    • 4x 1920x1080 @ 24/25/30/50/60Hz
    • 4x 960x2160 @ 60Hz
    • 2x 1920x2160 @ 60Hz
    • 480p, 576p, 720p @ 50/60 Hz
    • 1080p @ 24/25/30/50/60Hz
    • 1080i @ 50/60 Hz
  • Pixel Pitch: 0.485mm
  • Weight: 250 lb (113 kg)
  • Backlight: LED
  • Line Voltage: 100-240V; 50/60Hz
  • Power Consumption (typ): 360W
  • Operating Temperature:
    • 32° to 95°F (0° to +35°C) at up to 1500m
    • 32° to 86°F (0° to +30°C) at up to 3000m
  • Humidity: 20 - 85% RH (non-condensing)
  • Approvals: FCC Class A, CE, cTUVus
  • External Connections:
    • DisplayPort 1.2
    • Two HDMI 2.0 (HDCP 2.2)
    • Two HDMI 1.4
    • OPS
    • Two OPS USB 2.0
    • OPS USB 3.0
  • Audio Output: PC Line Out, S/PDIF
  • Multi-Source Views: PiP, Dual, Triple, Quad
  • Display Control: IR, RS-232, LAN, Keypad, Mobile app
  • Speakers: 10W x 2 built-in
  • Orientation: Landscape
  • Mounting: Planar Profile Mounting System or VESA: 600 x 400 mm
  • Fanless: Yes
  • HD format: 4K UHD 2160p
  • Display Technology: Edge-lit LED LCD
  • Touch Technology: IR 32 point touch
  • OS Compatibility: Windows 7, 8, 10, Vista, XP, Mac OSX and Linux
  • Options / Features: MediaPlex Plus Processing, Scheduling, Presets, Redundant power supply, TAA
    compliant
  • Warranty: 3 years Advance Exchange

Planar UR8451-LX
84" 4k LED Touch Panel

OUR PART #  UR8451-LX

Product Information:

The Planar® UltraRes™ UR8451-LX Touch combines a multi-touch experience with stunning 4K image clarity. With 32 simultaneous touch points, the Planar UltraRes UR8451-LX Touch makes it easy for multiple users to collaborate and interact at the same time. The Planar UltraRes Touch is a fully integrated solution, delivering an elegant design and more accurate multi-touch experience. Planar UltraRes UR8451-LX Touch combines Planar® ERO™ (Extended Ruggedness and Optics™) technology with Corning® Gorilla® Glass, creating a highly durable 4K display.

Planar UR8451-LX Features:

  • 84" Ultra HD resolution (3840 x 2160) interactive LCD display
  • Features 32 points of multi-touch, multi-user technology
  • Integrated design – no bulky overlay
  • Features Planar ERO technology for increased ruggedness and optics
  • Optional Planar Profile Mounting System enables the industry’s thinnest mounted depth

Planar UR8451-LX Specifications:

  • Planar Part Number: 997-8013-00
  • UPC: 8 10689 00257 4
  • Product Name: UR8451-LX-ERO-T
  • Display Resolution: Ultra HD (3840 x 2160)
  • Screen Size: 84" (diagonal)
  • Aspect Ratio: 16:9
  • Display Active Area: 73.2” (1860mm) x 41.2” (1046mm)
  • Cabinet Dimensions (WxHxD): 76.4" x 44.6" x 4.1" (1941mm x 1133mm x 104mm)
  • Dimensions, including wall mount: 76.4" x 44.6" x 4.1" (1941mm x 1133mm x 104mm)
  • Bezel Width: 1.58" (40.1mm) left/right; 1.70" (43.1mm) top/bottom
  • Protective Glass: ERO optically-bonded glass technology featuring Corning Gorilla Glass, 2mm AG
  • Brightness (typ): 350 nits
  • Response Time (typ): 5 ms
  • Frame Rate: 120Hz
  • Contrast Ratio (typ): 1600:1
  • Viewing Angle (typ): 178°
  • Color Gamut: 72% NTSC
  • Display Color: >1 billion colors. Full 10 bit data path
  • Modes:
    • 3840x2160 @ 24/25/30/60Hz
    • 4x 1920x1080 @ 24/25/30/50/60Hz
    • 4x 960x2160 @ 60Hz
    • 2x 1920x2160 @ 60Hz
    • 480p, 576p, 720p @ 50/60 Hz
    • 1080p @ 24/25/30/50/60Hz
    • 1080i @ 50/60 Hz
  • Pixel Pitch: 0.485mm
  • Weight: 250 lb (113 kg)
  • Backlight: LED
  • Line Voltage: 100-240V; 50/60Hz
  • Power Consumption (typ): 360W
  • Operating Temperature:
    • 32° to 95°F (0° to +35°C) at up to 1500m
    • 32° to 86°F (0° to +30°C) at up to 3000m
  • Humidity: 20 - 85% RH (non-condensing)
  • Approvals: FCC Class A, CE, cTUVus
  • External Connections:
    • DisplayPort 1.2
    • Two HDMI 2.0 (HDCP 2.2)
    • Two HDMI 1.4
    • OPS
    • Two OPS USB 2.0
    • OPS USB 3.0
  • Audio Output: PC Line Out, S/PDIF
  • Multi-Source Views: PiP, Dual, Triple, Quad
  • Display Control: IR, RS-232, LAN, Keypad, Mobile app
  • Speakers: 10W x 2 built-in
  • Orientation: Landscape
  • Mounting: Planar Profile Mounting System or VESA: 600 x 400 mm
  • Fanless: Yes
  • HD format: 4K UHD 2160p
  • Display Technology: Edge-lit LED LCD
  • Touch Technology: IR 32 point touch
  • OS Compatibility: Windows 7, 8, 10, Vista, XP, Mac OSX and Linux
  • Options / Features: MediaPlex Plus Processing, Scheduling, Presets, Redundant power supply, TAA
    compliant
  • Warranty: 3 years Advance Exchange
