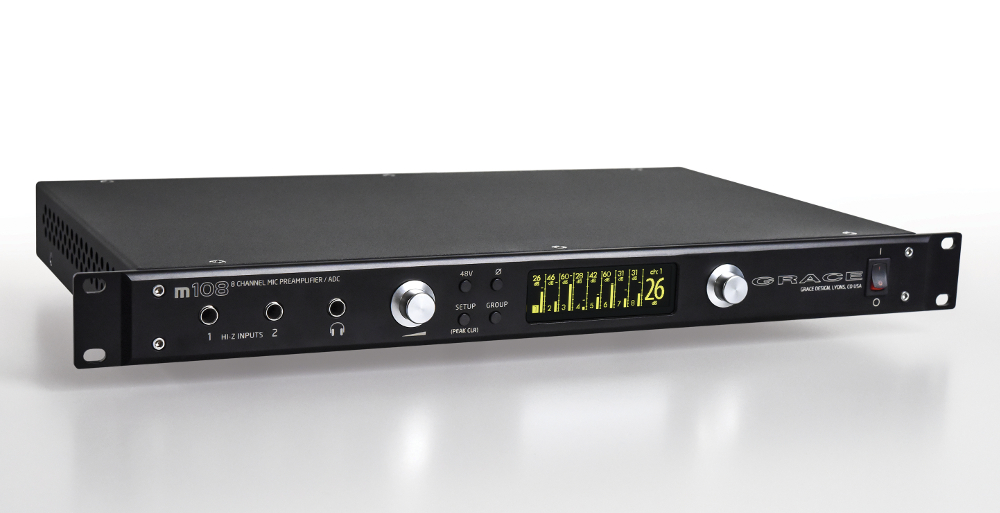

Grace Design M108
8-channel remote preamplifier

OUR PART #:  M108

The Grace Design M108 is an 8 channel remote microphone preamplifier/ADC.
Learn More
Our Price: $2,845.00
List Price: $2,995.00
You save 5%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Grace Design M108
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Grace Design M108 is an 8 channel remote microphone preamplifier/ADC.

Based on the acclaimed success of our m802 remote controlled mic preamplifier, the m108 distills the best of these achievements into a sleek, elegant 1U chassis design. Our transformerless, transipedance mic preamp design is unmatched in its ability to effortlessly resolve complex sonic waveforms, resulting in recordings of amazing clarity and depth. Integrated A/D conversion delivers digital signals to the workstation that are pure and beautiful. Latest generation s-Lock PLL ensures pristine, jitter free sample clock when clocking from external word clock or Dante clock. And an asynchronous mode USB interface provides the best possible jitter performance when connected to a computer.

A push-button rotary encoder is used for navigating and operation, with a user interface that is simple and intuitive. Dedicated push-buttons are assigned to core functions: 48V phantom power, phase reverse, channel grouping and meter peak clear. A crisp OLED screen displays complete system information, including channel gain settings, metering, peak status, and the system setup menu.

Out of the box, the m108 is ready to go as a stand alone mic preamp / ADC. With integrated serial or MIDI control, the m108 can be configured in large channel-count remote systems, with control from our existing m802 hardware remote control unit, from Protools™, the forthcoming m108 control app, or even simply over ethernet with any modern web browser. And an optional DANTE™ interface is provided for network audio configurations. The m108 control protocol is backward compatible with the m802 so you can add m108’s to an existing m802 system.

Grace Design M108 Features:

  • 8 channels of balanced analog preamp outputs
  • 8 channels of transparent, musical mic preamplier
  • Wide gain range: -8 to 74dB
  • Ribbon mic mode
  • 8 channels of 192kHz ADC outputs via AES, ADAT (4chSMUX) and USB Class 2
  • External Word clock in and out
  • Reference DAC and headphone amplier for low-latency monitoring of channel pairs or USB playback from a computer
  • Channel 1 & 2 HI-Z inputs on front panel
  • High contrast, wide viewing angle OLED display forall system parameters and setup menu
  • Combination RS 485/422 serial / MIDI ports for control from existing m802 RCU or Protools™
  • Control App (Win and Mac, coming soon) can control upto 96 channels over Ethernet
  • Simple web browser control built in, works with all modern browsers including iOS and Android
  • RJ45 Ethernet port for network control
  • Expansion slot for optional Audinate / DANTE™ networkaudio card
  • Cooling fan for reliable operation in the harshestenvironments
  • Built in 100-240VAC universal AC power supply
