Matrox C680-E2GBF
PCIe x16 Graphics Card

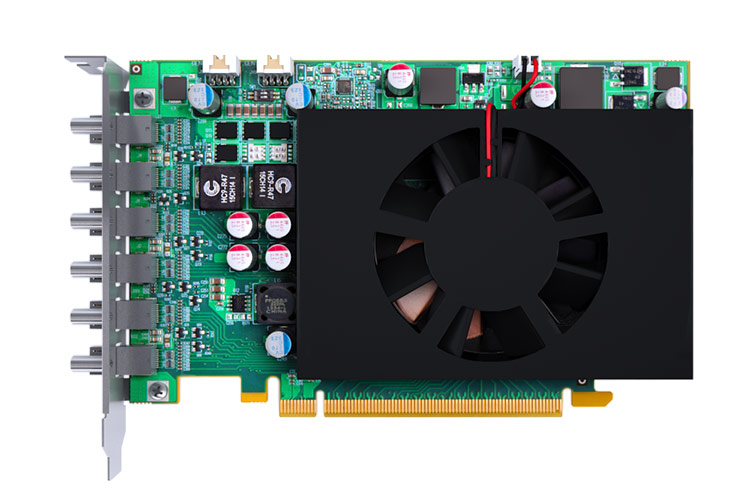

The Matrox C680 is a single-slot, PCIe® x16 graphics card that drives up to six displays or projectors at resolutions up to 4096 x 2160 per output.
Learn More
Our Price: $695.00
Write the first review.
Matrox C680-E2GBF
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Matrox C680 is a single-slot, PCIe® x16 graphics card that drives up to six displays or projectors at resolutions up to 4096 x 2160 per output. The versatile, six-monitor video card can power the latest Ultra HD/4K panels as well as enable 12-monitor configurations when combined with a second Matrox C680 board. The board-to-board framelock feature ensures synchronization of all displays to reduce tearing on digital signage and video walls. With its high reliability, outstanding performance, and advanced multi-monitor capabilities, Matrox C680 delivers the best display density for demanding commercial and critical applications including enterprise, industrial, pro A/V, digital signage, security, control rooms and more.

Matrox C680 Includes:

  • Matrox C680 graphics card
  • Quick start-up guide
  • Display drivers and Matrox PowerDesk desktop management software availablefor download from Matrox website

Matrox C680 Features:

  • Drive up to six displays or projectors
  • Supports a maximum resolution of 4096 x 2160 peroutput
  • Experience smooth video playback and graphicsperformance with 2 GB of memory
  • Minimize power consumption with an energy efficientboard design
  • Expand your desktop space with multi-board support todrive up to 12 displays from a single computer
  • Framelock two Matrox C680 cards together andsynchronize the refresh rate across all monitors to reduce tearing1
  • Simplify cabling by daisy-chaining DisplayPort™ 1.2MST-capable displays2
  • Customize your setup with the easy-to-use MatroxPowerDesk™ multi-display configuration and desktop management software
  • Configure displays independently from one another orselect stretched desktop mode to create as a single ultra-large desktop acrossmultiple displays
  • Clone content to show the same information on alldisplays
  • Select any combination of portrait or landscape andset the orientation that works best for you
  • Simplify A/V installations with advanced EDIDManagement
  • Prevent loose cabling with secure Mini DisplayPortconnectors
  • Adjust the number of overlapping pixels with EdgeOverlap to create a seamless, unified image on up to six edge blendingprojectors
  • Facilitate enterprise-wide deployments by installingMatrox PowerDesk & drivers across many systems without any userinteraction
  • Supports Microsoft® DirectX® 12, OpenGL® 4.4, andOpenCL™ 1.2 to run the latest professional applications
  • Protect your investment with Matrox long productlife-cycles
  • Compatible with Windows® 10 (32/64), Windows 8.1(32/64), Windows 7 (32/64), Windows Embedded Standard 7 (32/64),
  • Server 2012 R2 (64), Server 2008 R2 (64), Linux® operating system

Matrox C680 Specifications:

  • Bus Type: PCIe 3.0 x16
  • Form Factor (Card): Full Height/Half Length
  • Bracket (Mounted): Full height bracket (ATX)
  • Number of Video Outputs: 6
  • Video Output Connectors: 6 x Mini Display Port (secure)
  • Audio Output Formats: Multi-stream audio through DisplayPort (6 streams)
  • Memory: 2 GB GDDR 5
  • GPU: AMD™
