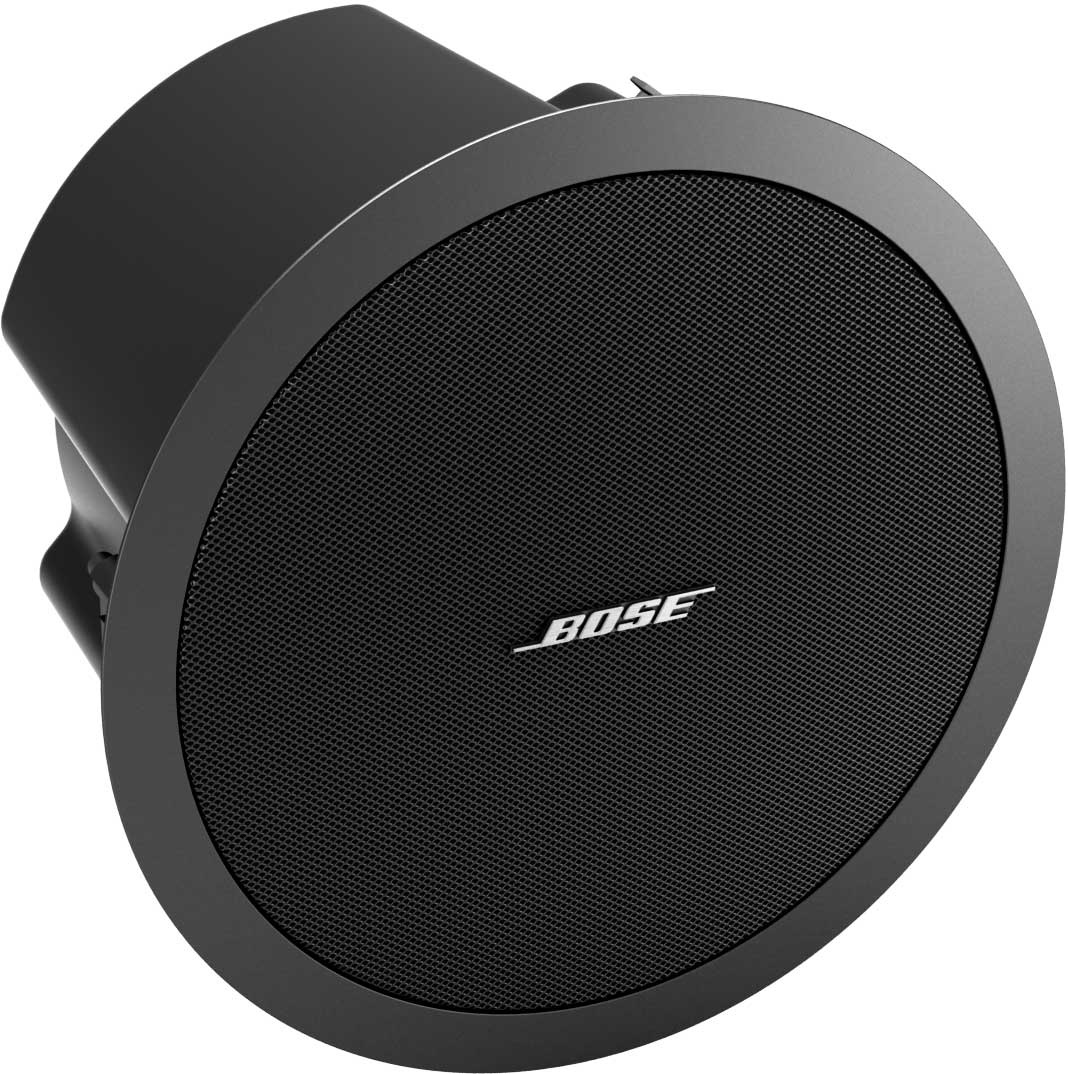

Bose DS-100F-BLACK [RESTOCK ITEM]
5.25" 100W @ 8 Ohms Black FreeSpace Ceiling Loudspeaker, Multi-Tap Transformer,

OUR PART #:  DS-100F-BLACK-RST-01

The FreeSpace® DS 100F loudspeakers deliver high-energy, full-range sound, making them well suited for foreground music applications in retail...
Learn More
Sale Price: $143.69
List Price: $326.00
You save 56%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Bose DS-100F-BLACK [RESTOCK ITEM]
Qty:
In Stock
Similar Products

The FreeSpace® DS 100F loudspeakers deliver high-energy, full-range sound, making them well suited for foreground music applications in retail, restaurant, hospitality and other applications where music and entertainment are key parts of creating a customer experience.

These 100-watt loudspeakers can be easily flush or pendant mounted in ceilings up to 30 feet (10m) high. Fewer loudspeakers are needed to create even coverage due to the high output and even dispersion. Quickly and easily set taps with a simple turn of an innovative thumb wheel accessible under the grille. Clean, sleek styling visually blends into ceilings while providing exceptional presence, full bass and clear detail.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

The FreeSpace DS 100F loudspeakers are acoustically compatible with the FreeSpace DS 100SE surface-mount loudspeakers and can be combined on the same loudspeaker line. The DS 100F can be installed quickly and simply due to its integrated mounting arms. This versatile design makes the DS 100F suitable for almost any ceiling installation: flush mounted above the ceiling, pendant mounted in open ceilings or installed in air handling (plenum) spaces.

Applications
The FreeSpace DS 100F loudspeaker is well-suited for permanent installations at:

  • Retail stores
  • Transportation facilities
  • Hospitality venues
  • Concourses
  • Restaurants
  • Houses of worship

Bose DS-100F-BLACK Features:

  • Maximum SPL of 104 dB-SPL (peak 111 dB-SPL)
  • High SPL output allows for installation in ceilings upto 30ft high
  • Full-range performance from 65Hz to 16kHz
  • 160° conical dispersion
  • Quick and easy flush-mount installation
  • Elegant, modern styling that blends with decor; available in black or white and can be painted
  • One 2.25" Twiddler driver and a separate 5.25" driver provide clarity and full bass response
  • Integrated multi-tap transformer provides easy-to-change tap settings that are accessible underneath the loudspeaker grille:
    • 70V - 12.5W, 25W, 50W, 100W
    • 100V - 25W, 50W, 100W
  • Can be used as an 8 ohm, 100W loudspeaker
  • Can be combined with the FreeSpace DS 100SE surface-mount loudspeaker on the same loudspeaker line
  • Listed to ANSI/UL 1480-2005
  • Suitable for use in air handling (plenum) spaces

Bose DS-100F-BLACK Specifications:

  • Power Handling: 100W
  • Nominal Impedance (transformer bypass): 8 ohms
  • Sensitivity (at 1W @ 1m): 85 dB-SPL
  • Maximum SPL (pink noise @ 1m @ rated power): 105dB-SPL; 111 dB-SPL (peak)
  • Frequency Range (-3dB): 65Hz - 16kHz
  • Beamwidth (-6dB point, average 1-4kHz): 160° conical
  • Driver Complement:
    • One 2.25" Twiddler driver
    • One 5.25" woofer
  • Construction Features:
    • Enclosure: Injection-molded polypropylene
    • Grille: Powder-coated steel
  • Dimensions:
    • Outer Flange Diameter: 11.8"
    • Ceiling Hole Diameter: 10.5"
    • Height to Top of Housing: 7.6"
  • Weight: 13 lbs; 16 lbs shipping
  • Package Contents: Loudspeaker, installation guide
  • Finish: Textured black finish with a contoured,powder-coated steel grille. Both the enclosure and grille can be painted.
  • Connectors: Three-terminal barrier strip with a pre-wired ceramic connector
