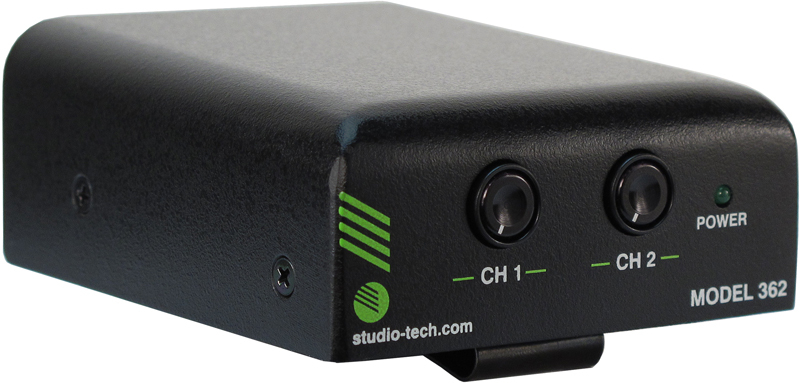

Studio Technologies MODEL 362
Listen-Only Beltpack

OUR PART #  MODEL-362

Our Price: $314.88
List Price: $320.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Studio Technologies Model 362 offers the Dante connectivity, configuration flexibility, and essential user controls in a compact, portable package. Built tough for both studio and field deployment the unit is optimized for use in broadcast sports and live entertainment events, news-gathering, and streaming broadcast applications. Leveraging the capabilities of Dante with Studio Technologies' expertise in creating excellent professional audio and broadcast products, the Model 362 allows simple deployment, application-tailored configuration choices, and reliable operation, while maintaining "pro" audio quality and an intuitive user experience. With only a Power-over-Ethernet (PoE) connection and a pair of headphones or an earpiece, a complete broadcast talent cue ("IFB") or audio monitoring location can be created.

Studio Technologies Model 362 Features:

  • Dante Audio-over-Ethernet technology
  • Configurable audio channel routing
  • Dual level controls
  • Excellent audio quality
  • 1/4-inch and 3.5 mm output jacks
  • Power-over-Ethernet (PoE) powered

Studio Technologies Model 362 Specifications:

  • Power Source: Power-over-Ethernet (PoE): class 1 (very low power, less than or equal to 3.84 watts)
  • Network Audio Technology:
    • Type: Dante audio-over-Ethernet
    • Bit Depth: up to 24
    • Sample Rate: 44.1, 48, 88.2 and 96 kHz
    • Number of Receiver (Input) Channels: 2
    • Dante Audio Flows: 2 receiver
  • Network Interface:
    • Type: twisted-pair Ethernet, Power-over-Ethernet (PoE) supported
    • Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s "GigE" Ethernet not supported)
  • Headphone Output:
    • Type: Dual-channel
    • Compatibility: intended for connection to mono or stereo headsets or earpieces with nominal impedance of 50 ohms or greater
    • Maximum Output Voltage: 3.8 Vrms, 1 kHz, 150 ohm load
    • Frequency Response: 20 Hz to 20 kHz, –2 dB
    • Distortion (THD+N): less than 0.002%
    • Dynamic Range: greater than 100 dB
  • Connectors:
    • Headphone Output: ¼-inch and 3.5 mm 3-conductor jacks
    • Ethernet: Neutrik etherCON RJ45
  • Dimensions (Overall):
    • 3.1 inches wide (7.9 cm)
    • 1.6 inches high (4.0 cm)
    • 4.0 inches deep (10.2 cm)
  • Mounting: intended for portable applications; contains integral belt clip
  • Weight: 0.5 pounds (0.2 kg)

Studio Technologies MODEL 362
Listen-Only Beltpack

OUR PART #  MODEL-362

Product Information:

The Studio Technologies Model 362 offers the Dante connectivity, configuration flexibility, and essential user controls in a compact, portable package. Built tough for both studio and field deployment the unit is optimized for use in broadcast sports and live entertainment events, news-gathering, and streaming broadcast applications. Leveraging the capabilities of Dante with Studio Technologies' expertise in creating excellent professional audio and broadcast products, the Model 362 allows simple deployment, application-tailored configuration choices, and reliable operation, while maintaining "pro" audio quality and an intuitive user experience. With only a Power-over-Ethernet (PoE) connection and a pair of headphones or an earpiece, a complete broadcast talent cue ("IFB") or audio monitoring location can be created.

Studio Technologies Model 362 Features:

  • Dante Audio-over-Ethernet technology
  • Configurable audio channel routing
  • Dual level controls
  • Excellent audio quality
  • 1/4-inch and 3.5 mm output jacks
  • Power-over-Ethernet (PoE) powered

Studio Technologies Model 362 Specifications:

  • Power Source: Power-over-Ethernet (PoE): class 1 (very low power, less than or equal to 3.84 watts)
  • Network Audio Technology:
    • Type: Dante audio-over-Ethernet
    • Bit Depth: up to 24
    • Sample Rate: 44.1, 48, 88.2 and 96 kHz
    • Number of Receiver (Input) Channels: 2
    • Dante Audio Flows: 2 receiver
  • Network Interface:
    • Type: twisted-pair Ethernet, Power-over-Ethernet (PoE) supported
    • Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s "GigE" Ethernet not supported)
  • Headphone Output:
    • Type: Dual-channel
    • Compatibility: intended for connection to mono or stereo headsets or earpieces with nominal impedance of 50 ohms or greater
    • Maximum Output Voltage: 3.8 Vrms, 1 kHz, 150 ohm load
    • Frequency Response: 20 Hz to 20 kHz, –2 dB
    • Distortion (THD+N): less than 0.002%
    • Dynamic Range: greater than 100 dB
  • Connectors:
    • Headphone Output: ¼-inch and 3.5 mm 3-conductor jacks
    • Ethernet: Neutrik etherCON RJ45
  • Dimensions (Overall):
    • 3.1 inches wide (7.9 cm)
    • 1.6 inches high (4.0 cm)
    • 4.0 inches deep (10.2 cm)
  • Mounting: intended for portable applications; contains integral belt clip
  • Weight: 0.5 pounds (0.2 kg)
