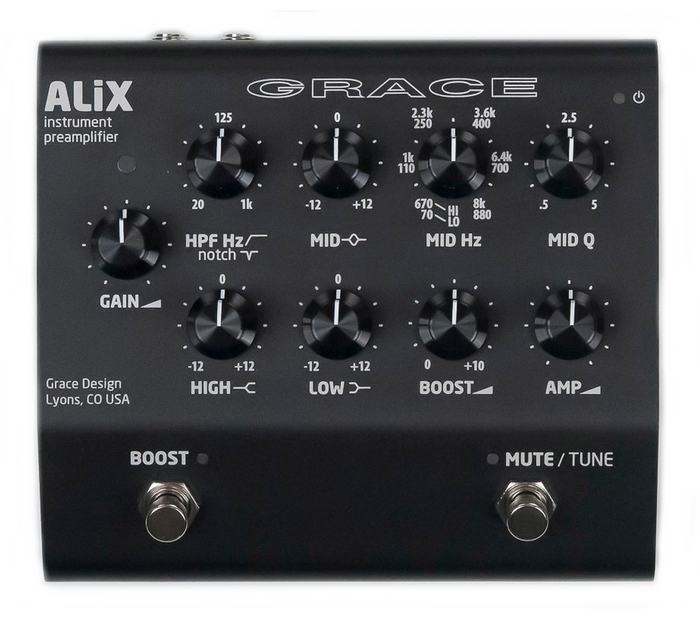

Grace Design ALiX
Acoustic Instrument Preamp, DI / EQ / Boost Pedal


The ALiX provides studio quality sound in a portable, roadworthy floor unit chassis.
Learn More
Selected Model Price: $625.00
List Price: $695.00
Save up to 10%!
Write the first review.
Grace Design ALiX
Select a Model: (shipping times are approximate)

The ALiX provides studio quality sound in a portable, roadworthy floor unit chassis.

Using the same powerful EQ section as the FELiX, the ALiX also features a high pass filter that cuts from 12dB per octave from 20Hz to 1kHz, parametric midrange covering from 70Hz all the way to 8KHz, and controls that are both easy-to-use and easy-to-adjust even when playing on a dark stage. Footswitches include a mute/tune switch for muting all outputs except the dedicated tuner out, and a boost switch which actives the 10dB variable boost circuit.

A 3-position impedance switch ensures your pickup system sounds the best it can using an isolated DI output with custom wound transformers for clear sound with low noise.

Grace Design ALiX Features:

  • Open, musical and detailed instrument preamplification for discerning artists and engineers like yourself
  • Ultra precision 0.5% thin film resistors used in the signal path
  • Careful power supply design and grounding for an ultra-quiet signal path and professional level headroom and line driving ability
  • Fully ground isolated DI output with high quality, low distortion, fully shielded transformer
  • Super rugged 1/4” connectors with heavy duty metal bushings
  • Powerful, independent EQ – hi and low shelving and full parametric midrange
  • Mid frequency control has two ranges 70-880Hz / 670 -8kHz
  • 20Hz-1kHz sweepable HPF on both channels, can also be set as notch filter
  • Mute/ tune footswitch mutes all outputs except dedicated tuner out and headphone output
  • 12V mic input power 9VDC @ 500mA (2.1mm BOSS™ standard center negative) power output for powering other pedals from the ALiX
  • Boost footswitch for variable 10dB level boost
  • Dedicated level controlled stage amp output
  • Dedicated tuner out, remains active when unit is muted
  • Side panel switches for mid Hz range select, HPF/notch select, 12V microphone power enable
  • Phase reverse switch 3 input impedance settings –330K Ohm, 1M Ohm, 10M O accommodating a wide range of pickup types
  • TRS effects insert jack
  • Universal 100-240 AC power supply with standard IEC cable – no wall wart - take ALiX anywhere in the world!
  • Full 5 year transferable warranty / built for a long, happy life on the road
  • Designed and built by us in Lyons, CO, USA
