TeachLogic AR-960
AirLink Wireless Router

OUR PART #  AR-960

Our Price: $615.00
List Price: $765.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The TeachLogic AR-960 AirLink Router can send an audio signal to an overflow crowd at a special event or send the announcer’s voice across the football stadium with easy by the use of RF transmission. Tests have been performed through multi-story buildings from lobby to upper conference room, from press box to cross-field component sound systems and various concession booths, or from outdoor program stage to distant Titans with UHF receivers. Transmission distance in excess of 500 feet has been achieved in direct line of sight with absolute clarity and rock solid connectivity.

TeachLogic's new digital time delay module can be added to the receiver to synchronize distant audio speakers with the program audio location. The digital time delay module can be installed with the receiver to delay the output signal of the receiver from 20–500 milliseconds. The LCD displays the delay time in milliseconds.

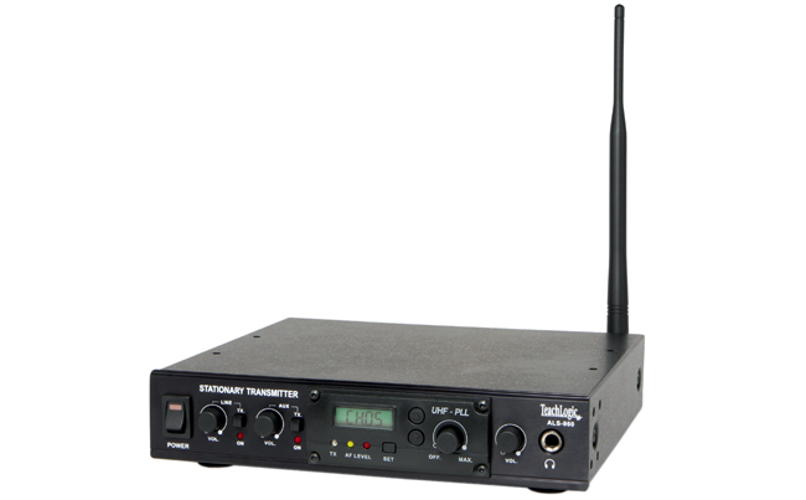

The ALS-960 transmitter also functions as a very handy 2 channel mixer by combining the aux line level input and the ¼” mic input. This allows both pre-recorded program material and a live microphone to be broadcast at an event with no additional mixing equipment required.

NOTE: See Attached for Product Specifications

TeachLogic AR-960 Features:

  • Transmitter:
    • Half-wave antenna for extended transmission distance
    • Two line level program inputs: Balanced (XLR); Unbalanced (Dual RCA)
    • Inputs mixable for composite output
    • Selectable 96 channel, UHF, (640–664 MHz)
    • LCD for channel # or frequency display
    • Master gain control for composite output
    • Headphone output
    • Titan neo compatible
  • Reciever:
    • Diversity receiver for more reliable reception
    • Two half-wave antennas for enhanced reception
    • Balanced line level output (0–2 volt), XLR
    • Unbalanced line level output, ¼” Phone
    • Selectable 96 channel (640–664 MHz)
    • LCD for channel # or frequency display
    • Volume / Gain control
  • Digital Time Delay:
    • Variable from 20–500 ms
    • Steps in 0.1 ms increments
    • LCD for delay time display
    • Set switch to lock setting
    • Convenient install, plug-in edge connector

TeachLogic AR-960
AirLink Wireless Router

OUR PART #  AR-960

Product Information:

The TeachLogic AR-960 AirLink Router can send an audio signal to an overflow crowd at a special event or send the announcer’s voice across the football stadium with easy by the use of RF transmission. Tests have been performed through multi-story buildings from lobby to upper conference room, from press box to cross-field component sound systems and various concession booths, or from outdoor program stage to distant Titans with UHF receivers. Transmission distance in excess of 500 feet has been achieved in direct line of sight with absolute clarity and rock solid connectivity.

TeachLogic's new digital time delay module can be added to the receiver to synchronize distant audio speakers with the program audio location. The digital time delay module can be installed with the receiver to delay the output signal of the receiver from 20–500 milliseconds. The LCD displays the delay time in milliseconds.

The ALS-960 transmitter also functions as a very handy 2 channel mixer by combining the aux line level input and the ¼” mic input. This allows both pre-recorded program material and a live microphone to be broadcast at an event with no additional mixing equipment required.

NOTE: See Attached for Product Specifications

TeachLogic AR-960 Features:

  • Transmitter:
    • Half-wave antenna for extended transmission distance
    • Two line level program inputs: Balanced (XLR); Unbalanced (Dual RCA)
    • Inputs mixable for composite output
    • Selectable 96 channel, UHF, (640–664 MHz)
    • LCD for channel # or frequency display
    • Master gain control for composite output
    • Headphone output
    • Titan neo compatible
  • Reciever:
    • Diversity receiver for more reliable reception
    • Two half-wave antennas for enhanced reception
    • Balanced line level output (0–2 volt), XLR
    • Unbalanced line level output, ¼” Phone
    • Selectable 96 channel (640–664 MHz)
    • LCD for channel # or frequency display
    • Volume / Gain control
  • Digital Time Delay:
    • Variable from 20–500 ms
    • Steps in 0.1 ms increments
    • LCD for delay time display
    • Set switch to lock setting
    • Convenient install, plug-in edge connector
