Product Overview

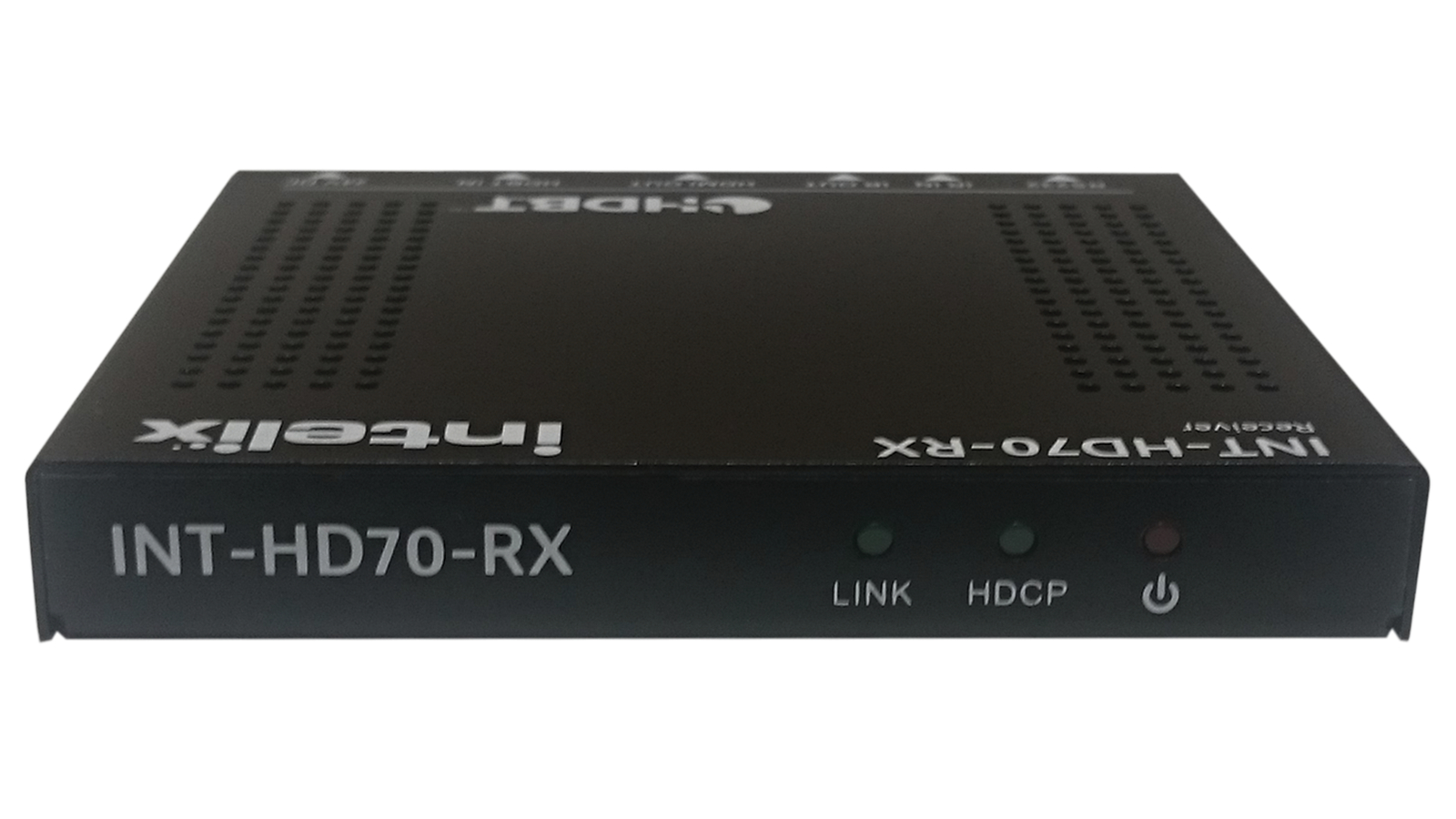

The Intelix INT-HD70-RX extends HDMI, IR, and RS232 over a single solid core shielded Category 5e or greater cable using the Valens VS010RX HDBaseT chip. The INT-HD70-RX supports a 1080p video signal, including HDCP 2.2 and multichannel audio, up to 70m, as well as 3D and 4K x 2K (UHD) signals up to 40m. Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. Flexible power design allows the units to be powered at either the TX or RX end, and only one power supply is required.
The INT-HD70 series extenders are compatible with all Intelix HDBaseT product offerings and any product that meets the HDBaseT specifications.
Intelix INT-HD70-RX Includes:
- Installation Guide
- Power Supply
- 3-pin Removable Screw Terminal
Intelix INT-HD70-RX Features:
- Extends HDMI, IR, and RS232 over a single solid core shielded Category 5e or greater cable using the Valens VS010TX HDBaseT chip
- 1080p, including HDCP 2.2 and multichannel audio, up to 70m
- 3D and 4K x 2K (UHD) signals up to 40m
- Built-in surge protection and diagnostic LEDs
- Powered at either the TX or RX end, and only one power supply is required
- The power supply is included; IR accessories (DIGIB-EMT and DIGIB-EYE) are sold separately
- Compatible with all Intelix HDBaseT product offerings and any product that meets the HDBaseT specifications
Intelix INT-HD70-RX Specifications:
- Product Line: INT-HD70-RX\
- Input/Output Connections:
- HDMI Output: One (1) HDMI Type A Receptacle
- HDBaseT Port: One (1) 8P8C port (Shielded RJ45)
- Power: One (1) 5.5 mm OD, 2.6 mm ID Threaded Barrel
- RS232 Port: One (1) 3-pin Removable Terminal Block Connector
- IR Input: One (1) 3.5 mm TRS Receptacle
- IR Output: One (1) 3.5 mm TRS Receptacle
- Supported Audio, Video and Control:
- Video Resolutions:
- SMPTE: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, UHD/30
- VESA: Resolutions up to 1920x1200
- Color Depth: 24, 30, 36, 48bit
- Maximum Video Compatibility at 70 m: Deep Color 36/30/24 Bit at 1080p
- Maximum Video Compatibility at 40 m: 1080p 3D, UHD/30, Deep Color 48 Bit at 1080p
- Video Compliance: HDMI 1.4 and HDCP 1.4/2.2
- Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
- ARC (Audio Return Channel): No
- HEC (HDMI Ethernet Channel): No
- CEC (Consumer Electronics Control): Yes (Pass-through Only)
- Supported Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
- Supported IR Carrier Frequencies: 33 to 55 kHz
- HDBaseT Signal Characteristics:
- Maximum Distance: 70 m (229 ft)
- Cable Requirements: Continuous shielded solid core Cat 5e or greater with TIA/EIA-568B crimp pattern (no couplers in-line)
- Bandwidth: 10.2 Gbps
- HDBaseT Chipset: VS010RX
- Chassis and Environmental:
- Construction: Black Alumininum
- Dimensions (HxWxD): 0.64" x 4.73" x 3.31" (16.2 mm x 115 mm x 84 mm)
- Operating Temperature: +32° to +104° F (0° to +40° C)
- Operating Humidity: 20% to 90%, Non-condensing
- Storage Temperature: +14° to +140° F (-10° to +60° C)
- Storage Humidity: 20% to 90%, Non-condensing
- Power and Regulatory:
- Power Input: 24V DC 1.25A or 48V DC PoH (Power over HDBaseT)
- Power Output: 48V DC PoH (Power over HDBaseT)
- Power over Ethernet (PoE) Compatibility: 802.3af Alternative A
- Power Consumption: 5 watts
- ESD Protection: 15kV air, 8kV contact
- Regulatory: FCC, CE, RoHS
- Other:
- Warranty: 2 years
- Diagnostic Indicators: HDCP, Link, and Power
- Optional Accessories: IR emitter (DIGIB-EMT), IR receiver (DIGIB-EYE), rack mount (INT-EXRMK), rack mounted power supply (PSU12)
- HDBaseT Transmitter (A/V, PoE, Control) Compatibility: DIGI-HD60C-S, DIGI-HDX-S, FLX-64, INT-HD70-TX, INT-HDX100-TX, DIGI-1X4B-1H, FLX-44, INT-44HDX, INT-66HDX, INT-88HDX, AS-1H1V, AS-1H1V-WP, AS-1H1DP, AS-1H1DP-WP, AS-2H, AS-2H-WP, ASW-WP
- HDBaseT Transmitter (A/V, Control) Compatibility: FLX-BO4A, DIGI-P123, DIGI-44B, DIGI-88B
- HDBaseT Transmitter (A/V and PoE) Compatibility: DIGI-HD60-S, DIGI-HD60-WP-S
