Liberty AV Solutions DL-HDCAT-WP-R
Digitalinx Twin Category Cable HDMI 1.4 Wall Plate Receiver with Power Supply

OUR PART #:  DL-HDCAT-WP-R

Liberty AV's DL-HDCAT-WP-R is a Digitalinxâ„¢ twin Category cable HDMI 1.4 wall plate receiver that uses an included 5 VDC power supply.
Learn More
Our Price: $151.60
List Price: $168.44
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Liberty AV Solutions DL-HDCAT-WP-R
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

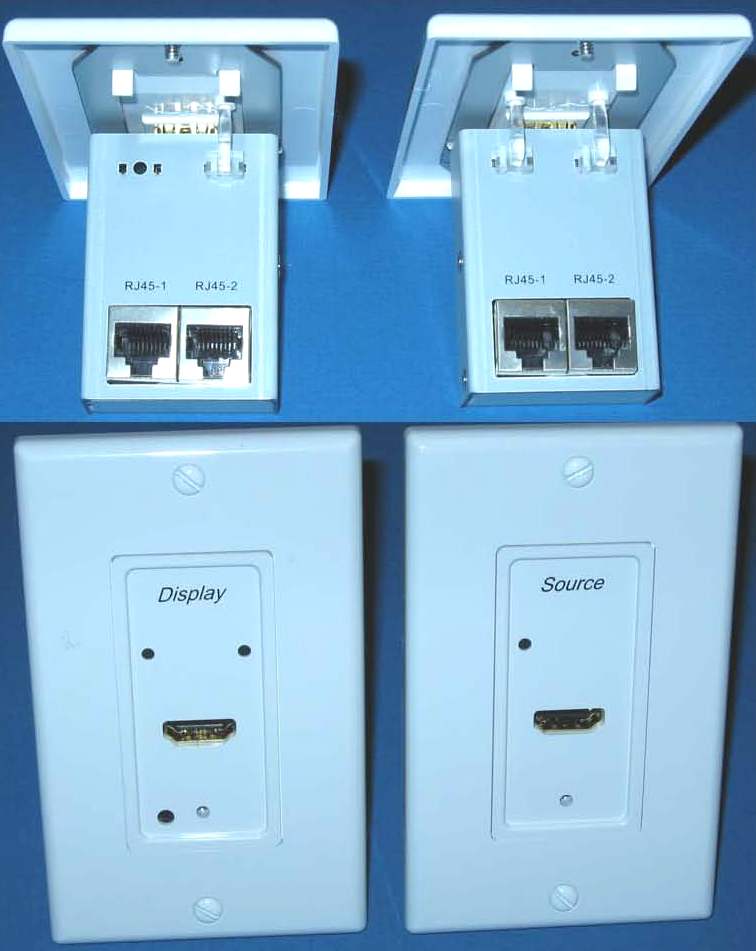

Liberty AV's DL-HDCAT-WP-R is a Digitalinxâ„¢ twin Category cable HDMI 1.4 wall plate receiver that uses an included 5 VDC power supply.

This Digitalinx Digital Media Converter is an externally powered digital HDMI and DVI Media Converter system to send HDMI and DVI over standard Category Cable, unshielded or shielded. The unit supports Audio Return Channel (ARC), Ethernet, 3D, Deep Color, and CEC protocols with an increased bandwidth to 2.25 Gbps per TMDS channel for a total throughput of 6.75 Gbps. This unit also supports DVI applications.

This Digital Media Converter is ideal for installations where pre-wire has been done with multiple category cables or where space constraints limit installing HDMI® or DVI cables. The Category cable solution is also excellent for retrofit applications. The compact design allows the devices to be unobtrusive in the final installation. It is recommended to test an application using the customer equipment as the signal from the source device varies between manufacturers.

The system can easily accommodate DVI only inputs and outputs by using Liberty’s high quality HDMI to DVI interconnects. The DVI connector is routed to the sources and display unit while the HDMI connector plugs into the Digitalinx Digital Media Converter. The digital audio signal is not transmitted when using DVI connectors.

Liberty AV DL-HDCAT-WP-R Digitalinx Wall Plate Receiver Features:

  • HDMI 1.3, Simplay Certified
  • Supports 6.75 Gbps 1080p60 deep Color, 3D, ARC, Ethernet
  • Supports all audio formats
  • Recommend Category 6 overall shielded TWP cables:
    • 165 ft (50m) 1080p Category 6
    • 100 ft (30m) 1080p Category 5e
  • Package includes wall plate mounted RX unit, power supply, and user's manual
  • Applications:
    • Extension of HDMI/DVI signals
    • Plenum longer distance HDMI/DVI extension
    • Small space issues where TWP can be run but not HDMI
