ADJ Focus Spot One 35W LED Spot, Beam, Wash Hybrid Moving Head with 3W UV LED

OUR PART #: FOCUS-SPOT-ONE MFR #: FOC598

Copied to clipboard

The ADJ Focus Spot One is a 35W LED Moving Head with a 3W UV included for black lighting or additional color hues. ...Read more

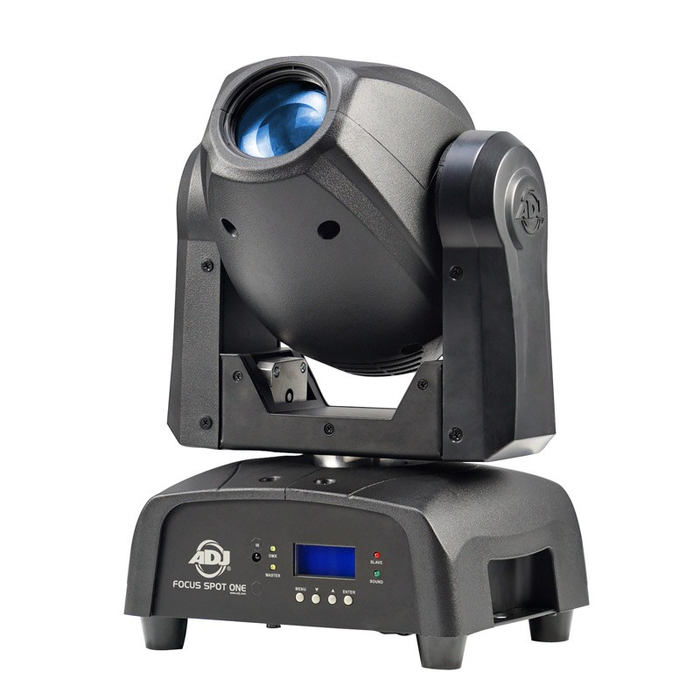

ADJ Focus Spot One 35W LED Spot, Beam, Wash Hybrid Moving Head With 3W UV LED Image 1
ADJ Focus Spot One 35W LED Spot, Beam, Wash Hybrid Moving Head With 3W UV LED Image 2
ADJ Focus Spot One 35W LED Spot, Beam, Wash Hybrid Moving Head With 3W UV LED
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The ADJ Focus Spot One is a 35W LED Moving Head with a 3W UV included for black lighting or additional color hues. In addition, ADJ has fitted the FS1 with a GOBO wheel with replaceable, rotating and indexable GOBOs. The GOBOs are easy to replace by removing the top housing with one screw that’s on a hinge. GOBOs easily lock in and out of the GOBO wheel. The Focus Spot One features motorized focus, Gobo Indexing and EZ Gobo replacement.

The Focus Spot One is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a an LED spot Moving Head. It has 15 & 17 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, 3-pin DMX I/nOut, PowerCon In/Out power connectors, and a 4-Button DMX LCD menu.

ADJ FOCUS-SPOT-ONE Specifications:

  • High Output LED Moving Head Wash
  • 35W Cool White LED
  • 3W UV LED
  • 16° beam angle
  • Motorized Focus
  • Three Operational Modes: Sound Active, Show Mode, & DMX Controlled
  • Four Built-in lighting shows
  • 15 & 17 DMX channel modes
  • Eight Colors + Spot & Split Colors
  • Six Rotating, replaceable Gobo’s + Spot
  • Gobo Indexing
  • Gobo Size:
    • Outer: 23.8mm
    • Inner:19mm
    • Thickness: 0.2mm
  • Electronic Dimming: 0% - 100%
  • Five Dimmer Curves
  • Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together
  • Fast Pan Tilt Movement
  • Pan: 540°
  • Tilt: 240°
  • Gobo Shake effect
  • 16-Bit Fine Pan/Tilt control
  • 4-Button DMX LED menu
  • Stepper motors with micro stepping
  • Includes Omega bracket for truss mounting
  • 3-pin XLR In/Out
  • Fan cooled
  • Strobe/Pulse effect; random strobe slow to fast
  • UC IR & Airstream IR Compatible (sold separately)
  • PowerCON AC In/Out on rear to daisy chain power (up to 19 Focus Spot One’s @ 120V and 35 Focus Spot One’s @ 240V )
  • Light Source: 1 x 35W Cold White LED
  • Long Life LED (Rated at approximately 50,000 hrs)
  • Multi-voltage Operation: 100-240V, 50Hz/60Hz
  • Power Consumption: 81W
  • Dimensions (LxWxH): 7.75” x 8.75” x 14.25” (197 x 221 x 360mm)
  • Weight: 12.5 lbs. (5.7 kgs.)
