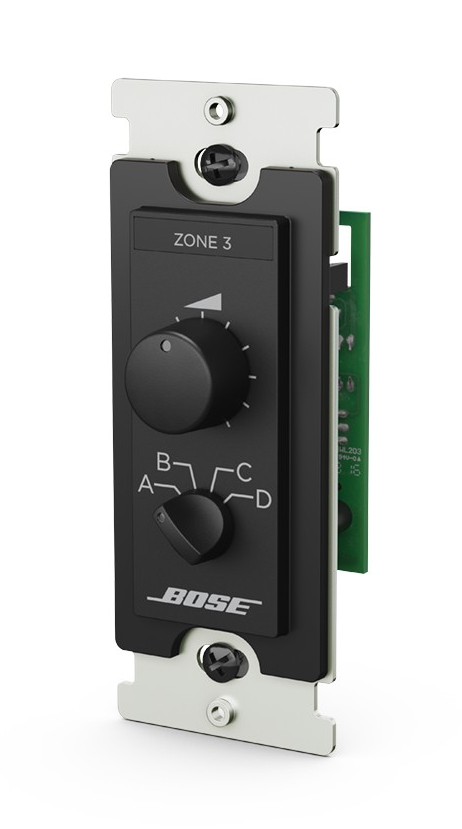

Bose CC-3-BOSE
3 Zone Controller with Source Selector

OUR PART #:  CC-3-BOSE

Bose® ControlCenter CC-3 zone controllers provide volume control and A/B/C/D source selection for ControlSpace® products.
Learn More

Call for price! Not available online.

Select a Model: (shipping times are approximate)

Related Products

Bose® ControlCenter CC-3 zone controllers provide volume control and A/B/C/D source selection for ControlSpace® products. They are available in either black or white and fit 1-gang electrical boxes in North America, Europe, and Japan. The zone controllers use and RJ-45 connector and Cat 5 wiring for simplified wiring.

Note: Image shown is for display purposes only. For more information please contact your Full Compass Sales Pro.

Bose ControlCenter CC-3 Applications:

  • Retail stores
  • Restaurants and bars
  • Hospitality venues
  • Religious and worship facilities
  • Auxiliary zones

Bose ControlCenter CC-3 Features:

  • ControlCenter Series – Remote end-user interfaces foruse with Bose FreeSpace® amplifiers, PowerShare amplifiers and ControlSpace®,processors. Three control configurations offer volume control (CC-1), volumeplus A/B source selection (CC-2) and volume plus A/B/C/D source selection(CC-3).
  • Variant Options – Available in white or black and isoffered in North American, Japanese, and EU form-factors to adapt to commonelectrical box sizes.
  • Support for Decora®-style wall plates – North Americanand Japanese models are designed for use with Decora-style wall plate covers(not included). The 86×86 mm European model is supplied as a finished wallplate that supports 60 mm screw spacing.
  • Custom Labels – Each zone controller includes a sheet of pre-printedlabels, with two blanks for custom labeling.

Bose ControlCenter CC-3 Specifications:

  • Connector: One RJ-45, TIA/EIA 568B wiring standard
  • Settings: None
  • Type: Passive controller, linear potentiometer 0- 10kOhm and 4-position switch
  • Cable Requirement: Cat 5
  • Colors: Black or White
  • Electrical Box Size: 1-gang
  • Compatible With:
    • ControlSpace ESP-00 II engineered sound processor
    • ControlSpace ESP-880, ESP-1240 engineered sound processors
    • ControlSpace ESP-4120, ESP-1600 engineered sound processors
  • Box Contents: (1) controller, (1) color-matched pre-printed label sheet,(2) mounting screws, (1) installation guide
