Bose CC-2-BOSE
2 Zone Controller With Source Selector

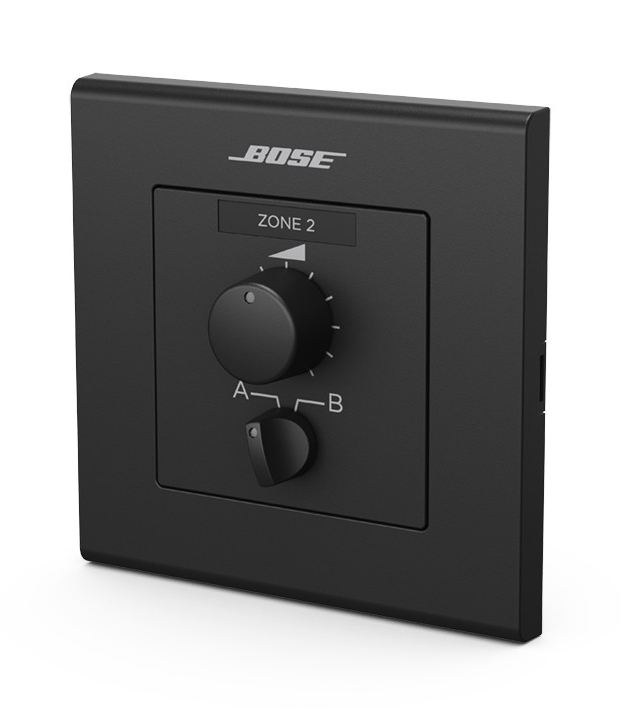

Bose® ControlCenter CC-2 zone controllers provide volume control and A/B source selection for FreeSpace® and ControlSpace® products.
Learn More
Selected Model Price: $59.81
List Price: $78.00
Save up to 23%!
Write the first review.
Bose CC-2-BOSE
Select a Model: (shipping times are approximate)

Related Products

Bose® ControlCenter CC-2 zone controllers provide volume control and A/B source selection for FreeSpace® and ControlSpace® products. They are available in either black or white and fit 1-gang electrical boxes in North America, Europe, and Japan. The zone controllers use Cat 5 wiring and can be daisy-chained using the two RJ-45 connectors for simplified wiring.

Note: Image shown is for display purposes only. For more information please contact your Full Compass Sales Pro.

Bose ControlCenter CC-2 Applications:

  • Retail stores
  • Restaurants and bars
  • Hospitality venues
  • Religious and worship facilities
  • Auxiliary zones

Bose ControlCenter CC-2 Features:

  • ControlCenter Series –Remote end-user interfaces foruse with Bose FreeSpace® amplifiers, PowerShare amplifiers and ControlSpace®,processors. Three control configurations offer volume control (CC-1), volumeplus A/B source selection (CC-2) and volume plus A/B/C/D source selection(CC-3).
  • Variant Options –Available in white or black and isoffered in North American, Japanese, and EU form-factors to adapt to commonelectrical box sizes.
  • Support for Decora®-style wall plates –North Americanand Japanese models are designed for use with Decora-style wall plate covers(not included). The 86×86 mm European model is supplied as a finished wallplate that supports 60 mm screw spacing.
  • Custom Labels –Each zone controller includes a sheet of pre-printedlabels, with two blanks for custom labeling.

Bose ControlCenter CC-2 Specifications:

  • Connectors: Two (2) RJ-45, allows for daisy-chaining,TIA/EIA 568B wiring standard
  • Settings: Channel selection via 8 DIP switch bank
  • Type: Passive controller, linear potentiometer 0- 10kO and 2-position switch
  • Cable Requirement: Cat 5
  • Colors: Black or White
  • Elextrical Box Size: 1-gang
  • Compatible Witth:
    • FreeSpace IZA 2120-LZ/HZ amplifiers
    • FreeSpace IZA 250-LZ, IZA-190-HZ amplifiers
    • FreeSpace DXA 2120 amplifier
    • ControlSpace ESP-00 II engineered sound processor
    • ControlSpace ESP-880, ESP-1240 engineered sound processors
    • ControlSpace ESP-4120, ESP-1600 engineered sound processors
  • Box Contents: (1) controller, (1) color-matched pre-printed label sheet,(2) mounting screws, (1) installation guide
