Product Overview
Bose Professional ControlCenter CC-1 zone controllers provide volume control for FreeSpace®, PowerShare, and ControlSpace® products. They are available in either black or white and fit 1-gang electrical boxes in North America, Europe, and Japan. The zone controllers use Cat 5 wiring and can be daisy-chained using the two RJ-45 connectors for simplified wiring.
Bose ControlCenter CC-1 Applications:
- Retail stores
- Restaurants and bars
- Hospitality venues
- Religious and worship facilities
- Auxiliary zones
Bose ControlCenter CC-1 Features:
- ControlCenter Series –Remote end-user interfaces for use with Bose Professional FreeSpace® amplifiers, PowerShare amplifiers and ControlSpace®,processors. Three control configurations offer volume control (CC-1), volume plus A/B source selection (CC-2) and volume plus A/B/C/D source selection(CC-3).
- Variant Options –Available in white or black and is offered in North American, Japanese, and EU form-factors to adapt to common electrical box sizes.
- Support for Decora®-style wall plates–North American and Japanese models are designed for use with Decora-style wall plate covers (not included). The 86×86 mm European model is supplied as a finished wall plate that supports 60 mm screw spacing.
- Custom Labels –Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling.
Bose ControlCenter CC-1 Specifications:
- Connectors: Two (2) RJ-45, allows for daisy-chaining,TIA/EIA 568B wiring standard
- Settings: Channel selection via 8 DIP switch bank
- Type: Passive controller, linear potentiometer 0- 10kO
- Cable Requirement: Cat 5
- Colors: Black or White
- Electrical Box Size: 1-gang
- Compatible With:
- FreeSpace IZA 2120-LZ/HZ amplifiers
- FreeSpace ZA 2120-LZ/HZ amplifiers
- FreeSpace DXA 2120 amplifier
- PowerShare PS602 amplifier
- PowerShare PS604 amplifier
- ControlSpace ESP-00 II engineered sound processor
- ControlSpace ESP-880, ESP-1240 engineered sound processors
- ControlSpace ESP-4120, ESP-1600 engineered sound processors
- Box Contents: (1) controller, (1) color-matched pre-printed label sheet,(2) mounting screws, (1) installation guide
Note

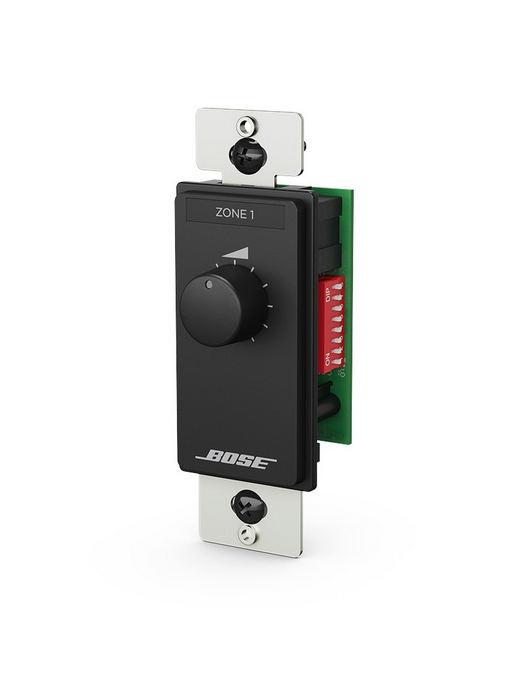

Note: Image shown is for display purposes only. For more information please contact your Full Compass Sales Pro.
