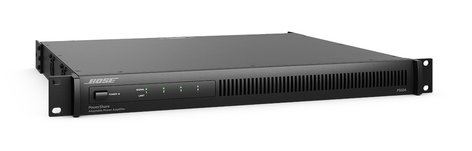

Bose PS604
PowerShare Adaptable Power Amplifier

OUR PART #:  PS604

The Bose PowerShare PS604 adaptable power amplifier is a 4-channel installed amplifier that allows its total 600 watts to be shared across all four outputs.
Learn More
Our Price: $1,316.82
List Price: $2,198.00
You save 40%!
Write the first review.
Bose PS604
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Bose PowerShare PS604 adaptable power amplifier is a 4-channel installed amplifier that allows its total 600 watts to be shared across all four outputs. Independently control the output level, EQ, and low-impedance/high-impedance (Low-Z/Hi-Z) settings for each output. Onboard configurable loudspeaker processing and direct access to zone controllers eliminate the need for an additional signal processor in many installations, while outstanding audio performance and reliability are assured with patented technologies inherited from the field-proven PowerMatch® line. This unique set of features and technologies makes PowerShare one of the most versatile high-performance amplifiers available.

Bose PS604 Applications:

  • Performing arts venues
  • Houses of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venues

Bose PS604 Features:

  • PowerShare Technology: Patented PowerShare technology allows the total 600 watts of power to be shared asymmetrically across all outputs, as each output is capable of delivering full power. Instead of selecting amplifier power based on the needs of the largest zone, installers now have the freedom to use total amplifier power in the application. This enables more flexibility during the initial design, or later on-site when making unplanned changes that take advantage of surplus power.
  • Load-Independent Outputs: Each channel can be configured for low-impedance (4-8 O) or high-impedance (70/100V) applications without bridging, use of jumpers, or software settings.
  • DFL™ System: The Dual Feedback Loop system, inherited from the field-proven Bose PowerMatch® amplifier line, improves performanceand reliability through continuous monitoring and control of both the current and voltage delivered to each output load. This combination provides improved linearity and lower distortion, while protecting loudspeakers.
  • Integrated Loudspeaker Processing withOptionalPowerShare Editor Configuration:  For applications requiring additional signal processing the PowerShare Editor Software offers real-time selection and control of Bose loudspeaker EQs, 9-band PEQs, mixing, crossover, limiters,delay, and mute/output polarity through a USB connection. For basic setups without a PC, rear-panel settings allow installers to recall Bose loudspeaker equalization and protection per output channel. These features eliminate the need for an external signal processor in many applications.
  • ControlCenter Zone Controller Accessories:Bose ControlCenter CC-1 zone controllers can be directly attached forremote adjustment of amplifier outputs further extending stand-alone amplifierapplications.
  • Auto-Standby: Designed to save power consumption when not in use.PowerShare amplifiers can be configured to automatically enter standby modewhen the audio signal falls below a set threshold, then wake when audioreturns.

Bose PS604 Specifications:

  • Amplifier power: 4 x 150 W
  • Maximum power per channel: 600 W @ 4-8 Ohm, 70/100V
  • Input channels: 4 balanced
  • Outputs: 4
