Product Overview

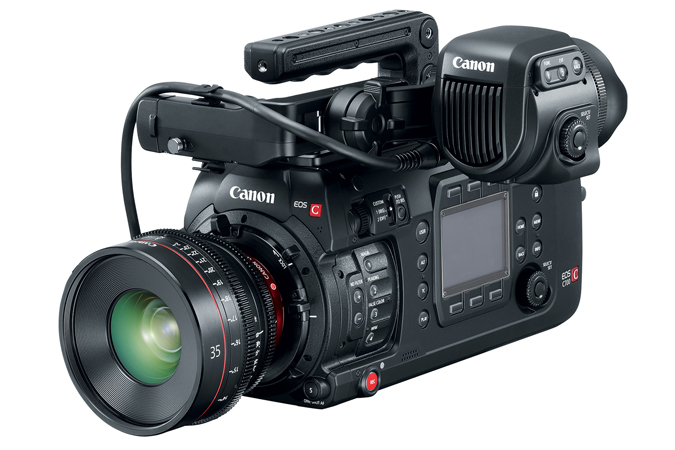

Redesigned with professional feedback and incorporated into a rugged magnesium body, the Canon EOS-C700-EF Digital Cinema Camera builds off the industry recognized strengths of the Cinema EOS system. This model comes with an EF (Cinema Lock style) mount version, and features a pixel resolution of 4622 X 2496 (approx. 11.54MP), a dynamic range of 15 stops, and brings Dual Pixel CMOS AF to the top-of-the line EF model.
Additional innovative features include a sleek, distinct ergonomic design as Canon has delivered an advanced cinema camera professionals can count on for all their production needs. The EOS C700’s new modular design and highly expandable body lets users combine Canon’s wide-ranging lineup of original camera and support accessories with third-party accessories to build a system flexible enough to handle any shooting application or location. Furthermore, the expanded recording options of the C700 are optimized especially for today’s demanding 4K productions and workflows.
The EOS C700 is the first Canon camera to use the Apple® ProRes intermediate codec, and features both 4K internal ProRes and XF-AVC recording. With these recording options the EOS C700 Super35 format camera is designated to become a flexible “A” camera for most any production requirement. Its recording capabilities are especially tailored to meet the demanding needs of feature films, commercials, documentaries and episodic television productions by offering the workflow choices the industry requires. The EOS C700 while being a full size cinema camera, is flexible for both traditional studio style and handheld configurations.
NOTE: Some gear shown above are NOT INCLUDED and sold separately. For more information on this and other products, please contact your Sales Pro.
Includes
- EOS C700 Camera Body (with Body Cap)
- Handle Unit
- Mic Holder
- Clamp Base
- Extension Unit Attachment
- Reinforcing Plate
- Button Battery
- Base Feet (x4)
- Tape Measure Hook (x2)
- Allen Key (x2)
Features
- Two new 4K sensor designs
- Refined ergonomics and design
- RAW Recording
- Canon XF-AVC and ProRes Internal Recording
- Internal CFast and SD Card Recording
- Canon Log 2 and 3
- SMPTE ST 2084 Support for HDR Productions
- Rec. 2020
- ACES Support
- Dual Pixel CMOS AF
- Triple DIGIC DV 5 Image Processors
Specifications
- Item Code: 1454C002
- Sensor: CMOS Sensor with DAF Technology
- Total Pixels: Approx. 11.54 megapixels (4622 x 2496)
- Number of Effective Pixels:
- Approx. 8.85 megapixels (4096 x 2160): When 4096 x 2160 or 2048 x 1080 is selected as the resolution
- Approx. 8.29 megapixels (3840 x 2160): When 3840 x 2160 or 1920 x 1080 is selected as the resolution
- RAW Recording Pixels 4512 x 2376
- Power Supply:
- Input: DC IN 12V jack (XLR 4-pin jack)
- Output: DC 24V 2A/DC 12V 2A terminal/D-TAP terminal
- Viewfinder:
- Optional OLED Electronic View Finder (EVF-V70) sold separately
- FHD 1920 x 1080 0.7
- Wi-Fi Specifications:
- Standards: IEEE 802.11b/g/n (2.4 GHz band), IEEE 802.11a/n (5 GHz band)
- Transmission Frequencies and Channels:
- IEEE 802.11b/g/n (2.4 GHz band), 2412-2462MHz, 1-11ch (US, Canada, Korea, Taiwan, Philippine, Mexico, Saint Pierre, Miquelon, Brazil)
- 2412-2472 MHz, 1-13ch (in countries other than the ones listed above)
- IEEE 802.11n/11a (5 GHz band): Differs depending on the model’s destination.
- Wi-Fi Setup Method:
- WPS [Wi-Fi Protected Setup] (push-button system, PIN code system)
- Manual Setup
- Search for Access Points
- Authenticatin Systems: Open system, WPA-PSK, WPA2-PSK
- Encryption: WEP-64, WEP-128, TKIP, AES
- Recording Media:
- Cfast Card (2 slots): Movie recording (XF-AVC/ProRes), custom pictures, metadata recording
- SD Card: Records movies XF-AVC (proxy), photos (JPEG), custom pictures, metadata, menus and other data
- Codex Capture Drive: Video (RAW) (Available with Codex Recorder Attached to C700) / ProRes
- Frame Rate:
- 59.94 Hz, 50.00 Hz, 24.00 Hz
- 59.94 Hz mode: 59.94i/59.94P/29.97P/23.98P
- 50.00 Hz mode: 50.00i/50.00P/25.00P
- 24.00 Hz mode: 24.00P
- Controls Display: 3.0" (7.66cm on the diagonal) color liquid crystal
- Approximately 1.036 million dots
- Playback:
- Playback Operations: Normal playback, frame forward, frame reverse, rec review
- Clip Display: List display of clip file names
- Clip Information Display: Clip metadata display, custom picture data display
- Edit: Clip deletion
- Input: GENLOCK terminal (also serves as SYNC OUTterminal), TIME CODE terminal (input/output switching), REMOTE terminals (A/B), MIC jack, XLR: 2 sets
- Output: MON. (1/2) terminals, SDI-OUT terminal (4sets), HDMI OUT terminal, headphones jack, SYNC OUT terminal (also serves asGENLOCK terminal), TIME CODE terminal (input/output switching), VIDEO terminal
- Input/Output Control: LENS terminal, Ethernet terminal
- Dimensions (WxHxD): Approx. 6.6" x 6.1" x 12.9" (167x 154 x 327mm)
- Weight: Approx.: 7.6 lbs (3440 g)
Note
- This Cinema Camera has an EF Mount.
- Lens NOT Included
- For complete specifications and additional info, please consult the documentation tab above.
