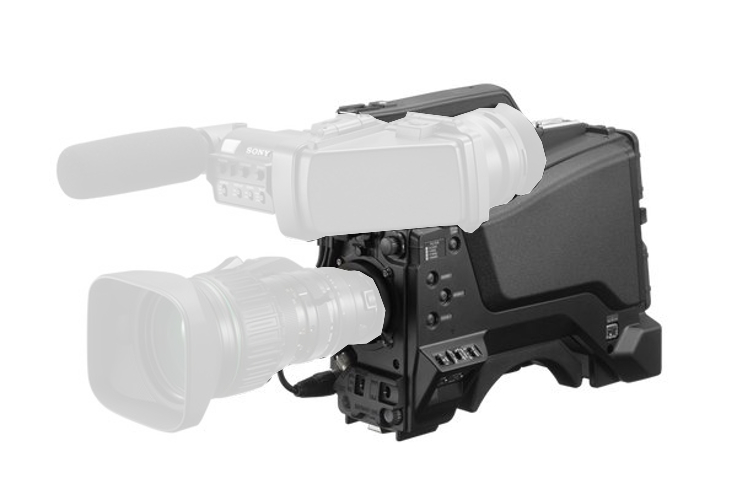

Sony HXCFB75H
Three 2/3" Exmor® CMOS Sensors SD/HD Studio Camera

OUR PART #:  HXCFB75H

Call for price! Not available online.
List Price: $10,995.00

Similar Products

The Sony HXC-FB75H three 2/3" Exmor® CMOS sensors SD/HD Studio Camera head is a high-performance—yet cost effective—HD camera that inherits Sony’s proven operability from the highly regarded DXC-D Series of system cameras. The camera is equipped with three 2/3" Full HD Exmor® CMOS sensors to provide excellent sensitivity (F12 at 1080i/60) with a low noise ratio. These sensors are common with the HXC-P70, HXC-D70 and PXWX400. This enables easy integration and system flexibility. A wide range of output formats are available, including 1080i/59.94, 50, 1080 PsF/29.97, 25, 720p/59.94, 50, 576i/50 and 480i/59.94. The focus assist function enables precise focusing. Video/Audio and control signal transmission, with power, can extend up to 1,100 ft via Hybrid Optical Fiber Cable. The camera is also controllable from a CCU panel and remote controller.

NOTE: Viewfinder, Mic, and Lens NOTIncluded

Sony HXC-FB75H Features:

  • Full HD Exmor® CMOS sensors
  • Captures a variety of HD images
  • SD down-converter
  • Hybrid-type optical fiber cable connection to CCU extends signal transmission with power supply to 1,148.29 ft
  • Long-distance transmission up to 6.21 mi with single-mode fiber cable
  • HDVF interface for connecting a variety of viewfinders
  • Wide range of image control functions
  • HXC-FB75KC variant of this model includes a digital HD viewfinder, HD lens and Monaural microphone

Sony HXC-FB75H Specifications:

  • Camera Specifications:
    • Built-in-Filters:
      • CC: Electrical
      • ND: 1; CLEAR, 2; 1/4ND, 3; 1/16ND, 4; 1/64ND
    • Effective Picture Elements: 1920 x 1080 (H x V)
    • Effective Pixels: 1920 x 1080 (H x V)
    • Gain Selection: -3, 0, 3, 6, 9, 12 dB
    • Horizontal Resolution: 1,000 TV lines or higher
    • Optical System: F1.4 prism system
    • S/N Ratio: Typical 60dB*2 (1080/59.94i)
    • Sensitivity: F12 (59.94 Hz), F13 (50 Hz)
    • Shutter Speed: 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (59.94i mode)
      1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (50i mode)
  • General Specifications:
    • Dimensions (WxHxD): 6.5" x 10.5" x 12.75"
    • Imager: 3-chip 2/3" type CMOS
    • Mass: Approx. 7 lb 4.4 oz
    • Operating Temperature: 14°F to +113°F
    • Power Consumption: Approx.18W (Camera body only)
    • Power Requirements:
      • CCU: DC48V, 2.8A (max.)
      • Ext.DC In: DC12V, 5.4A (max.)
    • Storage Temperature: -4°F to +140°F
  • Audio Input:
    • XLR type: 3-pin, female (1 each)
    • MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FB70), balanced
    • LINE IN: 0dBu, balanced
  • Input/Output Connectors Specifications:
    • CCU: Optical Fiber (x1), CCFN cable or Single Mode Fiber cable (LC type)
    • Intercom: XLR type, 5-pin, female (1)
    • Prompter: BNC (x1); Gen-Lock In or Prompter Out
    • Remote: 8pin (x1)
    • Viewfinder: 20-pin (1), for HDVF only
  • Inputs and Outputs Specifications:
    • DC In: XLR-type 4-pin (x1), DC 10.5 V to 17 V
    • DC Out: 4-pin (1), DC 10.5 V to 17 V, 1.5 A (max.)
    • Test Out: TEST Out (Analog output with/without characters), or HD/SD Sync Out
    • USB: USB 2.0 (x1)
