Product Overview

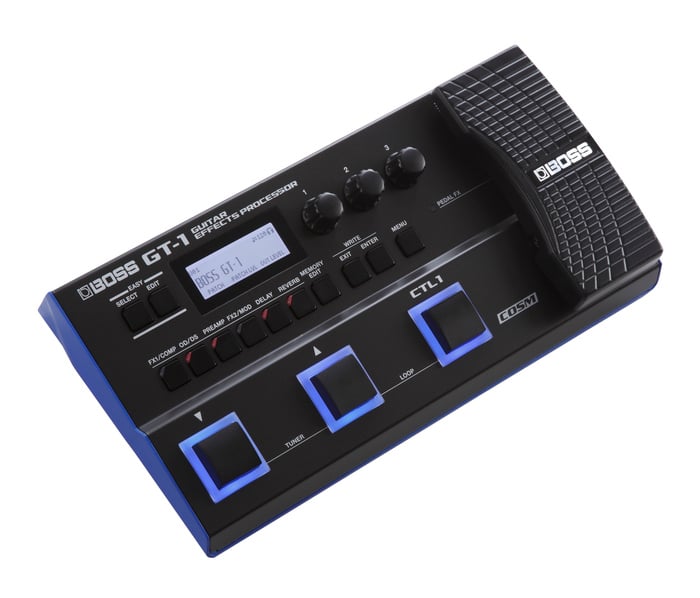

The GT-1 is an easy-to-use, portable guitar effects processor that provides a wide array of world-class amps and effects. A streamlined interface enables quick and intuitive sound creation, while an assignable control switch and expression pedal provide dynamic real-time effects adjustment.
Boss GT-1 Includes:
- Owner's manual
- Leaflet "USING THE UNIT SAFELY"
- Alkaline battery (AA, LR6) x 4
Boss GT-1 Features:
- Flagship-class BOSS sound engine squeezed into a light and compact floor unit
- Modern design with no hard edges enables safe transport in a guitar bag
- Easy Select and Easy Edit functions for quickly choosing and tweaking patches
- Four AA batteries provide up to seven hours of playing time for busking and mobile gigs
- Onboard control switch and expression pedal; footswitch expression pedal jack and USB
Boss GT-1 Specifications:
- Sampling Frequency: 44.1 kHz
- AD Conversion
- 24 bits + AF method
- * AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters
- DA Conversion: 24 bits
- Effects: 108 types
- Patches: 99 (User) + 99 (Preset)
- Phrase Loop: 32 sec.
- Nominal Input Level: INPUT: -10 dBu, AUX IN: -20 dBu
- Maximum Input Level: INPUT: -7 dBu, AUX IN: 0 dBu
- Input Impedance: INPUT: 1 M ohm, AUX IN: 27 k ohms
- Nominal Output Level: OUTPUT (L/MONO, R): -10 dBu, PHONES: -10 dBu
- Output Impedance: OUTPUT (L/MONO, R): 1 k ohm, PHONES: 44 ohms
- Recommended Load Impedance: OUTPUT (L/MONO, R): 10 k ohms or greater, PHONES: 44 ohms or greater
- Controls
- DOWN switch, UP switch CTL1 switch
- EASY SELECT button, EASY EDIT button, FX1/COMP button, OD/DS button, PREAMP button, FX2/MOD button, DELAY button, REVERB button, MEMORY EDIT button, EXIT button, ENTER button, MENU button
- 1 knob, 2 knob, 3 knob
- Expression pedal
- Display: Graphic LCD (132 x 32 dots, backlit LCD)
- Connectors
- INPUT jack, OUTPUT (L/MONO, R) jacks: 1/4" phone type
- CTL2, 3/EXP2 jack: 1/4" TRS phone type
- AUX IN jack: Stereo miniature phone type
- USB COMPUTER port: USB type B
- DC IN jack
- Power Supply: Alkaline battery (AA, LR6) x 4, ACadaptor (sold separately)
- Current Draw: 200 mA
- Expected battery life under continuous use: Alkaline: Approx. 7 hours *(These figures will vary depending on the actual conditions of use)
- Dimensions (WxDxH): 12-1/16" x 6" x 2-1/4"
- Maximum height (WxDxH): 12-1/16" x 6" x 2-15/16"
- Weight (including battery): 2 lbs 14 oz
