Product Overview

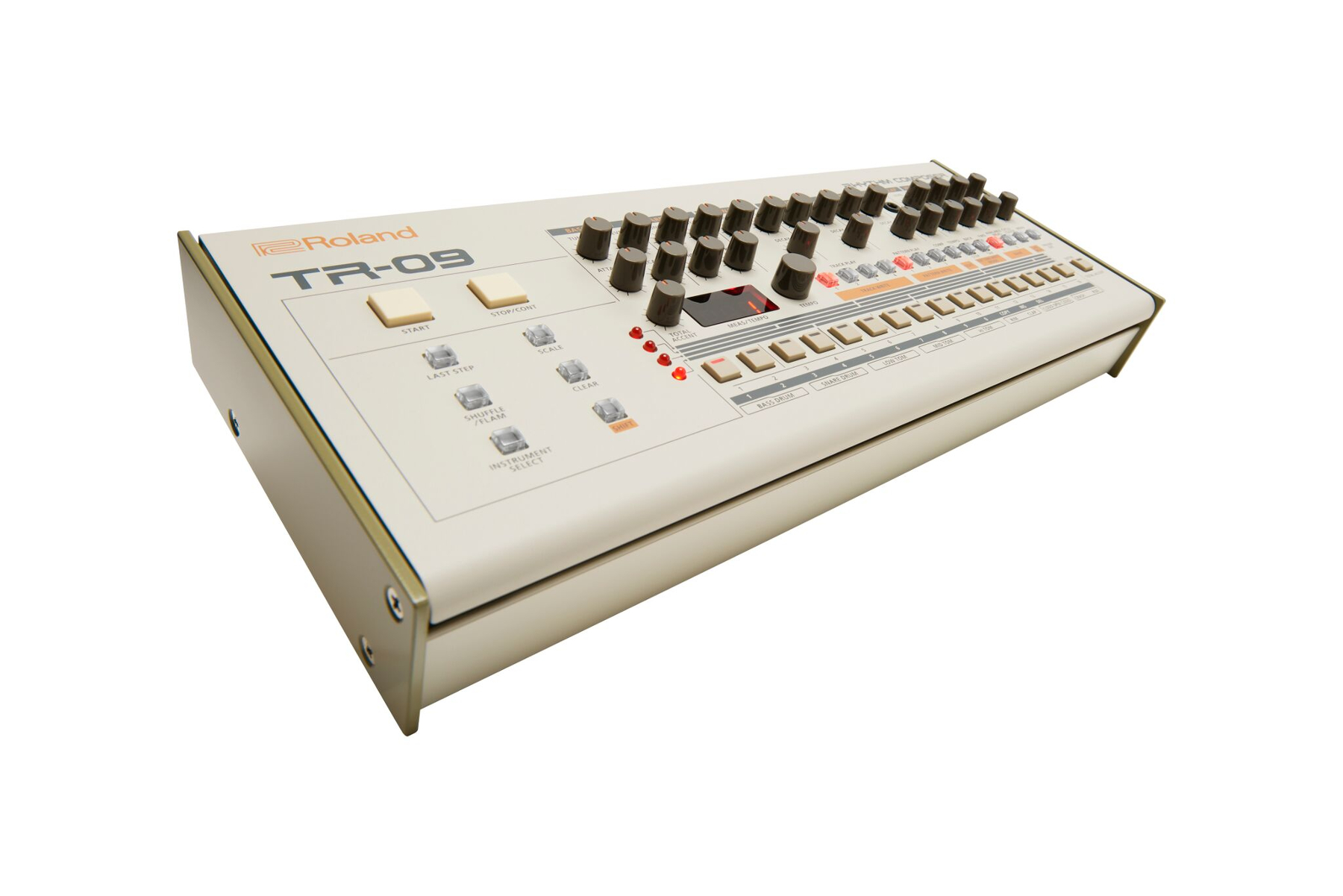

Roland's TR-09 takes inspiration from the classic TR-909 with its front-panel layout and user interface, and presents it in an ultra-compact recreation complete with hands-on control parameters, programmable write modes, four separate outputs via USB audio, and more.
Roland TR-09 Includes:
- DK-01 Owner's Manual
- Owner's Manual
- Leaflet "USING THE UNIT SAFELY"
- Alkaline battery (AA, LR6) x 4
Roland TR-09 Features:
- Ultra-compact recreation of the iconic TR-909 drum machine
- Retains the sound, character, and user interface of the original TR-909
- Hands-on control over many parameters, including tune, level, decay, etc.
- Programmable via classic Step and Tap write modes
- Continue playing beats even while switching between write and play modes
- Four separate outputs via USB audio
- Trigger output for controlling external instruments equipped with trigger input
- High-quality construction with metal front panel
- Highly portable for mobile music making
- Battery-operated (4 x AA) or USB powered
- 24-bit/96 kHz stereo IN/OUT USB audio interface
- Built-in powered mini-speaker for instant enjoyment
- Compatible with optional K-25m Keyboard Unit
Roland TR-09 Specifications:
- User Memory
- Patterns: 96 (2 banks x 3 groups x 16 patterns)
- Tracks: 8 (2 banks x 4 tracks)
- Kit: 1
- Steps
- 16 steps with 16 sub steps
- Instruments
- BASS DRUM
- SNARE DRUM
- LOW TOM
- MID TOM
- HI TOM
- RIM SHOT
- HAND CLAP
- CLOSED/OPEN HI HAT
- CRASH CYMBAL
- RIDE CYMBAL
- Controllers
- VOLUME knob
- START button
- STOP/CONT button
- LAST STEP button
- SCALE button
- SHUFFLE/FLAM button
- CLEAR button
- INSTRUMENT SELECT button
- SHIFT button
- TOTAL ACCENT knob
- TEMPO dial
- TRACK 1--4 buttons
- PATTERN 1--3 buttons
- COMP button
- TEMPO button
- BACK button
- FWD button
- AVAILABLE MEAS button
- CYCLE/GUIDE button
- MENU button
- ENTER button
- Main keys 1--16 (16 step buttons)
- BASS DRUM: TUNE, LEVEL, ATTACK, DECAY knobs
- SNARE DRUM: TUNE, LEVEL, TONE, SNAPPY knobs
- LOW/MID/HI TOM: TUNE, LEVEL, DECAY knobs
- RIM/CLAP: LEVEL knob
- HI HAT: LEVEL, CH DECAY, OH DECAY knob
- CRASH CYMBAL: LEVEL, CRASH TUNE knob
- RIDE CYMBAL: LEVEL, RIDE TUNE knob
- Effects:Compressor
- Indicators:
- 7 segments, 4 characters (LED)
- Scale LED
- Connectors:
- TRIGGER OUT jack: Mono miniature phone type
- PHONES jack: Stereo miniature phone type
- OUTPUT jack: Stereo miniature phone type
- MIX IN jack: Stereo miniature phone type
- MIDI (IN, OUT) connectors
- USB port: Micro-B type (Audio, MIDI)
- Power Supply:
- Rechargeable Ni-MH battery (AA, HR6) x 4
- Alkaline battery (AA, LR6) x 4
- USB bus power
- CurrentDraw:500 mA (USB bus power)
- Expected battery life under continuous use:
- Rechargeable Ni-MH battery: Approx. 6 hours (Varies depending on the specifications of the batteries, capacity of the batteries, and the conditions of use)
- Dimensions (WxDxH): 12-1/8" x 5-1/8" x 2-1/16"
- Weight (including batteries, excluding Boutique Dock): 2 lbs 3oz
