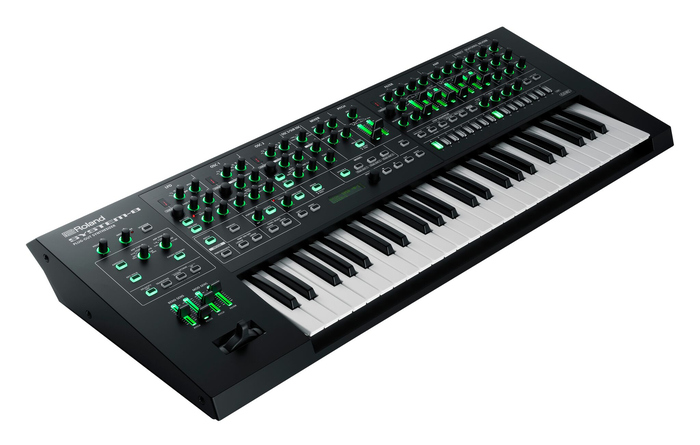

Roland SYSTEM-8
PLUG-OUT Synthesizer

OUR PART #  SYSTEM-8

Our Price: $1,499.00
(Low Price Guarantee)
In Stock

Recommended Accessories

Roland's SYSTEM-8 is equipped with a palette of sounds spanning over four decades of legendary Roland synths. Its next-gen Analog Circuit Behavior (ACB) engine powers an eight-voice, three-oscillator monster with stunning filters and effects, highly versatile LFOs, and a massive array of high-resolution knobs and sliders to control it all.

Roland SYSTEM-8 Features:

  • Versatile performance synthesizer with advanced ACB technology and 49 full-size keys
  • Internal sound engine delivers classic analog tones and dynamic modern sounds with analog vibe
  • Hosts up to three PLUG-OUT synths; JUPITER-8 and JUNO-106* PLUG-OUTs included (JUNO-106 is scheduled for release in 2017)
  • Advanced low-pass, high-pass, and side-band filters with high-resolution controls
  • Massive real-time control with dedicated knobs, sliders, and buttons
  • Polyphonic step sequencer with classic TR-REC style interface
  • Arpeggio, vocoder, and polyphonic Chord Memory functions
  • CV/Gate outputs for interfacing with modular synths and vintage gear
  • Large selection of onboard effects with hands-on controls
  • USB audio/MIDI interface and control surface mode

Roland SYSTEM-8 Specifications:

  • Keyboard: 49 Keys (with velocity)
  • Sound Generator Section
    • Models: SYSTEM-8, PLUG-OUT1, PLUG-OUT2, PLUG-OUT3
  • Maximum Polyphony
    • 8 voices (MODEL: SYSTEM-8)
    • MODEL: PLUG-OUT1, 2 and 3 depend on PLUG-OUT software

    -         User Memory

  • Patch: 64 (8 memories x 8 banks, per onemodel)
    • Performance: 64 (8 memories x 8 banks)
  • Structure Elements
    • MODEL: SYSTEM-8 is as follows
    • (MODEL: PLUG-OUT 1, 2 and 3 are depend on PLUG-OUT software)
  • LFO Section
    • Variation: 1 (Single LFO), 2 (Dual LFO), 3 (Resonanced Pulse LFO)
    • Waveform: <VARIATION 1>: SINE, TRIANGLE, SAW, SQUARE, Sample&Hold, Random, <VARIATION 2>: 6 types, <VARIATION 3>: 6 types
    • Knobs: FADE TIME, RATE, PITCH, FILTER, AMP
    • Controllers: KEY TRIGGER, TRIGGER ENVELOPE
  • Oscillator 1 Section
    • Variation: 1, 2
    • Waveform: <VARIATION 1>: SAW, SQUARE, TRIANGLE, SAW2, SQUARE2, TRIANGLE2, <VARIATION 2>: 6 types
    • Knobs: COLOR, MODULATION Source (MANUAL, LFO, P.ENV, F.ENV, A.ENV, OSC 3), OCTAVE (64, 32, 16, 8, 4, 2), COARSE TUNE, FINE TUNE
    • Modulation: CROSS Modulator
  • Oscillator 2 Section
    • Variation: 1, 2
    • Waveform: <VARIATION 1>: SAW, SQUARE, TRIANGLE, SAW2, SQUARE2, TRIANGLE2, <VARIATION 2>: 6 types
    • Knobs: COLOR, MODULATION Source (MANUAL, LFO, P.ENV, F.ENV, A.ENV, OSC 3), OCTAVE (64, 32, 16, 8, 4, 2), COARSE TUNE, FINE TUNE
    • Modulation: RING Modulator, Oscillator SYNC
  • Oscillator 3/Sub OscillatorSection
    • Waveform: SINE (-2 octave), SINE (-1 octave), SINE, TRIANGLE?RIANGLE (-1 octave)?RIANGLE (-2 octave)
    • Knobs: COLOR, TUNE
  • MixerSection
    • Level: OSC 1, OSC 2, OSC 3/SUB OSC, NOISE
    • Noise: WHITE Noise/PINK Noise
  • PitchSection
    • Knob: ENVELOPE Depth
    • Envelope: ATTACK Time, DECAY Time
  • Filter Section
    • Variation: 1, 2
    • Filter Type: <VARIATION 1>: LPF (-24 dB), LPF (-18 dB), LPF (-12 dB), HPF (-12 dB), HPF (-18 dB), HPF (-24 dB), <VARIATION 2>: 6 types
    • Knobs: CUTOFF, RESONANCE, VELOCITY SENS, ENVELOPE Depth, KEY Follow, HPF CUTOFF
    • Envelope: ATTACK Time, DECAY Time, SUSTAIN LEVEL, RELEASE Time
  • Amplifier Section
    • Knobs: VELOCITY SENS, TONE, LEVEL
    • Envelope: ATTACK Time, DECAY Time, SUSTAIN LEVEL, RELEASE Time
  • Effect Section
    • Type: OVER DRIVE, DISTORTION, METAL, FUZZ, CRUSHER, PHASER
    • Knobs: TONE, DEPTH
  • Delay/Chorus Section
    • Type: DELAY, PANNING DELAY, CHORUS 1, CHORUS 2, FLANGER, DELAY + CHORUS
    • Knobs: TIME, LEVEL
  • Reverb Section
    • Type: AMBIENCE, ROOM, HALL 1, HALL 2, PLATE, MODULATION
    • Knobs: TIME, LEVEL
  • OtherSection
    • Knobs: PORTAMENTO, TEMPO
    • Controller: LEGATO, TEMPO SYNC
    • Key Mode: MONO/UNISON/POLY
  • StepSequencer
    •  Track
    • 1 per Patch (step pattern is saved as a patch)
  • Step
    • 1 - 64 steps
  • Recording Method
    • Step recording, Realtime recording
  • Controllers
    • SCALE, PLAY MODE, GATE, SHUFFLE, FIRST STEP, LAST STEP
  • Other
    • VOLUME, INPUT volume, ARPEGGIO, CHORD MEMORY, VOCODER, KEYHOLD, VELOCITY OFF, TRANSPOSE, OCTAVE
  • Controllers
    • Pitch bend and modulation lever, BEND SENS PITCH, BEND SENS FILTER, MOD SENS PITCH, MOD SENS FILTER
  • Display
    • 16 characters 2 line LCD
  • External Storage
    • SD Card (SDHC supported) for backup/restore function
  • Connectors
    • PHONES jack: Stereo 1/4-inch phone type
    • OUTPUT (L/MONO, R) jacks: 1/4-inch TRS phone type
    • INPUT (L/MONO, R) jacks: 1/4-inch phone type
    • CV/GATE OUTPUT jacks: Miniature phone type
    • (CV: This jack supports OCT/V (Hz/V is not supported). GATE: This jack outputs +10 V.)
    • TRIGGER IN jack: Miniature phone type
    • PEDAL (HOLD, CONTROL) jacks: 1/4-inch phone type
    • MIDI (IN, OUT) connectors
    • USB port: USB type B (Audio/MIDI)
    • DC IN jack
  • PowerSupply
    • AC Adapter
  • Current draw
    • 2 A
  • Dimensions
    • 34-11/16" W x 14-3/8" D x 4-5/16" H
  • Weight (excluding AC adapter)
    • 13 lbs 1 oz
  • Accessories
    • Owner's manual
    • AC adapter
    • Power cord
