Product Overview

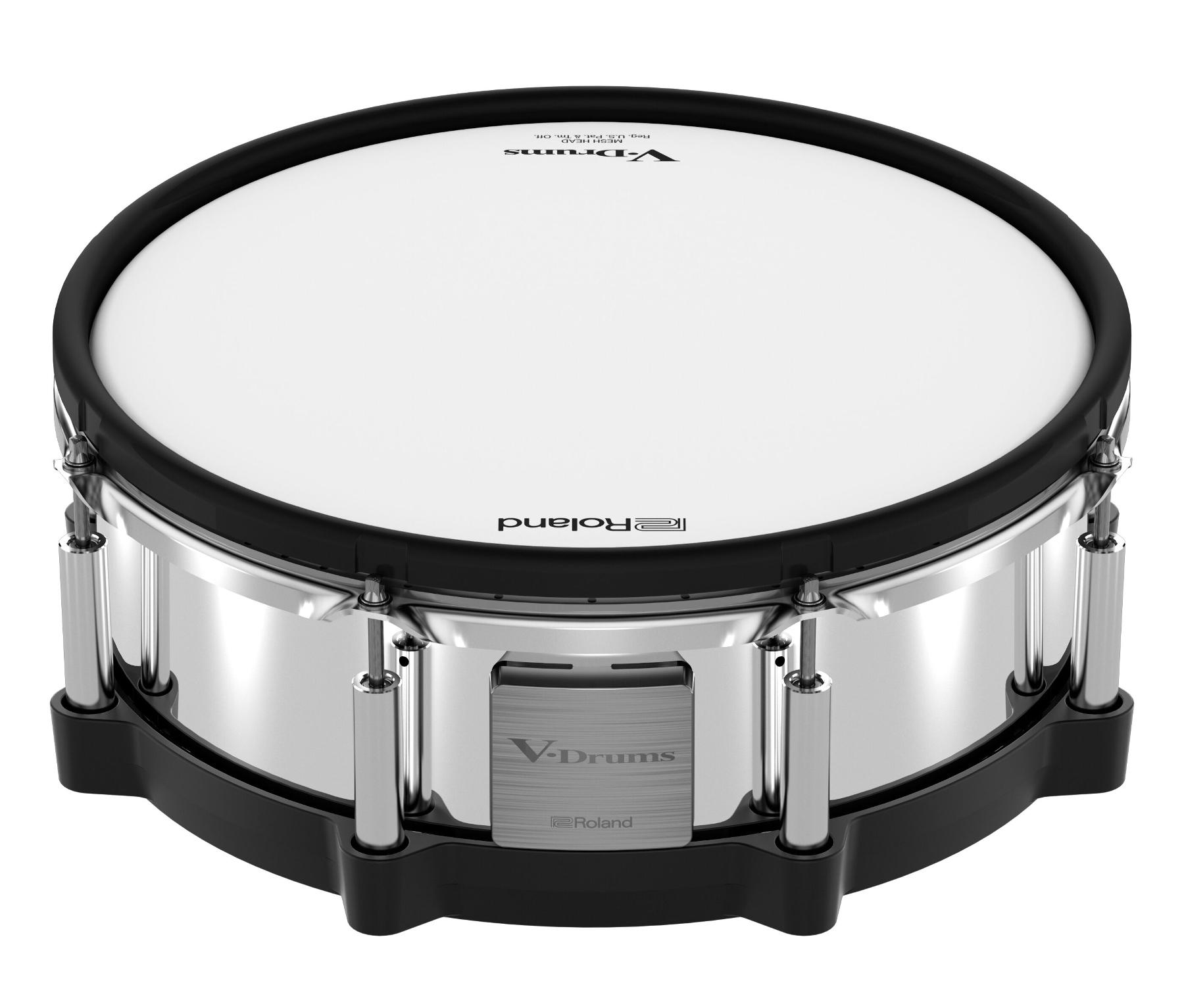

Roland's PD-140DS V-Pad Digital Snare is equipped with a high-resolution multi-sensor system that accurately and naturally responds to your drumming technique with acoustic-like snare drum playability. The 14" V-Pad includes Roland's advanced V-Drums technology for accurately detecting striking position on the head, and an advanced 3-layer mesh head allows for a more natural snare feel.
The PD-140DS is optimized when connected to the TD-50 Sound Module.
Roland PD-140DS Includes:
- Owner's manual
- Connection cable
- Drum key
Roland PD-140DS Features:
- High-resolution triggering designed to connect digitally to the TD-50 Drum Sound Module, providing superior snare sound and accurate positional detection.
- Natural cross-stick playability using a traditional cross stick hand technique
- Comfortable playing feel and natural response with a 3-layer mesh head
- Standard 14” diameter snare drum size for exceptional playability and acoustic like performance
Roland PD-140DS Specifications:
- Pad Size: 14"
- Shell Depth: 4.3"
- Tension Rods: 8
- Head: 3-ply mesh head (Floating mid-layer structure)
- Available playing methods (Triggers)
- Head shot (High resolution positional detection, Wide dynamic range)
- Rim shot (Depth detection, Wide dynamic range)
- Cross stick (Automatic switching)
- Brush sweep
- Sensor System
- Multi-element sensor system
- Head sensor
- Position sensors (x3)
- Rim sensor
- Cross stick sensors (x3)
- Built-in sensing processor
- Supported covering size
- 98 W x 1,060 L mm
- Thickness: 1 mm or less
- Connector
- DIGITAL TRIGGER OUT plug
- (compatible with Roland drum sound module equipped with DIGITAL TRIGGER IN port)
- Power Supply
- Supplied from DIGITAL TRIGGER IN port (DC 5 V)
- Current Draw
- Dimensions (WxDxH): 15" x 15" x 6-5/16"
- Weight: 10 lbs 13 oz
