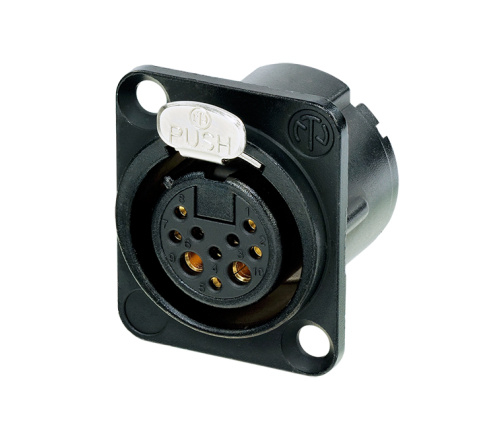

Neutrik NC10FD-LX-B
10-Pin D-Size Female XLR Panel Connector

OUR PART #:  NC10FD-LX-B

Neutrik's NC10FD-LX-B is an 8 + 2 pole female D-size receptacle featuring black chrome metal housing and a duplex ground contact.
Learn More
Our Price: $17.50
List Price: $20.00
Save up to 21% when you order by quantity!
  • Buy 25: $16.92 each.
  • Buy 50: $16.34 each.
  • Buy 100: $15.75 each.
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NC10FD-LX-B
Qty:
Similar Products

Neutrik's NC10FD-LX-B is an 8 + 2 pole female D-size receptacle featuring black chrome metal housing and a duplex ground contact.

Neutrik NC10FD-LX-B Features:

  • Suitable for data offering CAT5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
  • Superior ruggedness compared to RJ45 type connectors
  • All metal housing offers best overall RF protection and electromagnetic shielding
  • D-size housing provides installation compatibility with industry standard D mounting dimensions
  • Receptacle with duplex ground contact for excellent signal integrity

Neutrik NC10FD-LX-B Specifications:

  • Electrical Specifications:
    • Contact resistance: 3 mOhms
    • Dielectric strength: 1 kVdc
    • Insulation resistance: > 10 GOhms (initial), 0.1 (after damp heat test)
    • Number of electronical contacts: 8 + 2
    • Rated current per contact: 16 A (power pins), 3 A (data pins)
    • Cable shield - shell connection: choosable
    • Transmission performance: CAT5e
  • Mechanical Specifications:
    • Cable O.D.: 8.0 - 10.0 mm
    • Insertion force: 20 N
    • Withdrawal force: 20 N
    • Lifetime: > 1000 mating cycles
    • Wiresize: 2.5 mm² / AWG 14 (power pins), 1 mm² / AWG 18 (data pins)
  • Material Specifications:
    • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Locking element: Steel Ck67
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Black chromium
  • Environmental Specifications:
    • Flammability: UL 94 HB
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30°C to +80°C
    • Manufacturing Standard: IEC 61076-2-103
