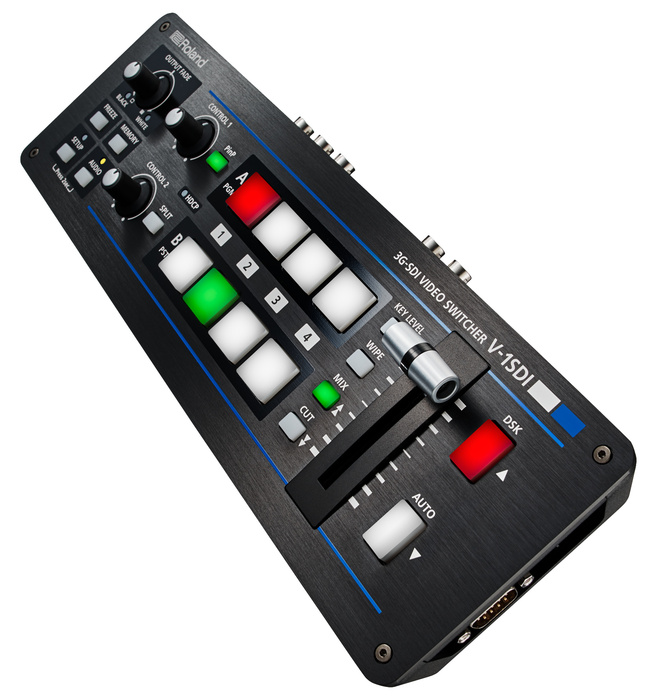

Roland Professional A/V V-1SDI 3x SDI and 1x HDMI Input 1080p Video Switcher

The V-1SDI from Roland is a versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources. This includes cameras, smart phones, computers, tablets, and Blu-ray players. Compact and portable, the V-1SDI delivers professional switching functionality with its easy to use hardware interface, complete with T-Fader and easy-to-see backlit buttons.

With its support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of longer SDI cable lengths, making this compact solution suitable for events and applications, even in large venues, as well as using the most professional level of SDI camera sources.

Roland Professional A/V V-1SDI Applications:

• Videography and Webcast
• Visual Performance
• Education
• Events and Meetings

Roland Professional A/V V-1SDI Includes:

• V-1SDI unit
• AC adapter
• Power cord
• Cord hook
• Owner's manual

Roland Professional A/V V-1SDI Features:

• Support for SDI and HDMI cameras, smartphones, tablet computers, PCs, etc.
• Easy to operate with hardware controls
• Compact size
• Supports up to Full HD 1080p
• 3 x 3G-SDI and 2 x HDMI inputs (HDCP Compliant)
• 2 x 3G-SDI and 1 x HDMI output (HDCP Compliant)
• Quad multi-viewer with source labelling and audio metering
• Composition effects including DSK (Downstream Keyer), picture-in-picture,and split
• Full 14-channel audio mixer included
• Software control using V-1SDI RCS application for Mac and PC and remote control via RS-232 connection
• Inputs:
  • The V-1SDI has (2) dedicated 3G SDI inputs, a third channel input that supports 3G SDI or HDMI and a fourth channel HDMI input that also includes scaling.
• Outputs:
  • The V-1SDI has (2) 3G SDI Outputs and one HDMI output.
• Quad Input Multi-viewer:
  • The four-way multi-view preview screen shows all 4 input sources on a single display for confident monitoring.
• Composition Effects:
  • The V-1SDI includes DSK (downstream keying), Picture-in-Picture (PinP), Split and Quad compositing effects ideal for creating news style broadcasts and corporate presentation content.
• Audio Mixing
  • Included is a 14 channel digital audio mixer.
• Remote Control
  • Remote control is possible with the V-1SDI RCS dedicated computer software for Mac and PC connected via a USB cable.

Roland Professional A/V V-1SDI Specifications:

• Video Processing: 4:2:2 (Y / Pb / Pr), 8-bit
• Input Connectors:
  • SDI INPUT 1--3: BNC x 3 (Conforms to SMPTE 424M (SMPTE 425M-AB), 292M)
  • HDMI INPUT 3--4: Type A (19-pin) x 2 (HDCP Supported) (INPUT 3: SDI or HDMI selected.)
• Output Connectors:
  • SDI OUT PGM: BNC x 1
  • SDI OUT PVW: BNC x 1 (Conforms to SMPTE 424M (SMPTE 425M-AB), 292M)
  • HDMI OUT MULTI-VIEW: Type A (19-pin) x 1 (HDCP Supported)
• Input Formats:
  • SDI INPUT 1-3 Conforms to SMPTE 296M, SMPTE 274M
  • HDMI INPUT 3: 720 / 59.94p, 720 / 50p SMPTE 296M (FORMAT switch = 720p)
  • HDMI INPUT 3: 1080 / 59.94i, 1080 / 50i, 1080 / 59.94p, 1080 / 50p SMPTE 274M (FORMAT switch = 1080i or 1080p) (The input interlaced video signal is converted to progressive video signal by internal processing.)(The video signal frame rate can be selected at the SETUP menu (59.94 or 50).)
  • HDMI INPUT 4: 80 / 59.94i, 576 / 50i, 480 / 59.94p, 576 / 50p, 720 / 59.94p, 720 / 50p, 1080 / 59.94i, 1080 / 50i, 1080 / 59.94p, 1080 / 50p
  • VGA (640 x 480 / 60Hz), SVGA (800 x 600 / 60Hz), XGA (1024 x 768 / 60Hz)
  • WXGA (1280 x 768 / 60Hz), SXGA (1280 x 1024 / 60Hz)
  • FWXGA (1366 x 768 / 60Hz), SXGA+ (1400 x 1050 / 60Hz)
  • UXGA (1600 x 1200 / 60Hz), WUXGA (1920 x 1200 / 60Hz) (The refresh rate is the maximum value of each resolution. Conforms to VESA DMT Version 1.0 Revision 11. 1920 x 1200/60 Hz: Reduced blanking. The input interlaced video signal is converted to progressive video signal by internal processing. The video signal frame rate can be selected at the SETUP menu (59.94 or 50).)
• Output formats:
  • SDI OUT(PGM / PVW) Conforms to SMPTE 296M, 274M
  • HDMI OUT MULTI-VIEW: 720 / 59.94p, 720 / 50p SMPTE 296M (FORMAT switch = 720p); 1080 / 59.94i, 1080 / 50i SMPTE 274M (FORMAT switch = 1080i); 1080 / 59.94p, 1080 / 50p SMPTE 274M (FORMAT switch = 1080p The video signal frame rate can be selected at the SETUP menu (59.94 or 50).)
• Transition Video Effects:
  • CUT
  • MIX (DISSOLVE / FAM / NAM / MOSAIC)
  • WIPE (30 types)
• Composition Video Effects:
  • PinP
  • SPLIT
  • QUAD
  • DSK (Luminance Key, Chroma Key)
• Audio Processing: Sampling rate: 24-bits / 48kHz
• Audio Formats:
  • SDI: Linear PCM, 24-bits / 48kHz, 2ch Conforms to SMPTE 299M
  • HDMI: Linear PCM, 24-bits / 48kHz, 2ch
• Input Connectors:
  • Digital:SDI INPUT 1--3 (BNC) x 3 SMPTE 299M, HDMI INPUT 3--4 (HDMI Type A 19-pin) x 2
  • Analog: AUDIO IN (RCA phono type), MIC (Stereo mini type, plug-in power supported)
• Digital Output Connectors:
  • SDI OUT PGM: BNC x 1 SMPTE 299M
  • SDI OUT PVW: BNC x 1 SMPTE 299M
  • HDMI OUT MULTI-VIEW: Type A (19-pin) x 1
• Analog Output Connectors:
  • AUDIO OUT (RCA phono type)
  • PHONES (Stereo mini type)
• Input Level:
  • AUDIO IN: -10dBu (Maximum: +8dBu)
  • MIC: -41-- -13dBu (Maximum: -1dBu)
• Input Impedance:
  • AUDIO IN: 15kΩ
  • MIC: 10kΩ
• Output Level:
  • AUDIO OUT: -10dBu (Maximum: +8dBu)
  • PHONES: 92mW + 92mW (32Ω)
• Output Impedance:
  • AUDIO OUT: 1kΩ
  • PHONES: 10Ω
• Audio Effects:
  • EQ
  • Delay
  • Compressor
  • HPF
  • Gate
  • Reverb
  • Mastering effect
• Others:
  • Other Connectors: USB: B Type (for remote control from PC), RS-232: DB-9 type
  • Other Functions: MEMORY (8 types), FREEZE (input video captured), OUTPUT FADE (Audio, Video: WHITE or BLACK)
  • Power Supply: AC Adapter
  • Current Draw: 2.1A
  • Power Consumption: 25W
  • Operation Temperature: +32° to +104°F (+0° to +40°C)
  • Dimensions (WxDxH): 12-1/3" x 4-1/4" x 2-1/3" (313 x 108 x 59mm)
  • Weight (excluding AC adapter): 2lbs, 10.4oz (1.2kgs)
