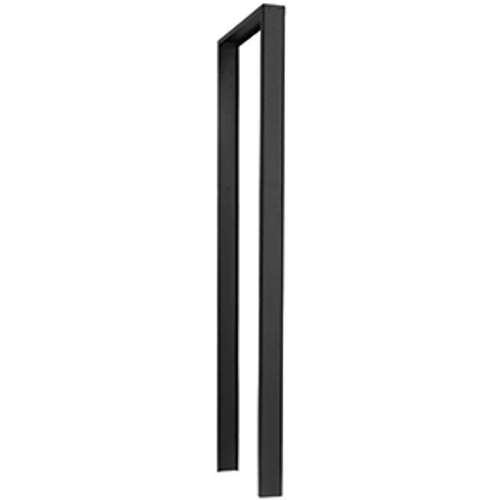

Lowell LCC4-4427 Cable Chase for 44 Unit Racks, 27" Deep, Black

The Lowell Light Mfg. LCC4-4427 is a three piece accessory for Lowell 44U gangable racks. The cable chase is engineered to provide extra wiring space between racks or at the end of a multi-bay configuration. Each cable chase offers 4" (102 mm) of usable space and features beveled edges, a bolt-on front, rear and top plus joining hardware. To facilitate cable entry, the top piece is complete with compound knockouts size 2"- 1" (51-25 mm). When the channel is used between racks the beveled edges align to those of the rack providing a chiseled appearance. When the channel is used on a single rack or at the end of a bay, closure may be accomplished using one of Lowell's side panels.

Features

• Assembles without field drilling using 10-32 nuts and bolts (provided)
• Insert four bolts through the channel assembly to secure to rack
• If a side panel is used, it mounts to keyhole slots in the channel
• 16-gauge steel
• Black wrinkle powder epoxy finish
• Ships unassembled
• Includes hardware
• Made in the USA

Specifications

• RU: 44
• Overall height: 83" (2108 mm)
• Overall depth: 27" (686 mm)
• Channel depth: 4" (102 mm)
