Product Overview

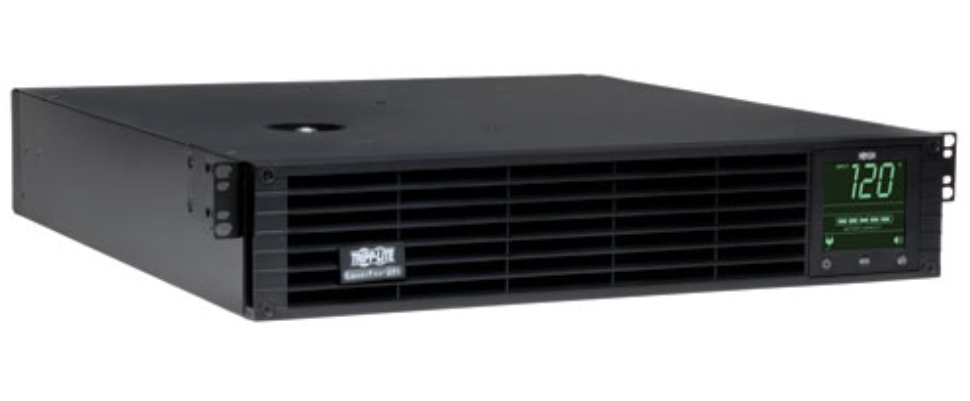

The Tripp Lite SM3000RMXL2UTAA SmartPro Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Network management interfaces support communications via USB, RS-232 and optional slot for network management card options, such as Tripp Lite's SNMPWEBCARD. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off(EPO) interface. LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
Tripp Lite SM3000RMXL2UTAA Includes:
- SM3000RMXL2UTAA UPS system
- PowerAlert Software with USB, Serial & EPO cabling
- Four post rackmount installation kit
- Instruction manual
Tripp Lite SM3000RMXL2UTAA Features:
- Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
- Tripp Lite SM3000RMXL2UTAA line interactive 2U rack/tower UPS with 3000VA / 3kVA capacity and extended runtime options
- Line interactive UPS with Automatic Voltage Regulation(AVR) corrects brownouts and overvoltages from 83 to 145V
- NEMA L5-30P input plug; 8 NEMA 5-15/20R and 1 L5-30R output receptacles, Two independently switchable output load banks
- Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
- High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
- Internal batteries offer 10 minutes at 50% load (1440W) and three minutes at 100% load(2880W)
- Extended runtime is available with optional BP48V24-2U / BP48V242UTAA(limit 1) OR BP48V60RT3U / BP48V60RT3UTAA(no limit)
- External battery configurations require the use of Tripp Lite's External Battery Configuration Software(see manual)
- Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
- Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus seven selectable screens of detailed UPS and site power information
- LCD interface also supports a number of advanced user setup and operating preferences
- Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables two post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
- Built-in USB, RS-232 and optional slot for network management card options, such as Tripp Lite's SNMPWEBCARD
- HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable
Tripp Lite SM3000RMXL2UTAA Specifications:
- Output:
- Output Volt Amp Capacity (VA): 3000
- Output kVA Capacity (kVA): 3
- Output Watt Capacity (Watts): 2880
- Output kW Capacity (kW): 2.88
- Power Factor: .96
- Nominal Output Voltage(s) Supported: 110V; 115V; 120V
- Nominal Voltage Details: 120v nominal output in battery mode
- Frequency Compatibility: 60 Hz
- Output Voltage Regulation (Line Mode): +6%, -14%
- Output Voltage Regulation (Battery Mode): +/-5%
- Output Receptacles: (8) 5-15/20R; (1) L5-30R
- Load Management Receptacles: Two switchable single outlet 5-15/20R load banks
- Output Circuit Breakers: Two 20A output breakers protect 4 5-15/20R outlets each
- Output AC Waveform (AC Mode): Pure Sine wave
- Output AC Waveform (Battery Mode): Pure Sine wave
- Input:
- Rated input current (Maximum Load): 24A
- Nominal Input Voltage(s) Supported: 120V AC
- UPS Input Connection Type: L5-30P
- UPS Input Cord Length (ft.): 10
- Recommended Electrical Service: 30A 120V
- Input Phase: Single-Phase
- Battery:
- Full Load Runtime (min.): 3 min. (2880w)
- Half Load Runtime (min.): 10 min. (1440w)
- Expandable Battery Runtime: Extended runtime supported via optional external battery packs
- External Battery Pack Compatibility: BP48V24-2U(limit 1); BP48V60RT-3U(multi-pack compatible); BP48V27-2US(multi-pack compatible)
- DC System Voltage (VDC): 48
- Battery Recharge Rate (Included Batteries): Less than 5 hours from 10 to 90%
- Internal UPS Replacement Battery Cartridge: RBC58-2U
- Battery Access: Front panel battery access door
- Battery Replacement Description: Hot-swappable, replaceable batteries
- Expandable Runtime: Yes
- Voltage Regulation:
- Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
- Overvoltage Correction: Input voltages between 127 and 145 are reduced by 12%
- Undervoltage Correction: Input voltages between 108 and 96 are boosted by 12%
- Severe Undervoltage Correction: Input voltages between 83 and 95 are boosted by 24%
- User Interface, Alerts & Controls:
- Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
- Switches: 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
- Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
- Audible Alarm: Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
- Surge / Noise Suppression:
- UPS AC Suppression Joule Rating: 570
- EMI / RFI AC Noise Suppression: Yes
- AC Suppression Response Time: Instantaneous
- Physical:
- Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount
- Installation Form Factors Supported with Optional Accessories: 2 post rackmount(2POSTRMKITWM); Wallmount(2POSTRMKITWM); Tower(2-9USTAND)
- Primary Form Factor: Rackmount
- UPS Power Module Dimensions (HxWxD): 3.5" x 17.5" x 19"
- Rack Height (U Spaces): 2
- Minimum Required Rack Depth: 26"
- UPS Power Module Weight: 84.6 lbs
- UPS Shipping Dimensions (HxWxD): 9" x 23.5" x 20"
- Shipping Weight: 84.6 lbs
- Cooling Method: Fan
- UPS Housing Material: Steel
- Environmental:
- Operating Temperature Range: +32° to +104°F (0° to +40°C)
- Storage Temperature Range: +5° to +122°F (-15° to +50°C)
- Relative Humidity: 0 to 95%, non-condensing
- AC Mode BTU / Hr. (Full Load): 409
- Communications:
- Communications Interface: USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
- Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
- PowerAlert Software: Included
- Communications Cable: USB, DB9 and EPO cabling include
- Line / Battery Transfer:
- Transfer Time: 5 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode)
- Low Voltage Transfer to Battery Power (Setpoint): 83
- High Voltage Transfer to Battery Power (Setpoint): 145
- Special Features:
- Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
- High Availability UPS Features: Hot swappable batteries
- Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
- Certifications:
- UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); TAA Compliant; ENERGY STAR Qualified
- Warranty:
- Product Warranty Period (Worldwide): 2-year limited warranty
- Connected Equipment Insurance (U.S., Canada & Puerto Rico): $250,000 Ultimate Lifetime Insurance
