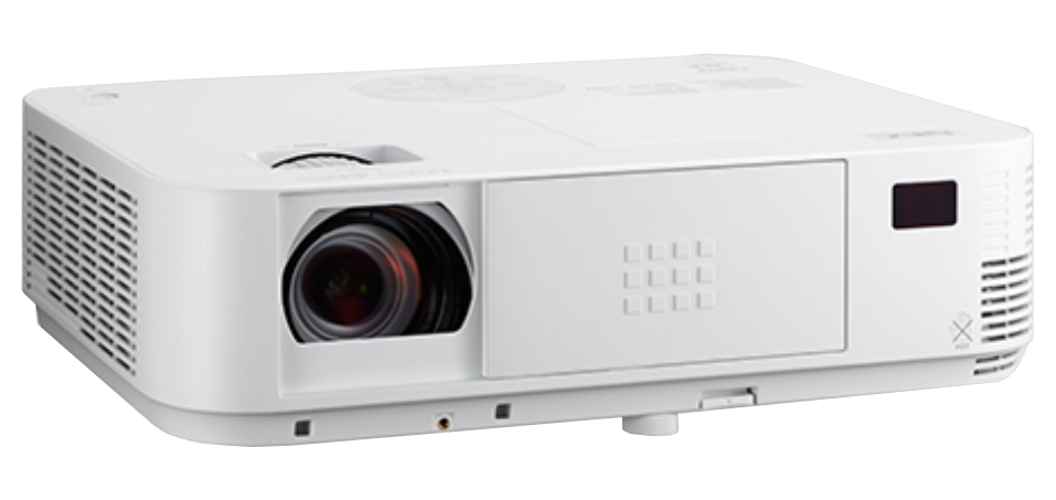

NEC Visual Systems NP-M363X
600-lm XGA Projector with Dual HDMI Inputs and 1.7X Optical Zoom


Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

The NEC Visual Systems NP-M363X M Series projector uses the latest DLP(R) technology from Texas Instruments to provide all the essential features that you need to connect with your audience. The 3600-lumen, WXGA (1280 x 800) native resolution NEC M363X is ideal for education and small-to-medium-sized business environments that need essential features, including bright images, automatic technologies and eco-friendly appeal. The M363X offers lamp life up to 8,000 hours and a high contrast ratio of up to 10,000:1, while Crestron Roomview aids in emergency messaging.

NEC Visual Systems NP-M363X Includes:

  • Remote control
  • Batteries
  • Power cord
  • RGB signal cable
  • Built-in Lens cover
  • User manual
  • Quick Start Guide
  • Product registration card
  • CD-ROM
  • Carrying case

NEC Visual Systems NP-M363X Features:

  • Easy wireless communication enhances portability
  • Maintenance free design eliminates the hassle and time spent monitoring and/or changing filters
  • USB Viewer allows you to present without a PC using a USB flash drive
  • Powerful 20W speaker provides volume needed for large rooms
  • ECO Mode™ technology helps extend lamp life and lowers power consumption with Constant Brightness which prevents the usual drop in brightness over time while maximizing lamp life
  • Integrated active lens cover mutes audio and video while lowering the lamp power to 25% to conserve energy
  • Automatic keystone correction technology instantly projects a square image even when the projector is set up at a steep offset angle to the screen
  • Filter free with shielded engine eliminates the hassle and time spent monitoring and/or changing filters
  • NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
  • Automatic keystone correction
  • Wireless LAN (Optional)
  • Active Lens Cover
  • USB Viewer
  • Cornerstone - available using geometric correction software
  • Geometric Correction
  • Auto power on
  • ECO Mode technology
  • Closed captioning
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Sleep timer
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense

NEC Visual Systems NP-M363X Specifications:

  • Optical:
    • Display Technology: DLP (0.55" DMD)
    • Light Output(Lumens): 3600 normal
    • Resolution:
      • Native: XGA 1024 x 768
      • Maximum: WUXGA 1920 x 1200
    • Contrast Ratio (up to): 10,000:1
    • Lamp Type: 250W AC / 150W eco
    • Lamp Life (up to): 3500 hours normal / 8000 hours eco
    • Screen Size (diagonal): 30" to 300" (0.76 to 7.6m)
    • Throw Ratio: 1.5 – 2.55:1
    • Projection Distance: 3.0 to 52.4 ft. (0.9 to 15.97m)
    • Projector Angle: 10.5° to 17.6°
    • Lens:
      • Zoom: 1.7
      • Focus: Manual
      • F number, fnumber: F=2.4 to 3.1, f=17.09 to 29.05mm
    • Keystone Correction: +/- 25° horizontal, +/- 30° vertical
  • Signal Compatibility/Connectivity:
    • Synchronization Range:
      • Horizontal (Analog/Digital): 15-100 kHz
      • Vertical (Analog/Digital): 50-120 Hz
    • Supported Video Standards: NTSC, NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
    • SD/HD Video Signal Compatibility: Y/CB/Cr component (with optional adaptor ADP-CV1E) 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    • PC Signal Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
    • Macintosh Compatibility: Yes
    • Input/Output Terminals:
      • RGB1(analog): VGA 15-pin D-sub
      • RGB3(digital): HDMI w/ HDCP
      • RGB4(digital): HDMI w/ HDCP
      • RGB5(digital): USB A type
      • Video 1: RCA
      • Audio 1: L/R RCA (shared by video sources)
      • Audio 2: 1/8 in. stereo
      • Audio 3: Microphone
      • Monitor out: VGA 15-pin D-sub
      • Audio out: Yes (variable)
    • Audio : 20W speaker
    • External Control: RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
    • Sync Compatiblity: Separate Sync / Composite Sync / Sync on G
  • Electrical:
    • Power Requirements: 100-240V AC, 50/60 Hz
    • Input Current: 3.6A/1.8A
    • Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving): 316W / 205W / 2.6W / 0.2W
  • Mechanical:
    • Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
    • Dimensions (WxDxH): 14.5" x 11.5" x 4.3" (368 x 292 x 108mm)
    • Net Weight: 7.7 lbs. (3.5 kg)
    • Fan Noise: 36 dB normal / 31 dB eco
    • Regulations: UL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B
  • Environmental:
    • Operating Temperature: 41-104°F (5-40°C)
    • Humidity: 20-80% non-condensing
    • Storage: -14-122°F (-10-50°C)
  • Limited Warranty: 2 years. First year Instacare Service. Lamp warranty is 1 year or 500 hours, whichever comes first
