Altinex TP315-102
HDMI Over AnyWire Reciever

OUR PART #:  TP315-102

The Altinex TP315-102 HDMI over Anywire receiver allows the receipt of 1080P HDMI signals up to 300 m using a simple 2-conductor cable.
Learn More
Altinex TP315-102 Receiver Mechanical Specs
Altinex TP315-102 Receiver Electical Specs
Altinex TP315-102 Receiver General Specs

Click a thumbnail to see more images. (5 total)

Our Price: $425.60
List Price: $475.00
You save 10%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Altinex TP315-102
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

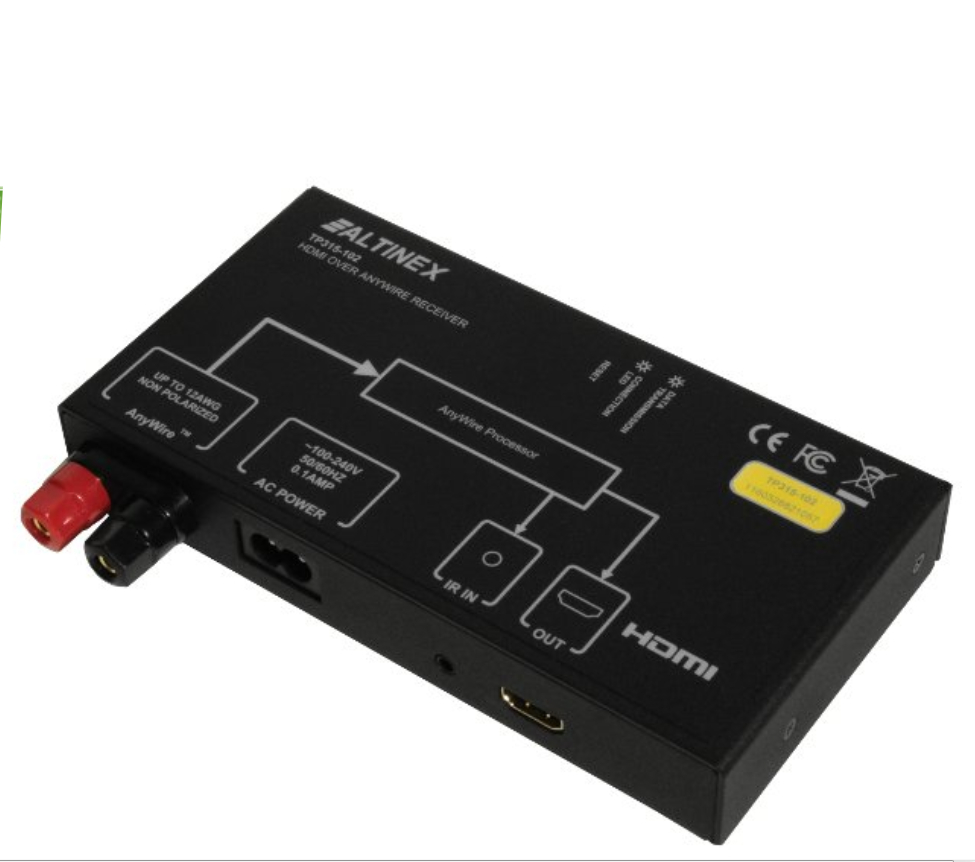

The Altinex TP315-102 HDMI over Anywire receiver allows the receipt of 1080P HDMI signals up to 300 m using a simple 2-conductor cable. A single transmitter is capable of driving up to four receivers using either four individual wire pairs over 300 m each, or by daisy chaining the receivers. The only restriction being the wire pair from the transmitter to each receiver cannot be bundled together, as crosstalk will occur.

The TP315-102 is an economical solution for many audiovisual installations. The 2-wire solution makes installation easy without the need to cut and splice wires and install expensive connectors or purchase costly cables. Simply route your wires, cut and trim the installation, and connect to the terminals. That’s it!

The unique design of the Anywire Receiver provides stable video over greater distances than other designs. IR pass-through for receiver side to transmitter side control is provided without corrupting the HDMI signal during transmission of IR signals.

Operation does not require any user control or interaction. Simply connect the Anywire input and, when the transmitter detects the receiver, the receiver begins video transmission to the display.

NOTE: See Attached Photos for Product Specifications

Altinex TP315-101 Features:

  • HDMI over 2-conductor cable
  • Automatic input detection
  • HDMI resolutions 720p/1080p
  • Transmission up to 300 meters (depending on wire type)
  • IR pass-through control
  • HDCP compliant
  • Fixed EDID
