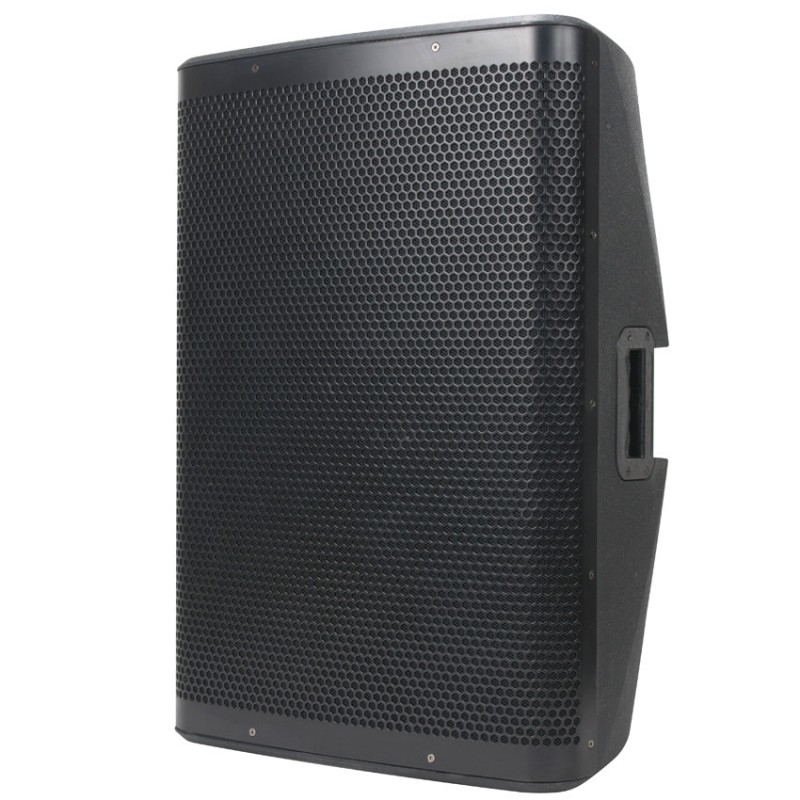

American Audio CPX15A
15" Active Speaker, 500 Watts


The American DJ CPX 15A 500W, 2-way active speaker is designed for mobile entertainers,  and production companies.
Learn More
Our Price: $299.99
List Price: $339.95
You save 12%!
Write the first review.
American Audio CPX15A
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The American DJ CPX 15A 500W, 2-way active speaker is designed for mobile entertainers,  and production companies. It's also great for installations where affordable sound is required. The CPX 15A is designed to deliver great sound for your band, mobile DJing, or for installation in churches, clubs, lounges, or bars. This speaker makes a great floor monitor or side fill as well.

Features include 15 inch woofer, a 2-way speaker with high efficiency Class D amplifier, 500W built-in bi-amplifier, 5 M10 rigging points, time aligned electronic crossover with low pass: 2nd ordered filter 2.7KHz and Low cut: 2nd ordered filter 30Hz. Speaker is stand mountable with heavy duty steel front grill, ergonomic handles, power and clip LED indicators, XLR and RCA inputs, XLR and TRS throughputs, clipping and thermal protection. The Channel Equalizer provides 100 Hz +/- 12dB Bass and 10KHZ +/- 12dB Treble.

The four models in the CPX series are appropriately nicknamed "Road Warriors" because of their rugged, durable construction. While the competition has opted to exchange hard wearing, long lasting, sturdiness for lighter weight,  this series delivers on both. The CPX 15A weighs in at only 40 pounds and is durable enough for the road.

American Audio CPX 15A Features:

  • 15-Inch Woofer
  • 500W Built-In Bi-Amplifier
  • XLR Mic Input
  • XLR & RCA Line Inputs
  • XLR & TRS Line Outputs
  • Treble & Bass EQ +/-12dB
  • Built-In Pole Mount Socket
  • Built-in Heavy Duty Carrying Handles
  • Attached heavy Duty Rubber Feet

American Audio CPX 15A Specifications:

  • 2-way Speaker with High Efficiency Class D Amplifier
  • 500W Built-in Bi-amplifier
  • Time Aligned Electronic Crossover
  • 5 M10 Rigging points
  • Stand Mountable
  • Heavy Duty steel grill
  • Ergonomic handles
  • Power and Clip LED Indicators
  • XLR and RCA inputs
  • XLR and TRS throughputs
  • Clipping and Thermal Protection
  • S/N Ratio: Line 100dB, Mic 80dB
  • Frequency Response: 30 Hz – 18 kHz
  • Nominal Coverage: 90º x 60º
  • Low Frequency: 15" (390mm), 2.5" (75mm) Voice Coil
  • High Frequency: 44mm Voice Coil, 1" (25mm) Throat
  • Input Sensitivity: 0.5V
  • Output Sensitivity: 97dB (1m/1w)
  • Max. SPL: 118dB
  • Balanced Input Impedance: Line 20K, Mic 3.6K
  • Unbalanced Input Impedance: Line 10K, Mic 1.8KO
  • Multi Voltage Switch: AC 115V/60Hz or 230V/50Hz
  • Dimensions (LxWxH): 18 x 15.5 x 27”/ 456 x 390 x 680 mm
  • Weight: 62 lbs. / 28 kgs.
