Product Overview

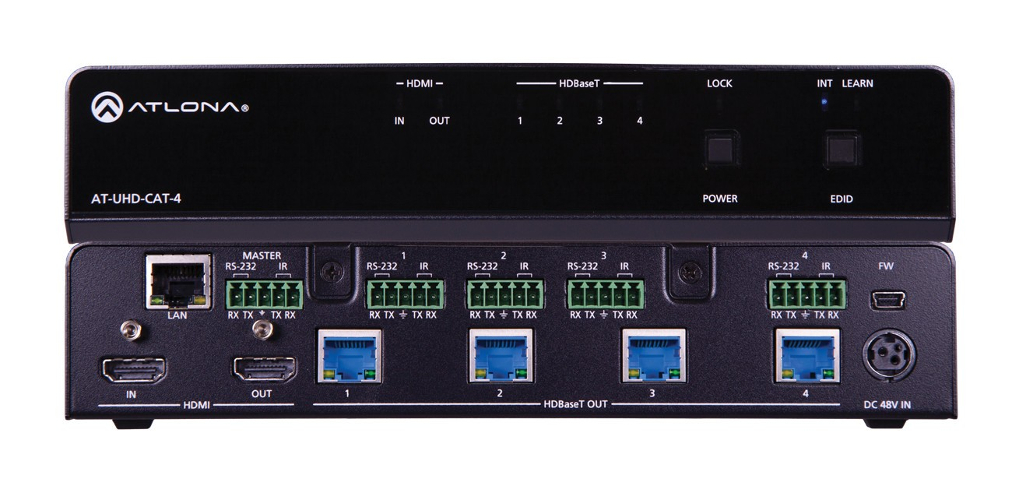

The Atlona AT-UHD-CAT-4 is a 4K/UHD HDMI to HDBaseT™ distribution amplifier featuring pass-through HDMI input connections, four HDBaseT outputs and display control capability. Each output transmits AV and control signals up to 230 ft. (70 m) @ 1080p and 130 ft. (40 m) @ 4K/UHD. Features include 4K/UHD @ 60 Hz with 4:2:0 color subsampling, HDCP 2.2 compliance, EDID management, and PoE for powering remote receivers. A wide variety of consumer displays may be controlled by the AT-UHD-CAT-4 using CEC. Designed for commercial distribution applications, the AT-UHD-CAT-4 is control system-friendly and integrates with any TCP/IP, RS-232, or IR control system and features a 1U, half-rack width enclosure with external, international power supply.
Atlona AT-UHD-CAT-4 Includes:
- User Guide
- External international power supply
- Under table mounting brackets
- Rack mounting kit
Atlona AT-UHD-CAT-4 Features:
- HDMI distribution amplifier with built-in HDBaseT transmission
- Four HDBaseT outputs with transmission of AV and control signals and PoE
- 4K/UHD capability with HDCP 2.2 copy protection
- Automatic display control
- Award-winning 10 year limited product warranty
Atlona AT-UHD-CAT-4 Specifications:
- Resolution:
- Video: 4096×2160 @ 24/25/30/50/60Hz, 3840×2160 @ 24/25/30/50/60Hz, 2048x1080p, 1080p @ 23.98/24/25/29.97/30/50/59.94/60Hz, 1080i @ 50/59.94/60Hz, 720p @ 50/59.94/60Hz, 576p, 576i, 480p, 480i
- VESA: 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
- Color Space: YUV, RGB
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0*
- Color Depth: 8-bit, 10-bit, 12-bit
- Audio:
- HDMI IN & HDBaseT OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Bit Rate: up to 24-bit
- Distance:
- CAT5e/6 @ 4K: up to 115 feet (up to 35 meters)
- CAT6a/7 @ 4K: up to 130 feet (up to 40 meters)
- CAT5e/6 @ 1080p: up to 197 feet (up to 60 meters)
- CAT6a/7 @ 1080p: up to 230 feet (up to 70 meters)
- HDMI IN/OUT @ 4K: up to 15 feet (up to 5 meters)
- HDMI IN/OUT @ 1080p: up to 30 feet (up to 10 meters)
- Signal:
- Bandwidth: 10.2 Gbps
- CEC: Compliant
- HDCP: Compliant 2.2
- Temperature:
- Operating: 32°F to 122°F (0°C to 50°C)
- Storage: -4°F to 140°F (-20°C to 60°C)
- Humidity: 20 to 90% non-condensing
- Power:
- Consumption: 52.8W
- Idle Consumption: 12.6W
- Supply:
- Input: AC100-240V ~ 50/60Hz
- Output: 48V/3.125A
- Dimension (HxWxD): 1.73" x 8.75" x 10.28" (44 x 222.25 x 261 mm)
- Weight: 3.70 lbs (1.66 kg)
- Certification:
- Unit: CE, FCC
- Power Supply: CE, FCC, Level VI, RoHS, cULus, RCM, CCC
