DJI CP.ZM.000078.02

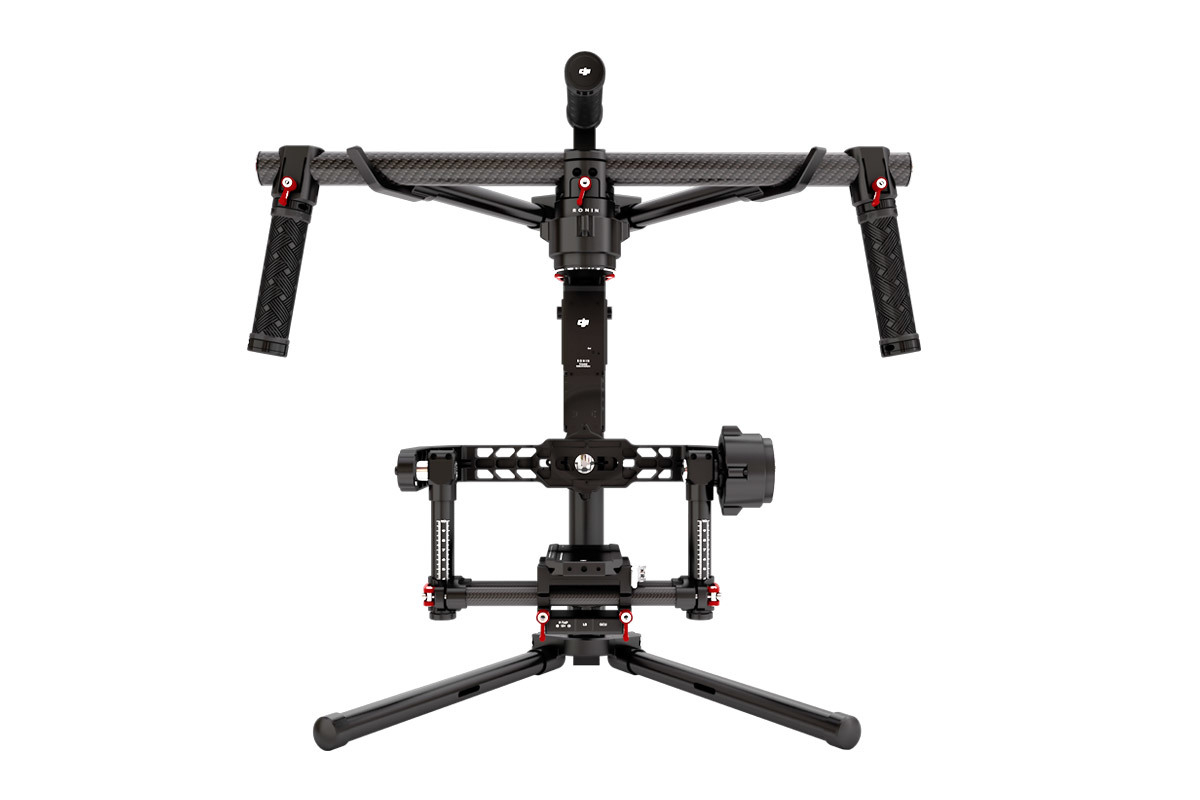

Ronin 3-Axis Gimbal Stabilizer

OUR PART #:  CP.ZM.000078.02

The ADJ CP.ZM.000078.02 Ronin 3-axis gimbal stabalizer supports a camera up to 16 lbs and has precision control of ±0.02°.
Learn More
Our Price: $1,999.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


DJI CP.ZM.000078.02
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ADJ CP.ZM.000078.02 Ronin 3-axis gimbal stabalizer supports a camera up to 16 lbs and has precision control of ±0.02°.

ADJ CP.ZM.000078.02 Includes:

  • Gimbal
  • Handle bar
  • Remote control
  • Tuning stand
  • Charger
  • Intelligent Battery
  • ANSI, JIS, CE cables
  • Micro-USB cable
  • 7-Pin cable
  • Camera mounting plate
  • Extension rod holder
  • Four Adjustable length extension rod
  • Accessory package

ADJ CP.ZM.000078.02 Features:

  • 3-Axis stabalized handheld Gimbal system
  • Save time on set
  • Smoothtrack control
  • Three Operation Modes:
    • Upright mode
    • Underslung mode
    • Briefcase mode
  • Extremely durable, high buld quality
  • Mobile Bluetooth assistant software
  • Supports a multitude of cameras and lenses
  • Based on Zenmuse technology
  • 2nd operator controller
  • High performance processing power
  • High torque, precision controlled motors
  • Built-in receiver & remote control
  • Quick relase top handle bar
  • Quick swap smart battery
  • Power distribution box
  • Dual 15mm rods for folow-focus accessories
  • Protective carrying case
  • Precise focus control

ADJ CP.ZM.000078.02 Specifications:

  • Built-In Functions:
    • Three Operation Modes
      • Underslung Mode
      • Upright Mode
      • Briefcase Mode
    • Built-in independent IMU module
    • DJI Specialized Gimbal Drive Motors with Encoders
    • Bluetooth Module
    • USB Connection
    • 2.4GHz Receiver
    • Temperature Sensor
    • DJI Advanced 32-Bit DSP Processor
    • D-Bus Supported
  • Accessory Power Connections: 12V regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1
  • GCU Input Power: 4S Ronin Battery
  • Connections: 2.4GHz Remote Control, Bluetooth, USB
  • PC Assistant Software Requirements: Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)
  • Mobile Assistant Software Requirements: iOS version 6.1 or above Mobile Device iPhone 4s, iPhone 5, iPhone 5s, iPod touch 5 , iPad 3, iPad 4, iPad mini
  • Mechanical & Electrical Characteristics:
    • Working Current:
      • Static current: 300mA (@16V)
      • Dynamic current: 600mA (@16V)
      • Locked motor current: Max 10A (@16V)
    • Operating Temperature: -15°C ~ 50°C (5°F ~ 120°F)
    • Weight: 4.20kg (9.26lbs) fully loaded with handlebar
    • Gimbal Dimensions (WxDxH): 620 x 280-380 x 500mm
    • Supported Camera Dimensions:
      • Maximum depth at center of mass on camera base plate: 140mm
      • Maximum height measured from top of camera base plate: 225mm
      • Maximum width: 195mm
  • Working Performance:
    • Load Weight (Reference Value): 7.25kg (16lbs)
    • Angular Vibration Range: ± 0.02°
    • Maximum Controlled Rotation Speed:
      • Pan axis: 90°/sec
      • Tilt axis: 100°/sec
      • Roll axis: 30° /sec
    • Controlled Rotation Range:
      • Pan axis control: 360°
      • Tilt axis control: Up 45° to Down 120°
      • Roll axis control: ± 25°
