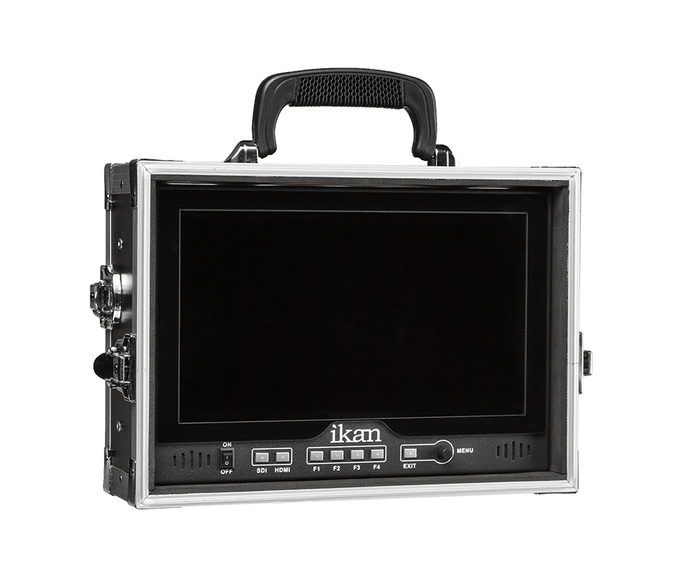

ikan D12-FK D12 Field Monitor Kit for V-Mount with Built-In Hard Case

The Ikan Corporation D12-FK Field Monitor Kit for V-Mount integrates a D12 into a durable hard case with a sunhood, screen protector, V-Mount battery plate, Gold Mount battery plate, and stand adapter. The kit allows for handy transport, and the aluminum stand mount allows for easy placement and viewing in the field.

The D12 is placed directly into the hard case. The hard case features a front door as well as a rear door for quickly accessing all the monitor's functions. The front door also holds the sunhood in place while the rear door holds the AC adapter when not in use.

The adjutable aluminum stand mount is pre-attached to the monitor. Rosettes on the fully aluminum stand mount provide both strong support and adjustability for the monitor. Once the monitor is set at the desired angle, it can be locked into position by tightening the rosettes.

The field kit includes a four-sided sunhood that folds up and stores in the front door of the case. The hood easily attaches to the monitor with magnets. A V-mount battery plate is pre-attached and ready to power your monitor. We also include a Gold Mount battery plate for more portable power options.

The heart of the field kit is the acclaimed D12 monitor. With its super-sharp, full HD panel you always get the best image. The panel also features IPS technology, ensuring the best viewing angles and true-to-life color reproduction.

Ikan Corporation D12-FK Includes:

• AC Power Adapter
• Adjustable Stand Mount (Attached)
• D12 Monitor W/ Built-In Hard Case
• Gold Mount Plate
• Sunhood
• V-Mount Plate (Attached)

Ikan Corporation D12-FK Features:

• Resolution of 1920x1080
• Integrated into Hard Case for Portability
• 3G-SDI & HDMI Inputs and Outputs

Ikan Corporation D12-FK Specifications:

• Model No.: D12-FK
• Supported Video Signals:
  • 3G-SDI: 1920x1080p @ 50, 59.94, 60 Hz
  • HD-SDI:
    • 1280x720p @ 50, 59.94, 60 Hz
    • 1920x1080i @ 50, 59.94, 60 Hz
    • 1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz
    • 1920x1080p @ 23.97, 24, 25, 29.97, 30 Hz
  • SD-SDI:
    • 720x480i @ 60Hz
    • 720x576i @ 50Hz
  • HDMI:
  • 720x480i & 720x480p @ 59.94, 60 Hz
  • 720x576i & 720x576p @ 50 Hz
  • 1280x720p @ 50, 59.94, 60 Hz
  • 1920x1080i @ 50, 59.94, 60 Hz
  • 1920x1080psf @ 24, 25, 29.97, 30 Hz
  • 1920x1080p @ 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
• Aspect Ratio: 16:9
• Brightness: 350 cd/m2
• Build Material: Steel
• Built In Speaker: 2Wx2
• Color System: PAL/NTSC/SECAM (Auto-Detected)
• Contrast Ratio: 700:1
• Dimensions: 10" x 13" x 7" (25.4 x 33 x 17.7 cm)
• Display Technology: IPS
• Input Voltage: DC 7V - 24V
• Inputs: 3G-SDI, HDMI
• Operating Temperature: 32°F ~122°F (0°C ~ 50°C)
• Outputs: 3G-SDI, HDMI
• Pixel Pitch: 0.1335×0.1335 (mm)
• Power Consumption: 16W
• Resolution: 1920 x 1080
• Response Time: 25ms
• Screen Size: 11.6"
• Shipping Dimensions: 14" x 10" x 8" (35.5 x 25.4 x 20.3 cm)
• Shipping Weight: 13 lbs (5.8 kg)
• UPC Code: 847983019236
• Viewing angle (HxV): 178°
• Weight: 12.5 lbs (5.6 kg)
