Radio Design Labs D-CVMB2
Composite Video and Video Monitor Connection Plate


Our Price: $64.07
List Price: $85.72
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

RDL's D-CVMB2 is well-suited for installations requiring a wall mounted video input or output plate with standard HD15 monitor and composite RCA jack connections. The panel is typically installed as an input plate, but may equally be used as an output jack panel.

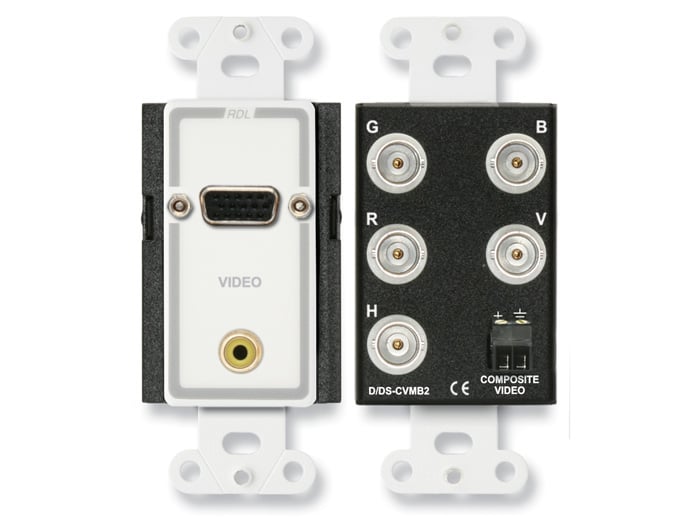

The front panel features a standard video monitor connector. Video components, video sync and their respective ground returns are separated to feed five BNC jacks on the rear panel. The BNC jacks are isolated from the module chassis ground so the appropriate signal grounds pass through without adding a video ground loop at the panel.

The front panel features an RCA jack, intended for a composite video source. The video signal is fed to a rear panel detachable terminal block.

The D-CVMB2 is well-suited for connecting computer or composite video sources to a video monitor or projector in meeting rooms or classrooms.

RDL D-CVMB2 Features:

  • Composite video and video monitor input panel
  • Composite video input on RCA jack
  • Composite video output on detachable terminal block
  • Video monitor input on standard video 15 HD female connector
  • Rear panel video Outputs (R,G,B,H,V) on BNC jacks
  • BNC jacks are isolated from chassis ground

RDL D-CVMB2 Specifications:

  • Composite video input connector: RCA jack
  • Video monitor input connector: Female HD15
  • Composite video output connector: Detachable terminal block
  • Video monitor output connectors (5): BNC (R: Red; G: Green; B: Blue; H: Horizontal Sync; V: Vertical Sync)
  • Dimensions: 4.13" H x 1.7" W x 1.4" D (10.49 x 4.32 x 3.56 cm)
  • Mounting Box Minimum Dimensions:
    • Width: 1.8" (4.57 cm)
    • Depth: 0.15" (0.38 cm) plus the depth of the installer provided BNC connectors
