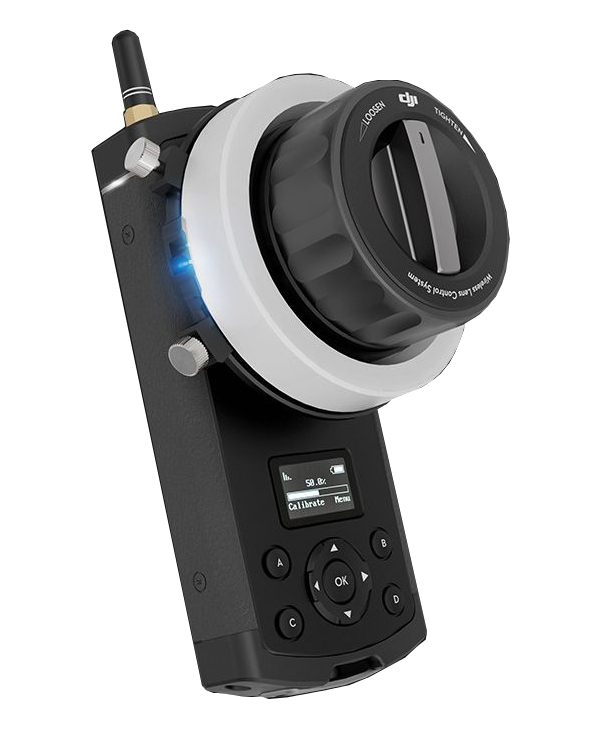

DJI CP.ZM.000234 DJI Focus Follow Focus System

The DJI CP.ZM.000234 DJI Focus uses DJI’s expertise in brushless motors for previously unheard of levels of precision and accuracy. The brushless motor puts just ±0.02° of accuracy in your hands so that turning the remote is just like turning the lens itself. It also features high torque and a fast reaction speed so you can keep your subject in focus no matter how it moves.

Includes

• Padded, waterproof case
• Handheld remote follow focus remote controller
• Focus motor
• Neck strap
• Additional focus marking rings
• 60 mm lens gear ring
• 70 mm lens gear ring
• 80 mm lens gear ring
• 90 mm lens gear ring
• Accompanying cables

Features

• Fast wireless transmission
• Adjustable endpoints
• Customizable focus wheel
• Removable marking ring
• Programmable and customizable
• X5 Series compatible
• Ronin and Ronin-M support
• Dual communication ports
• Rosette mount
• Rechargeable battery

Specifications

• General:
  • Operating Frequency: 2.415-2.473 GHz
  • Max. Transmission Distance: 100 m (out and unobstructed)
  • Transmitter Power: 14 dBm
  • Operating Temperature Range: -20° to 55?
• Remote Controller:
  • Weight: 745 g
  • Dimensions: 153x86x90 mm
  • Battery:
  • Model: FB01-554461
  • Type: LiPo
  • Capacity: 1700 mAh,6.29 Wh
  • Voltage: 3.7 V
• Motor:
  • Weight: 170 g
  • Dimensions: 90x50x26 mm
  • Max. Torque: 0.35 Nm
  • Max. Speed: 192 rpm
  • Working Current:
    • Static current: 80 mA (@12 V)
    • Stall current: 2 A (@12 V)
  • Working Voltage: 9-16 V
  • Noise: < 25 dB (@96 rpm)
  • Rob Clamp Inner Diameter: 19 mm or 15 mm
  • Gear: Teeth: 40, Module: 0.8
• Lens Gear Ring:
  • Teeth: 105
  • Module: 0.8
  • Diameter: 60 mm, 70 mm, 80 mm, 90 mm
