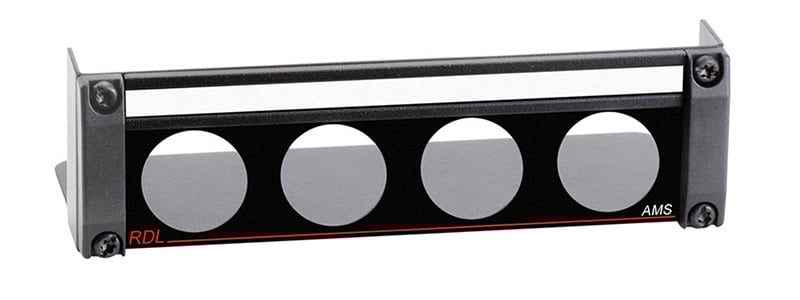

Radio Design Labs AMS-RU4
Mounting Panel for (4) AMS Accessories

OUR PART #  AMS-RU4

Our Price: $35.58
List Price: $47.59
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

RDL's AMS-RU4 permits the mounting of up to four RDL AMS series accessories which include switches, controls, indicators and jacks. The use of AMS accessories allows for easy customization of rack mounted user interfaces. The design of the AMS-RU4 complements the appearance of adjacent RACK-UP products.

RDL AMS-RU4 Mounting Panel Features:

  • Mounts up to four AMS accessories in one RACK-UP mounting bay
  • Mounts industry connectors compatible with D-style cutouts
  • Connectors and accessories mount from the rear
  • Provides label track to identify connectors and accessories
  • Provides flexibility for connections and controls

RDL AMS-RU4 Mounting Panel Specifications:

  • Dimensions: 5.8" W x 1.675" H x 2.250" D (14.73 x 4.25 x 5.72 cm)
  • Mounting Depth: 0.75" (1.91 cm)
