Product Overview
Chief's LVS1U ConnexSys™ Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.

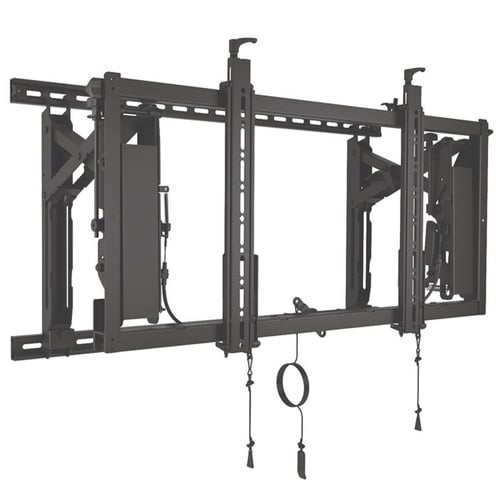

The LVS1U ConnexSys landscape mount ships with rails for each mount.
Chief Manufacturing LVS1U Features:
- Speed:
- Hang units on a single strut channel for quick row leveling
- No need for horizontal spacers
- Vertical measurement is simply the height of the display to the next rail
- Compatible with most 1-5/8" sizes of channel strut
- Reduces installation time - especially for XL and recessed configurations
- Tool-free ClickConnect™ latching secures displays
- PowerZone™ provides 6 points of adjustment in one easy-to-access location at the top of the mount
- Alignment:
- PowerZone™ Adjustments:
- Height adjustment ±1" on each interface
- Tilt adjustment at single pivot point, protects displays from twisting
- Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations
- Both sides adjust independently, compensating for imperfections in the wall
- Walls can be out of alignment by up to 2" (horizontally)
- 3 levels of lateral adjustment
- Mount left/right along rail
- Interface left/right along mount
- Lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisions
- Serviceability:
- RapidDraw™ Display Release
- Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service
- Protects displays by not requiring an aggressive push to release/pop-out
- Releases only on demand, preventing accidental pop-outs
- 10 ft cord can be set up to pull for release from any 90º angle
- Kickstand provides 20º of bottom tilt access
- Rigidity:
- Rigid frame keeps displays where you set them, even after extending for service
- Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes
- Miscellaneous:
- Security - pad lock ¼" shank diameter
- Safety tested
- Universal interface
- Each mount comes out of the box with adjustments set in the exact same position
Chief Manufacturing LVS1U Specifications:
- Certifications: UL Listed
- Color: Black
- Manual Height Adjustment: ± 1"
- Maximum Extension: 13.4" (34 cm)
- Minimum Depth: 4"
- Mounting Pattern Compatibility (Universal Versions): 200 x 100 - 700 x 400 mm
- Orientation: Landscape
- Overall Dimensions: 21.8" H x 35.5" W x 4" D (554 x 902 x 102 mm)
- Shipping Weight: 44 lbs
- Solution Type: Universal
- Tilt: + 4.0°, -2.5°
- Typical Screen Sizes: 42" - 80"
- Weight Capacity: 150 lbs (68 kg)
Note:
To ensure this mount works with your equipment check with your sales representative or consult the Chief website.
