Gefen Inc GEF-DVI-16416-PB

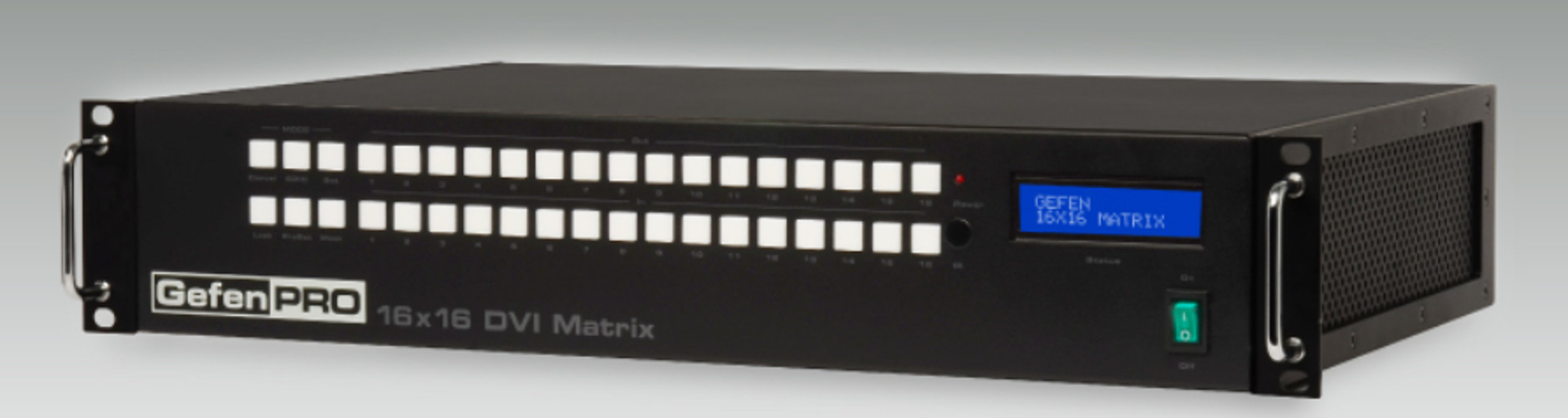

16x16 DVI Matrix with Front Panel Push Button Control

OUR PART #:  GEF-DVI-16416-PB

The Gefen Inc. GEF-DVI-16416-PB DVI Matrix has 16 DVI inputs and 16 DVI outputs.
Learn More

Call for price! Not available online.
List Price: $7,724.00

Similar Products

The Gefen Inc. GEF-DVI-16416-PB DVI Matrix has 16 DVI inputs and 16 DVI outputs. Using the supplied DVI cables, connect 16 sources to the DVI input ports on the GefenPRO 16x16 DVI Matrix. Connect the GefenPRO 16x16 DVI Matrix's 16 DVI outputs to the monitors. Plug in the power cord and power on the GefenPRO 16x16 DVI Matrix. The connected monitors will show video according to the routing selection.

Gefen Inc. GEF-DVI-16416-PB Includes:

  • GefenPRO 16x16 DVI Matrix with Front Panel Push Button Control (GEF-DVI-16416-PB)
  • 16 6 ft. dual link DVI cables (M-M) (CAB-DVIC-DLN-06MM)
  • IR Remote Control unit (RMT-16416R)
  • AC Power Cord (CAB-POWERCORD-XX)
  • Quick-Start Guide (QSG-GEF-DVI-16416-PB)

Gefen Inc. GEF-DVI-16416-PB Features:

  • Supports resolutions up to 1920 x 1200
  • Front-panel push buttons for local switching
  • Front-panel LCD Display
  • Switching is controlled via front panel buttons, IR remote, IP, or RS-232 commands
  • Compatible with the Gefen Keyboard Controller software
  • Advanced EDID management
  • Programmable routing presets
  • Standby mode
  • Output masking control
  • IP control and configuration with built-in Web server
  • Easy firmware upgrades using Gefen Syner-G software, downloadable from Gefen website
  • Internal power supply
  • Rack-mountable

Gefen Inc. GEF-DVI-16416-PB Specifications:

  • Maximum Pixel Clock: 165MHz
  • Input Video Signal: 1.2V p-p
  • Input DDC Signal: 5V p-p (TTL)
  • Video Input Connectors: (16) DVI-I 29-pin, female (digital only)
  • Video Output Connectors: (16) DVI-I 29-pin, female (digital only)
  • RS-232 Port: DB-9, female
  • IR Extender Input: 3.5 mm mini-stereo jack
  • IP Control Port: RJ-45, Shielded
  • Power Supply: 100 - 240V AC (Internal)
  • Power Consumption: 90W (max.)
  • Dimensions (WxDxH): 17.2" x 12" x 3.5"
  • Shipping Weight: 30 lbs.
