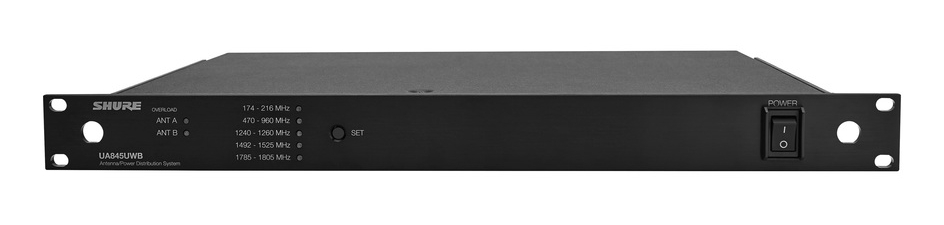

Shure UA845-UWB
Ultra Wide Band Antenna


Our Price: $809.95
List Price: $974.00
You save 17%! (Low Price Guarantee)
In Stock

The Shure UA845UWB is a five-way active antenna splitter and power distribution system for QLX-D™, ULX-D™, SLX and BLX (BLX4R only) receivers.

The Shure Model UA845UWB Antenna Distribution System allows four receivers to use the same set of antennas. The cascade connectors allow connections to a fifth receiver or a second UA845UWB. There are also power connectors for distributing power to each receiver. RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs. A button on the front panel switches between one of five frequency bands from 174 to 1805MHz.

Shure UA845UWB Band Selection on the Front Panel:

  • 174 – 216 MHz
  • 470 – 960 MHz
  • 1240 – 1260 MHz
  • 1492 – 1525 MHz
  • 1785 – 1805 MHz

Shure UA845UWB Includes:

  • 1 UA845UWB Antenna/Power Distribution System
  • 4 Locking DC power cables (for UR4, ULXD4, ULXP4)
  • 4 Non-locking DC power cables (QLXD4, SLX4, BLX4R)
  • Ten 22 in. BNC cables
  • Two 6 ft. BNC cables
  • 2 Bulkhead adaptors
  • 1 AC Power Cable (IEC power)
  • 1 Pig-tail AC Cable (for the second UA845UWB or UR4,ULXD4D, ULXD4Q receiver)
  • 1 Rack mount Hardware kit
  • 1 Literature Package

Shure UA845UWB Features:

  • 5 selectable frequency ranges
  • Antenna A and B input overload LED indicators
  • Five-way RF signal output
  • Support QLX-D®, ULX®, ULX-D®, SLX®, and BLX® (BLX4Ronly) receivers
  • Front-mounting antenna hardware
  • Rack-mounting hardware
  • Internal power supply
  • 4 DC power feeds for receivers (15V, 2.5A max)
  • DC outputs for antenna bias (12V, 300mA max)
