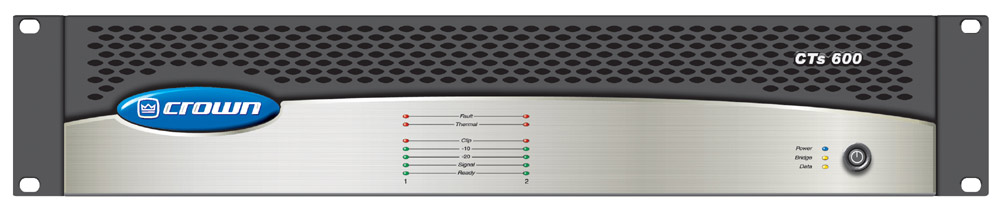

Crown CTS600-230 [RESTOCK ITEM]
Amplifier 2Ch 230V

OUR PART #:  CTS600-230-RST-02

Building on the foundation of the Com-Tech Series, Crown's CTs Series offers new flexibility and value for installed sound applications.
Learn More
Sale Price: $449.99
List Price: $1,363.07
You save 67%!
Write the first review.
Crown CTS600-230 [RESTOCK ITEM]
Qty:
In Stock

Related Products

Building on the foundation of the Com-Tech Series, Crown's CTs Series offers new flexibility and value for installed sound applications. The Com-Tech Series were the first to offer independent selection of high- and low-impedance operation for a specific channel, and CTs Series amplifiers continue that tradition, with power levels and features carefully chosen to perfectly integrate into fixed install design requirements.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Crown CTS600-230 Features:

  • High power density in a 2RU chassis
  • Crown Switching Power Supply for lighter weight
  • Selectable "Constant-Voltage" or low-impedance (4/8 ohm) operation per channel
  • 100V direct outputs
  • Legendary Crown class-I (BCA) and AB+B output topologies offer the best in amplifier reliability
  • Comprehensive array of indicators provide accurate diagnostics
  • Fully PIP2-compatible
  • HiQnet compatible

Power Output

  • Dual mode, 2 ohms: 150W
  • Dual mode, 4, 8 or 16 ohms or 70V: 300W
  • Bridge mode, 4 ohms: 300W
  • Bridge mode, 8 or 16 ohms or 140V: 600W

Crown CTS600-230 Specifications:

  • Frequency Response (at 1 watt, 20Hz-20kHz): +/- 0.25dB
  • Signal to Noise Ratio below rated power (20Hz to 20kHz): 105dB A-weighted
  • Total Harmonic Distortion (THD) at full rated power, from 20Hz to20kHz:<0.35%
  • Damping Factor: 10Hz to 100Hz: >3000
  • Crosstalk (below rated power, 20Hz to 1kHz): >80 dB
  • Common Mode Rejection (CMR, 20Hz to 1kHz): 50 dB
  • DC Output Offset: <2mV
  • Input Impedance (nominal): 10 kilohms balanced, 5 kilohms unbalanced
  • Maximum Input Level: +20dBu before input compression, +32dBu absolute maximum
  • Load Impedance (safe with all types of loads): Stereo: 2/4/8/16 ohms,70V,100V. Bridge Mono: 4/8/16 ohms, 140V, 200V
  • Voltage Gain (at maximum level setting): 8/4 ohm operation,1.4Vsensitivity: 63.9:1 (36dB)
  • Cooling: Continuously variable speed forced air, front-to-back airflow
  • Dimensions (W x H x D): 19" x 3.5" x 14.25"
  • Weight: 22.8 lbs (net); 27.7 lbs (shipping)
