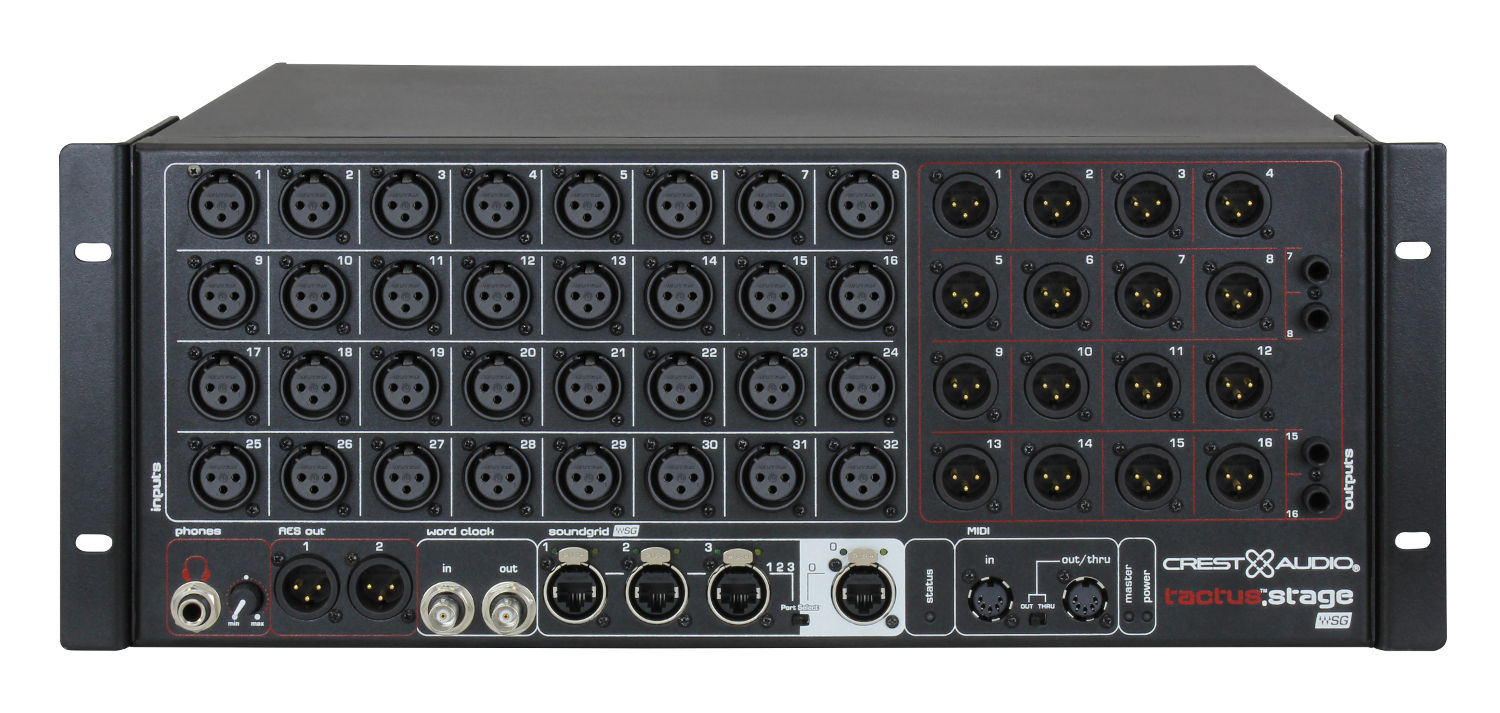

Crest Tactus Stage
Stagebox, For Use With Waves SoundGrid


Built in partnership with Waves®, the Crest Audio Tactus Digital Mixing System puts high quality audio...
Learn More

Call for price! Not available online.

Related Products

Built in partnership with Waves®, the Crest Audio Tactus Digital Mixing System puts high quality audio, custom configuration and class leading features at the operator's fingertips. Built on the combination of the Waves eMotion™ LV1 mixer, SoundGrid® server technology and Crest Audio Tactus IO interfaces, the Tactus Digital Mixing System represents the next evolution in digital consoles- without the physical limitations of a console.

Crest Audio Tactus Stage Features:

  • 32 microphone/line inputs
  • XLR mic and TRS 1/4” line inputs
  • 16 line inputs
  • Mic input accepts a +27 dBu input signal without a pad
  • 66 dB adjustment range in 1 dB steps to maximizedynamic range
  • Gain changes on zero crossing to minimize adjustmentnoise
  • High performance digitally controlled microphonepreamps feature: Low input noise at both high and low gain settings, highslew-rate and very low THD
  • 48 Volt phantom power switchable on every mic input
  • Intergral gigabit Ethernet switch for easy networking
  • Waves® SoundGrid™ Digital audio network protocol
  • Balanced output maximum level switchable between +24dBu and 1 dBU
  • Parallel/Bridge/Stereo mode switch
  • Headphone output with level control
  • MIDI in and switchable out or thru
  • 3U rack mount package
  • Universal input power supply
