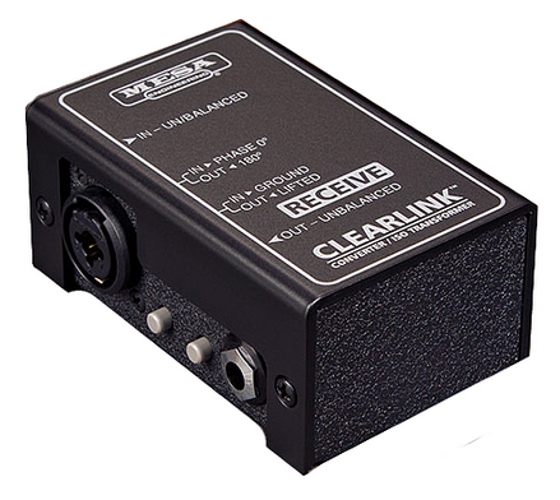

Mesa Boogie Ltd CLEARLINK RECEIVE
Converter

OUR PART #:  CLEARLINK-RECEIVE

Meas Boogie's CLEARLINK RECEIVE ISO/CONVERTER is ideal for stages where instrument signals must travel longer than 15 to 20 feet.
Learn More
Our Price: $279.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Mesa Boogie Ltd CLEARLINK RECEIVE
Qty:
In Stock

Similar Products

Meas Boogie's CLEARLINK RECEIVE ISO/CONVERTER is ideal for stages where instrument signals must travel longer than 15 to 20 feet. It's most common application is receiving a buffered signal through long cabling from its companion product - the CLEARLINK SEND - at the tail end of a Pedal Board and converting the XLR balanced signal that transmits back to a 1/4" unbalanced signal appropriately mached for feeding an instrument amplifier.

The CLEARLINK RECEIVE is also well suited for the studio by enabling a very long cable run from the Control Room to the Cutting Room where an amplifier may be mic'd.

Mesa Boogie CLEARLINK RECEIVE Features:

  • Made in Petaluma, California with the World’s Finest Materials
  • Passive Design
  • High Quality Jensen Audio Isolation Transformer
  • Combination XLR/¼” Input accepts Balanced (XLR &TRS ¼”) or Unbalanced (TS ¼”) Inputs
  • High-Performance Balanced to Unbalanced Signal Converterfrom drive-lines up to 330 ft away
  • ¼” Unbalanced Output is electrically isolated from the input, via the specially designed and shielded isolation transformer.
  • Phase Switch - Inverts (reverses) the phase of the output signal in relation to the input signal.
  • Ground Switch - Safely lifts (isolates) the ground connection between the IN and OUT jacks, eliminating ground loop hum and noise.

Mesa Boogie CLEARLINK RECEIVE Specifications:

  • Maximum Input Level: +16dBu
  • Frequency Response: 20Hz - 20kHz (-1dB)
  • Total Harmonic Distortion: 0.002% (1kHz, +4dBu)
  • CMRR (Common-Mode Rejection Ratio): 120dB (Bal. 60Hz,+4dBu)
  • Weight: 0.512 lbs (232 g)
  • Dimensions (WxDxH): 3.86" x 2.48" x 1.71" (98 x 63 x 44 mm)
