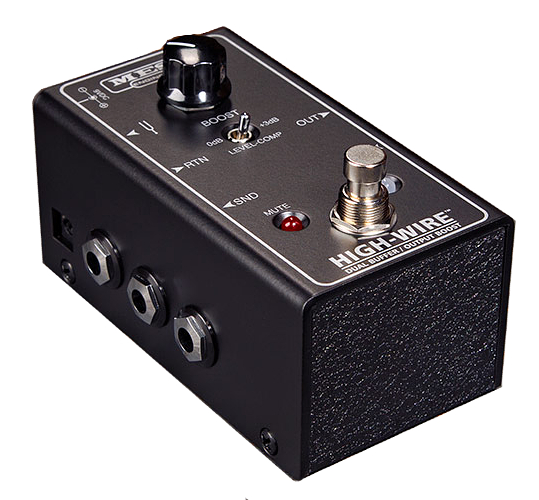

Mesa Boogie Ltd HIGH-WIRE
Dual Buffer Pedal

Mesa Boogie's HIGH-WIRE™ is a Dual Buffer and Line Driver all in one that provides a stable, consistent load for your guitar's pickups to ensure your signal arrives at the first pedal intact and full of tone. As with the Stowaway, all buffer circuitry is 100% discrete Class-A. The HIGH-WIRE also incorporates a fixed +3dB BOOST on a top mounted mini-toggle. The Footswitch is Dual Function and allows both the variable BOOST when hit once and a MUTE when held for a second. The HIGH-WIRE is the ultimate all-in-one Pedal Board signal loss remedy.

Mesa Boogie HIGH-WIRE Features:

• Made in Petaluma, California with the World’s Finest Materials
• 100% Discrete Class-A STOWAWAY™ Input Buffer Circuit
• Provides the tone & feel of plugging directly into a high-quality tube amp
• RFI Filtering minimizes radio-frequency interference and noise
• Segregated Send & Return Effects Loop provides guitar AND amp with a resolute load and source for the most consistent tone and feel possible
• Integrated CLEARLINK™ Output Line Driver with +3db Level Comp Switch – Capable of driving long ¼” cable runs directly to your amp’s input
• Tuner Output – Provides an “always on” buffered output separate from the main signal chain to feed tuner
• Dual Function Boost/Mute (Tune) Footswitch – Press on/off to activate Boost – Press and hold to activate Mute/Tune
• Variable, Footswitchable Boost Control from Unity up to +22db of Output Boost
• Boost On/Off Status LED
• Mute (Tune) On/Off Status LED
• 9VDC External Power Jack Input (power supply not included)

Mesa Boogie HIGH-WIRE Specifications:

• Input Impedance: 1M Ohm
• Output Impedance: 150 Ohm
• Input Buffer Design: Discrete Class-A (MESA Stowaway™)
• Output Buffer Design: High-Speed, Low Noise Op-Amp (MESA Clearlink™)
• Nominal Operating Voltage: 9VDC
• Maximum Operating Voltage: 12VDC
• Typical Current Draw: 55mA @ 9VDC
• DC Adapter (sold separately): WARNING!!!To avoid immediate damage and voiding the warranty, the External Power SupplyMUST be 9VDC with a NEGATIVE CENTER and a 2.1mm x 5.5mm Barrel Plug
• Weight: 0.743 lbs (337g)
• Dimensions (WxDxH): 2.48" x 4.48" x 2.06" (63 x 114 x 52 mm)
• NOTE: Due to efforts for continual improvement, allspecifications are subject to change without notice.
