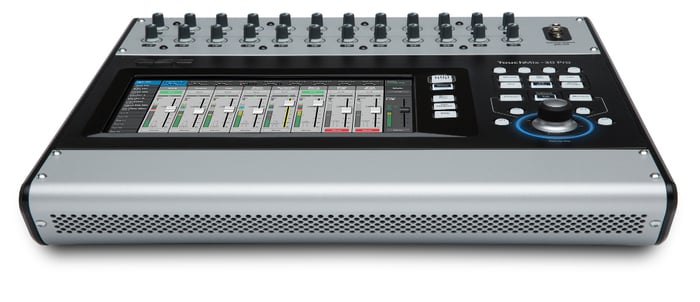

QSC TouchMix-30 Pro 32-Channel Compact Digital Mixer Image 1
QSC TouchMix-30 Pro 32-Channel Compact Digital Mixer Image 2
QSC TouchMix-30 Pro 32-Channel Compact Digital Mixer Image 3
Q79cdRV_WJw
1 Video
QSC TouchMix-30 Pro 32-Channel Compact Digital Mixer
Our Price: $2,399.99
List Price: $2,999.99
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$67/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The TouchMix-30 Pro offers the features, capabilities and sound quality of the world's most esteemed large-format consoles in a highly compact and portable package that’s small enough to be carry-on luggage. Perfect for musicians, larger bands, AV production professionals and performance venues, the TouchMix-30 goes "Beyond Mixing" by offering Wizards, Presets and other beneficial tools that help both seasoned audio professionals and novices alike get great results quickly and easily. Its 32 mixing channels (24 Mic/Line, 6 Line, Stereo USB) and 16 outputs offer tremendous signal management flexibility for a wide range of applications while advanced features such as class-A microphone preamps, Anti-Feedback and Room Tuning Wizards, two real-time analyzers (RTA), patch matrix, 32-channel direct-to-external-drive recording and DAW interface with macOS® and Windows® computers make it equally competent as both a professional live sound or recording tool. The touch-and-turn interface of TouchMix allows for tactile control over fader and mixer parameters while also providing a hardware connection to mixer functions. Mixer functions and displays are duplicated via iOS or Android devices over Wi-Fi, providing both portable, wireless connectivity as well as additional control surfaces of mixer functionality. With firmware version 1.3, TouchMix-30 adds an Automatic Microphone Mixer. Auto Mixers are most commonly used for speech applications such as conferences, presentations or panel discussions in which there are multiple talkers and multiple microphones. An Auto Mixer will reduce feedback and minimize extraneous noise (such as paper rustling from panelists or HVAC) by allocating gain to microphone channels with active talkers while reducing the gain of unused channels. The TouchMix-30 Automatic Microphone Mixer (Auto Mixer) is a gain sharing design that is available for all 24 mic/line input channels.

Features

  • Anti-Feedback and Room Tuning Wizards simplify complex equalization tasks
  • Two real-time analyzers (RTA) provide instantaneous display of channel tonal balance and room response
  • 14 Aux mixes provide ample monitor configuration options
  • A gain sharing Automatic Microphone Mixer is available for all 24 mic/line input channels
  • 32-channel direct-to-hard drive record/playback
  • Firmware V2.0 with 28 more instruments, CP Series Presets, and Custom Fader Banks

Specifications

  • Display: 10" (254mm) diagonal, 1024 x 600 pixel, color TFT, capacitive multi-touch sensing
  • Inputs: 32 Total
    • 24 Mic/Line, 20 XLR, 4 XLR combo
    • 6 Line, balanced, 1/4" TRS + top panel 1/8" (3.5 mm) stereo
    • 2 Stereo USB / MP3 playback
  • Input (Talkback): 1 XLR (48 v available)
  • Outputs:
    • Main L/R: XLR line-level
    • 14 Aux: XLR, line-level; May be paired for stereo
    • Stereo In-Ear Monitor (2): TRS, (16 ohm min. impedance) from Auxes 11/12 and 13/14
    • Stereo Cue: TRS, (line or headphone, 16 ohm min. impedance)
    • Monitor L/R: XLR, line-level
  • Digital Connections: 2 USB A connector, 1 USB B connector, 1 RJ-45 (connection for Wi-Fi router)
  • Mic and Line Input Channel Processing: 4-band Parametric EQ with Hi/Low Shelving Option, Variable 24 db/octave HPF and LPF, Gate, Compressor, Delay (100 msec max)
  • Output Channel Processing: 1/3 octave G EQ, 6-band Parametric EQ, Variable High- and Low-Pass Filters, 12-band Variable Notch Filters; Limiter; Delay
  • Sub Group Processing: 6-band Parametric EQ with High-and Low-Pass Filters, Limiter
  • Recording / Playback: 32 x 32 tracks direct to harddrive or DAW (Core Audio interface to Mac OS); Stereo MP3 playback
  • Groups: Eight DCA Groups (with mutes), Eight Mute Groups, Eight Sub Groups (may be linked in stereo pairs)
  • Cue: Selectable. AFL, PFL, Solo in Place
  • Effects:
    • 6 Simultaneous, Professional Effects Engines including Reverb, Echo, Delay, Chorus, Pitch Shift
    • 1 Pitch Correct (assignable to any mono input channel)
  • Real Time Analyzer: 2 x 1/3 octave. 1 assigned to the selected channel, 1 with user selectable source
  • Preset Memory: 99 User Scenes, 120 Factory Presets, 99 User Presets
  • External Control: TouchMix Control App for iPad® and Android tablets controls all mixer functions via Wi-Fi. App runs on iOS® and Android smartphones.
  • Wi-Fi: Requires user supplied USB Wi-Fi dongle or external ethernet Wi-Fi router (recommended)
  • Dimensions (H x W x D):
    • Shipping: 12" x 23.7" x 19.5" (30.5 x 60.3 x 49.5 cm)
    • Mixer only: 7.5" x 16.9" x 18.1" (19 x 42.9 x 46 cm) rack mountable with optional accessory
  • Weight
    • Shipping: 25.2 lbs. (11.4 kg)
    • Mixer Only: 17.5 lbs. (7.9 kg)
  • Line Voltage / Input Power Requirements: 85W, 100-240VAC, 50-60 Hz
  • Sampling Frequency: Selectable 44.1 kHz or 48 kHz
  • THD: < 0.005%, +4 dBu; 20 Hz-20 kHz, unity gain, any input to any output
  • Frequency Response: 20 Hz-20 kHz +/-0.5 dB, any input to any output
  • Dynamic Range: 105 dB
  • Equivalent Input Noise: -126 dBu
  • Residual Output Noise: -86 dBu
  • Crosstalk: -80 dB
  • S/N Ratio: -94 dB
  • Gain: Microphone inputs: 75 dB (60 dB analog, 15 dB digital)
  • Maximum Input Level: +16 dB (XKR mic/line inputs), +26 dB ( TRS mic/line inputs), +24 dBu (TRS line inputs), 0 dBv (top panel 1/8" stereo input)
  • Maximum Output Level: +22 dBu (all line-level outputs)
  • Phantom Power: 48 V, all mic and talkback inputs, individually switchable per input
