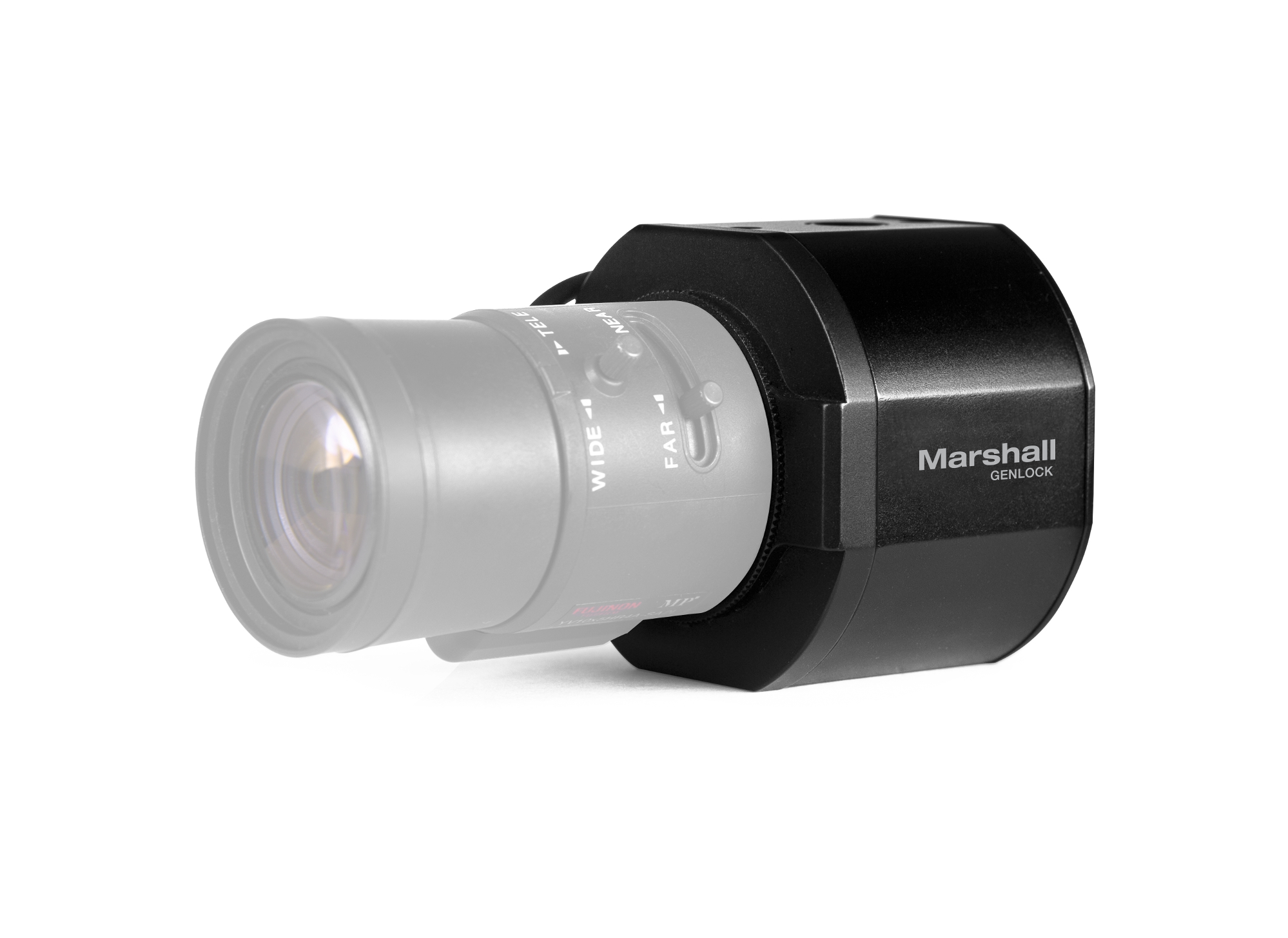

Marshall Electronics CV365-CGB
Compact 2.5MP Genlock Broadcast Video Camera Body Only

OUR PART #:  CV365-CGB

The Marshall Electronics CV365-CGB is a compact, full-HD (3G/HD-SDI & HDMI) 2.5MP GENLOCK camera that includes audio and HDMI.
Learn More
Our Price: $899.99
List Price: $999.00
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics CV365-CGB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Marshall Electronics CV365-CGB is a compact, full-HD (3G/HD-SDI & HDMI) 2.5MP GENLOCK camera that includes audio and HDMI. It features a CS/C lens mount for lens interchangeability (len(es) sold separately), as well as Hirose I/O/genlock cable and included power supply.

Making use of Tri-Level Sync, the CV365-CGB locks 3G/HD video signals (genlock) up to 1920x1080p @ 59.94/50/60 frames per second, along with 1920x1080i @ 59.94/50/60fps and 1280x720p @ 59.94/50/60fps. It also comes includes a 3.5mm TRS Mic-Level or Line-Level Input with 2.5V and broadcast convenient HDSDI/3GSDI (BNC) as well as with additional HDMI (v.1.3) output. This Compact GENLOCK Camera's Sync adds the convenience of Tri-Level Sync up to 1080p59.94/50fps at camera level to ensure smooth and seemless switch transitions. It's built around next generation chipsets and higher performing sensors, thus improving upon every performance aspect over previous models. Capturing Broadcast-quality HD video from 2,476,296 pixels (2.5MP) of clear, crisp video at full-HD resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25fps.

Applications:

  • Broadcast Television
  • Professional Sports
  • College Sports
  • OB Vans/Trucks
  • Concert & Studio Music Video
  • Reality TV
  • Performing Arts
  • Culinary Shows
  • Car TV Shows
  • Hidden Camera Shows
  • International Racing Circuits
  • Off-road Racing
  • Horse Racing
  • House of Worship
  • POV Video Shots

Marshall Electronics CV365-CGB Features:

  • 2.5 Megapixel 1/3" CMOS Sensor
  • CS/C Lens Mount with DC-Auto Iris (lens(es) sold separately)
  • GENLOCK Tri-Level Sync at camera level to ensure clean switching between cameras
  • Sync in 3GSDI (1080p59.94/50/60fps) as well as HDSDI (1080i59.94/50/60fps and 1280x720p59.94/50/60fps)
  • Supports resolutions of 1920x1080p, 1920x1080i, and 1280x720p
  • Supports frame rates of 59.94, 50, 60, 29.97, 25, 30fps
  • Camera will adjust to Resolution & Frame rate of Sync source
  • 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel
  • Hirose-style (I/O) connector contains: Sync-IN, Sync-OUT, RS-485 connect, 12V power connector & audio TS line-level input with 2.5V power
  • Captures sharp & vivid color images at 0.2 lux (low light sensitive)
  • WDR function adjusts automatically to bright and dark areas in FOV
  • Audio line-level (TS) embedding w/ 2.5V power supplied
  • OSD Menu Joystick on cable and RS-485 connectable (Visca/Pelco)
  • Stepped (Red/Blue) Gain Control, Gamma, Shutter, Brightness
  • Free downloadable software to control camera settings via RS485 (requires USB to RS485 converter)
  • Camera Control Software Interface Screen Capture:
  • Free POV Camera Control Application
