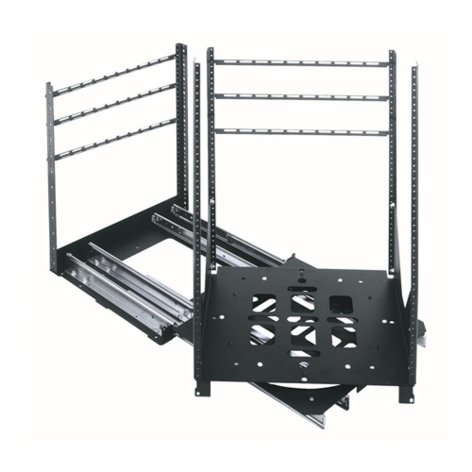

Middle Atlantic SRSR-4-25 25SP Rotating Sliding Rail System with 19" Depth and 4 Slides

Middle Atlantic's SRSR series racks offer easy rear access to equipment connections in millwork, cabinets and flush in-wall installations. Featuring a 19" useable depth, the SRSR system extends and rotates 90º in either direction, making it ideal for smaller systems.

Middle Atlantic SRSR-4-25 Features:

• Removable rack frame allows in-shop integration and on-site installation of equipment
• Locks in the extended position for simplified equipment integration
• Rotating equipment bay locks in place at 0º, 60º and 90º for easy installation and servicing
• Self-centering mounting base makes it simple to align system within cabinet opening
• Rear cable support works in conjunction with rear rackrail for effective cable management
• Standard front and rear 10-32 threaded rackrail with marked spaces

Middle Atlantic SRSR-4-25 Specifications:

• Finish: Flat black powder coat
• Material: Steel
• Mounting: Horizontal
• Rackrail Type: 10-32
• RoHS: Yes
• Greenguard: Yes
• Usable Depth: 16.75"
• Usable Height: 43.75"
• Capacity Weight: 250 lbs
• Dimensions: 19.14" D x 46.75" H x 19.13" W
• Primary Package Weight: 61 lbs
• Rack Units: 25
